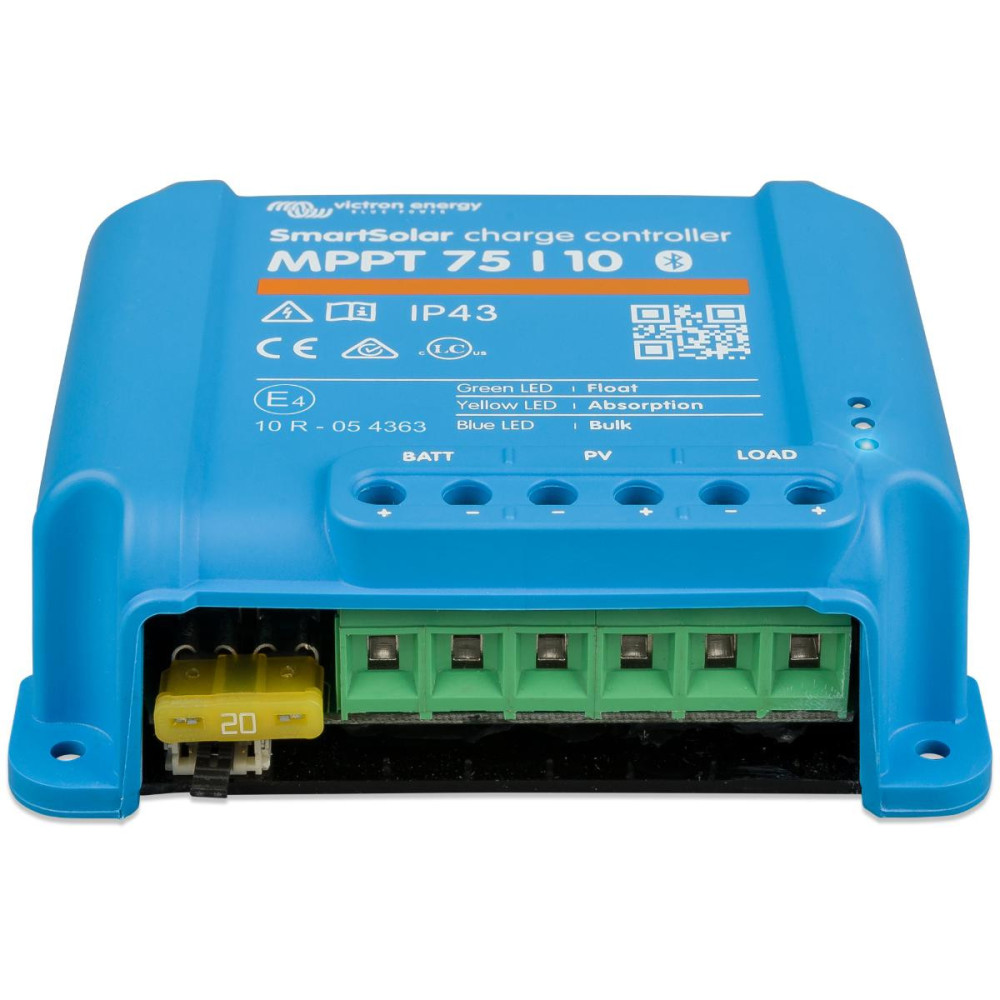

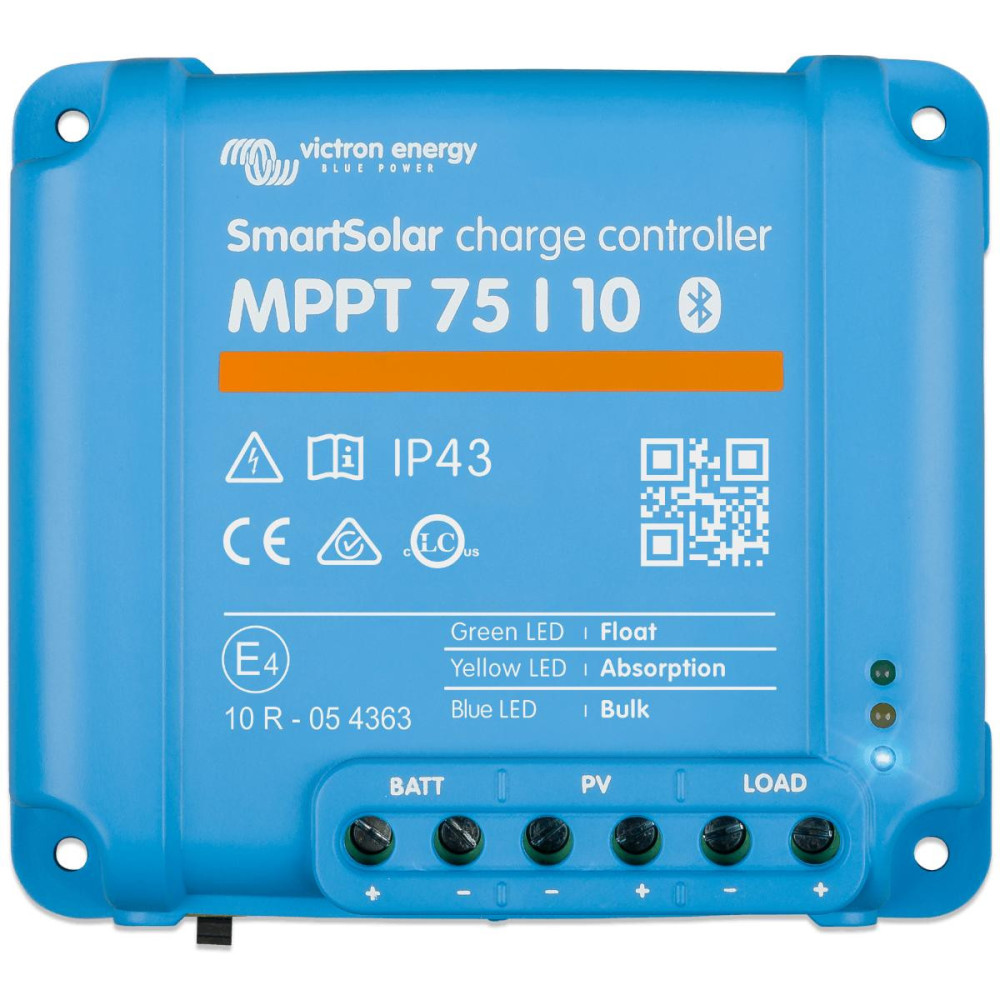

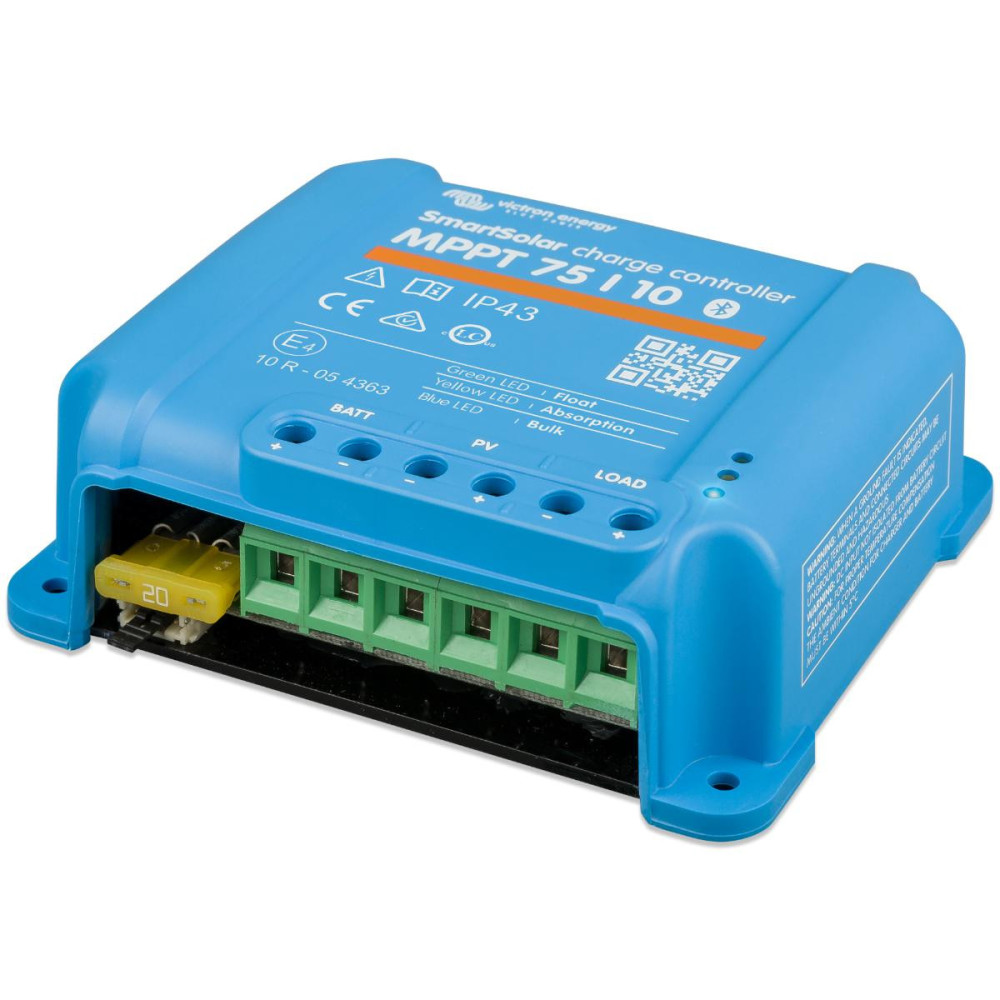

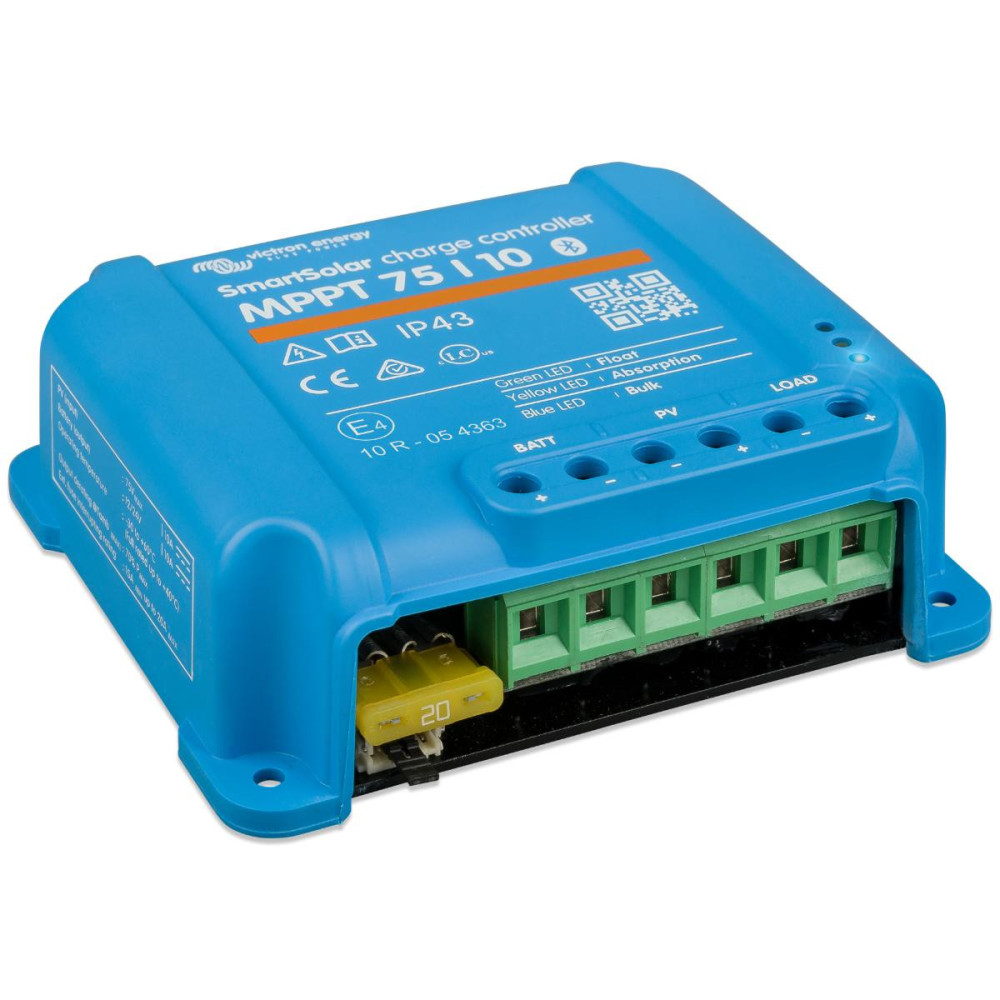

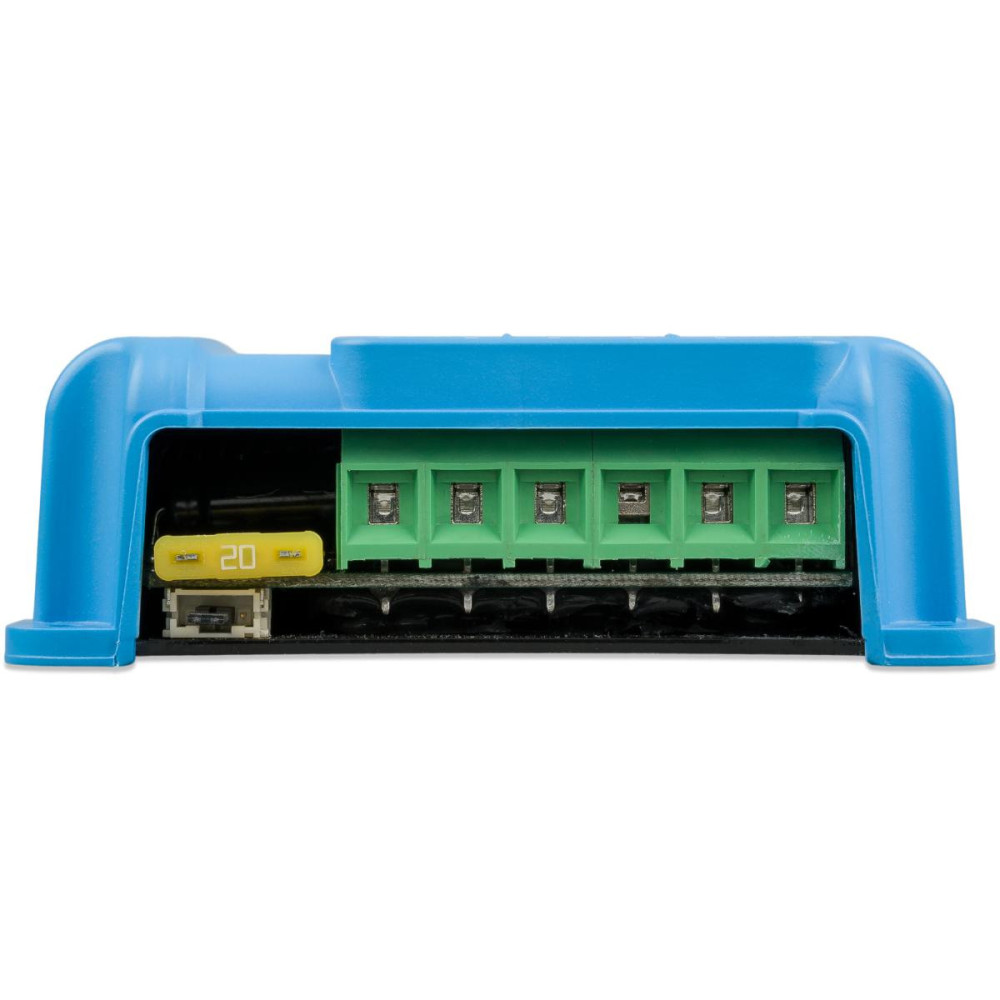

MPPT solar controller Victron Energy SmartSolar 75/10

The SmartSolar solar controller processes the energy from the solar panels and stores it in the batteries, maximizing solar gains, intelligently maintaining battery health and extending battery life. The SmartSolar solar controller can recharge even a severely discharged battery, as it can operate with battery voltages as low as 0 volts, provided the cells are not permanently sulfated or otherwise damaged.

Main features:

Ultra-fast MPPT technology:The controller constantly monitors the voltage and current from the solar panels and, thanks to MPPT technology, extracts maximum energy from them, which is particularly beneficial in variable solar radiation intensity. MPPT technology provides up to 30% higher energy gain compared to PWM solar controllers and up to 10% higher gain compared to slower MPPT controllers.

Remote monitoring and control:

If your installation is connected to the internet using a GX device, the VRM portal provides anytime, anywhere access to your devices.

Load output:

The intelligent Load Output feature prevents the batteries from discharging below their limits. You can configure the voltage at which SmartSolar disconnects the load, preventing excessive battery discharge. The BatteryLife feature keeps the battery healthy and extends its life.

Built-in Bluetooth:

With built-in Bluetooth, the SmartSolar solar controller can pair with your smartphone or other device via the VictronConnect app to set up, monitor, or update your system.

VE.Direct connector:

VE.Direct is used to connect to your GX, PC, or other devices.

Other features:

Natural passive cooling

automatic battery voltage detection

overheat protection and power reduction at high temperature

flexible charging algorithm

Day/night timing and dimming capability

internal temperature sensor compensates for absorption temperature and maintenance charging voltage

Optional external battery voltage and temperature sensing via Bluetooth

Smart Battery Sense or BMV-712 Smart Battery Monitor can be used to read the battery voltage and temperature of one or more SmartSolar controllers

Fully discharged battery recovery function

Initiates charging even if the battery is fully discharged

reconnects to a fully discharged Li-ion battery with integrated disconnect function

Specifications:

Battery voltage (automatic selection): 12/24 V

charging current: 10 A

PV max: 12V/145W, 24V/290W

PV max no-load voltage: 75 V

Maximum efficiency: 98%

operating temperature: -30 to +60 °C

Terminals: 6 mm² / AWG10

Protection class: IP43 (electronic components), IP22 (connectors)

Dimensions: 100 x 113 x 40 mm

weight: 0.5 kg

Warning:

Victron Energy MPPT controllers are not allowed to be used in combination with PV panel optimizers. Damage to both MPPT controllers and optimizers may occur in use and may not be recognized as a valid claim.

Further informatione and other technical data can be found in the manual and datasheet in the "Downloads" section.

Victron Energy products are guaranteed by the manufacturer for 5 years.
