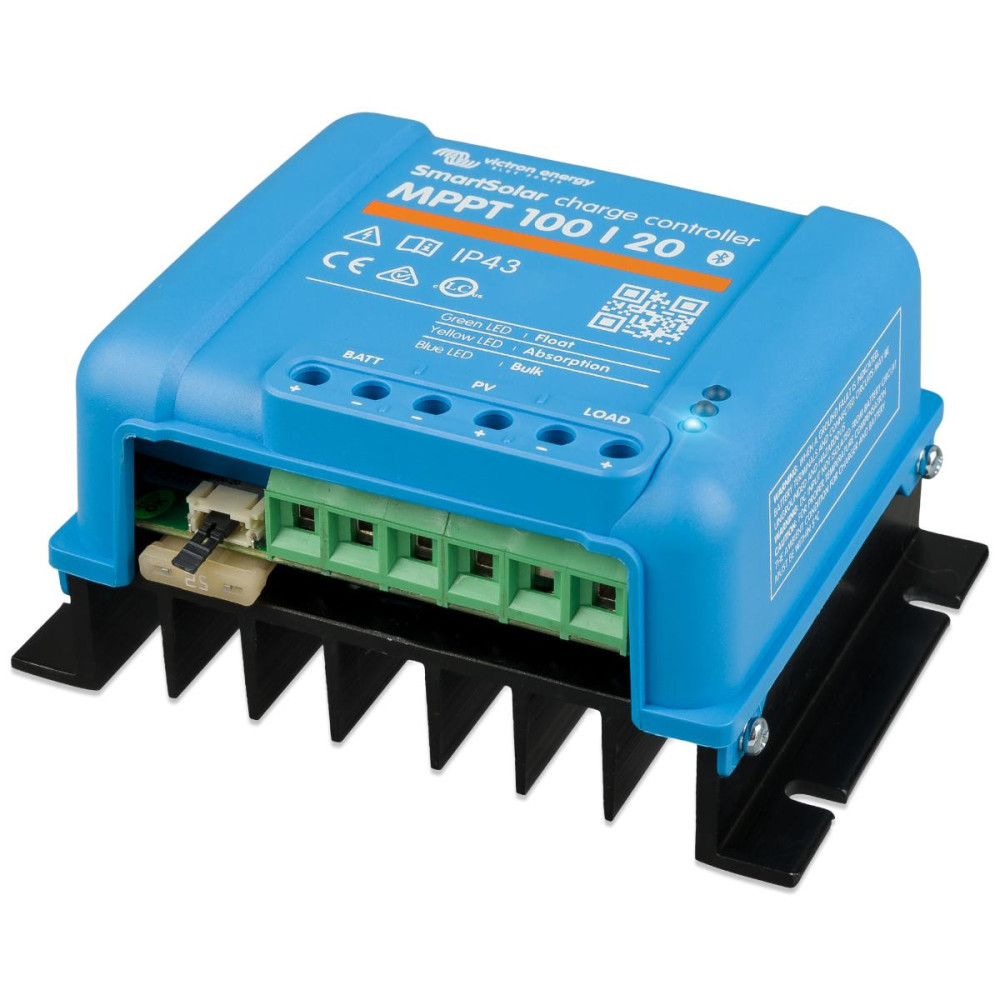

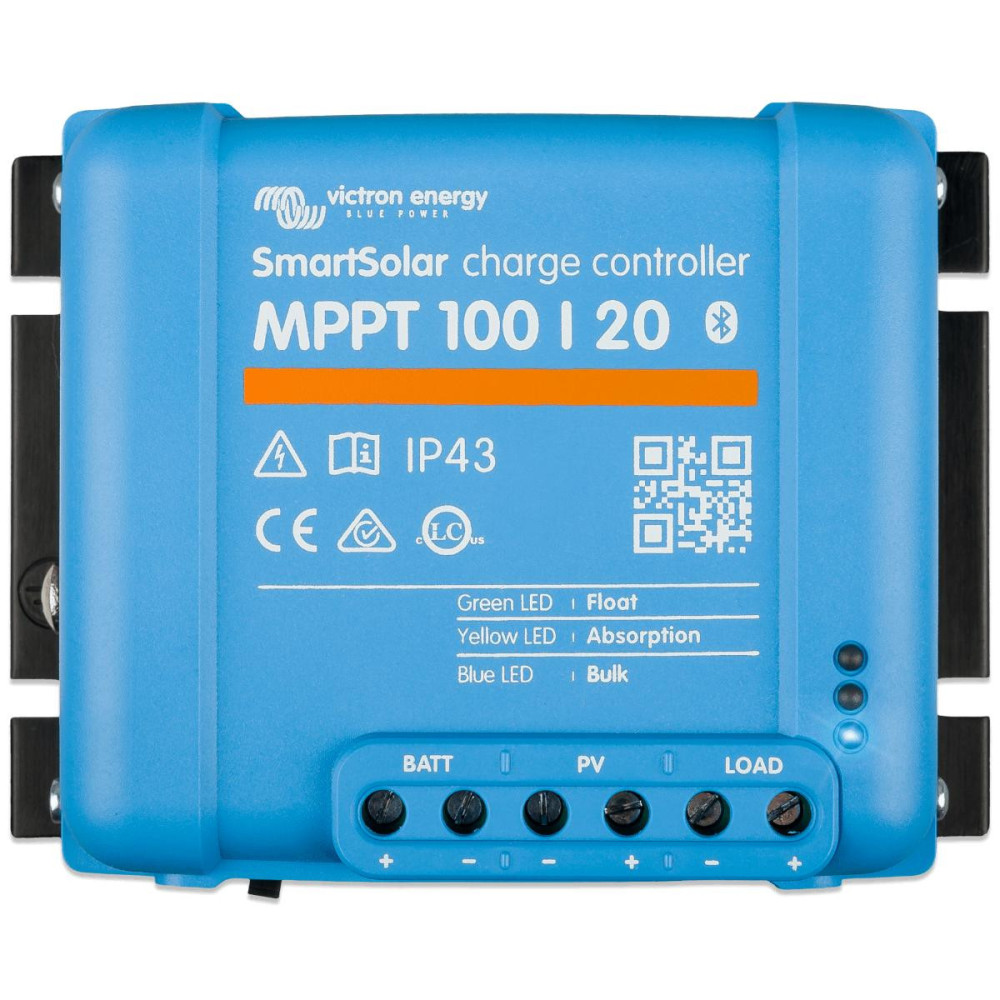

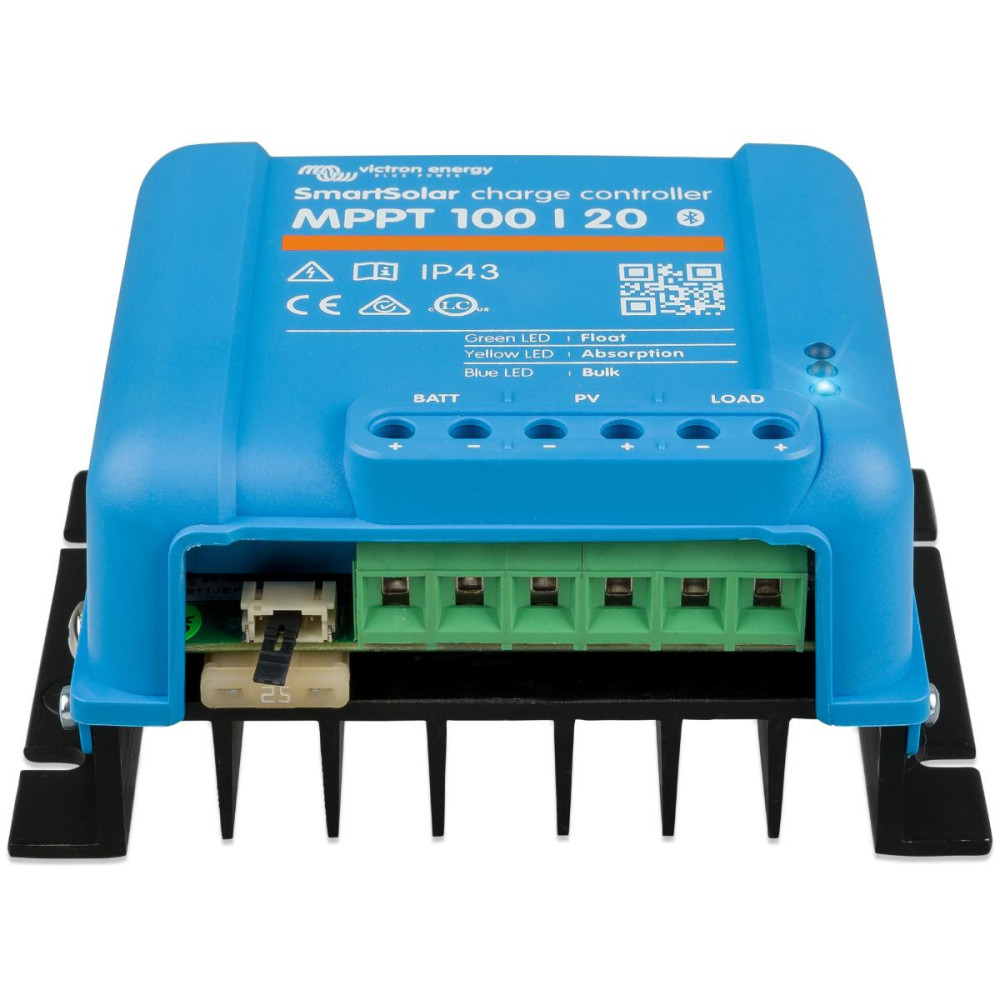

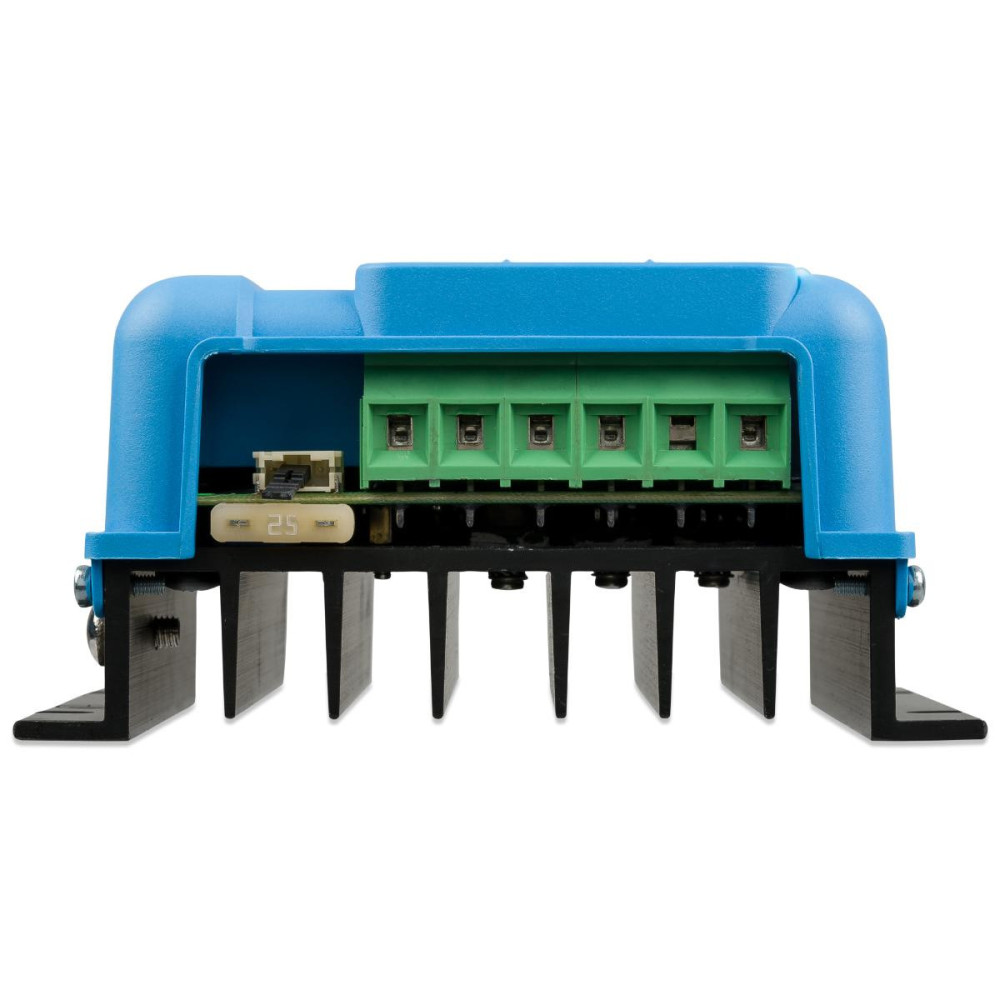

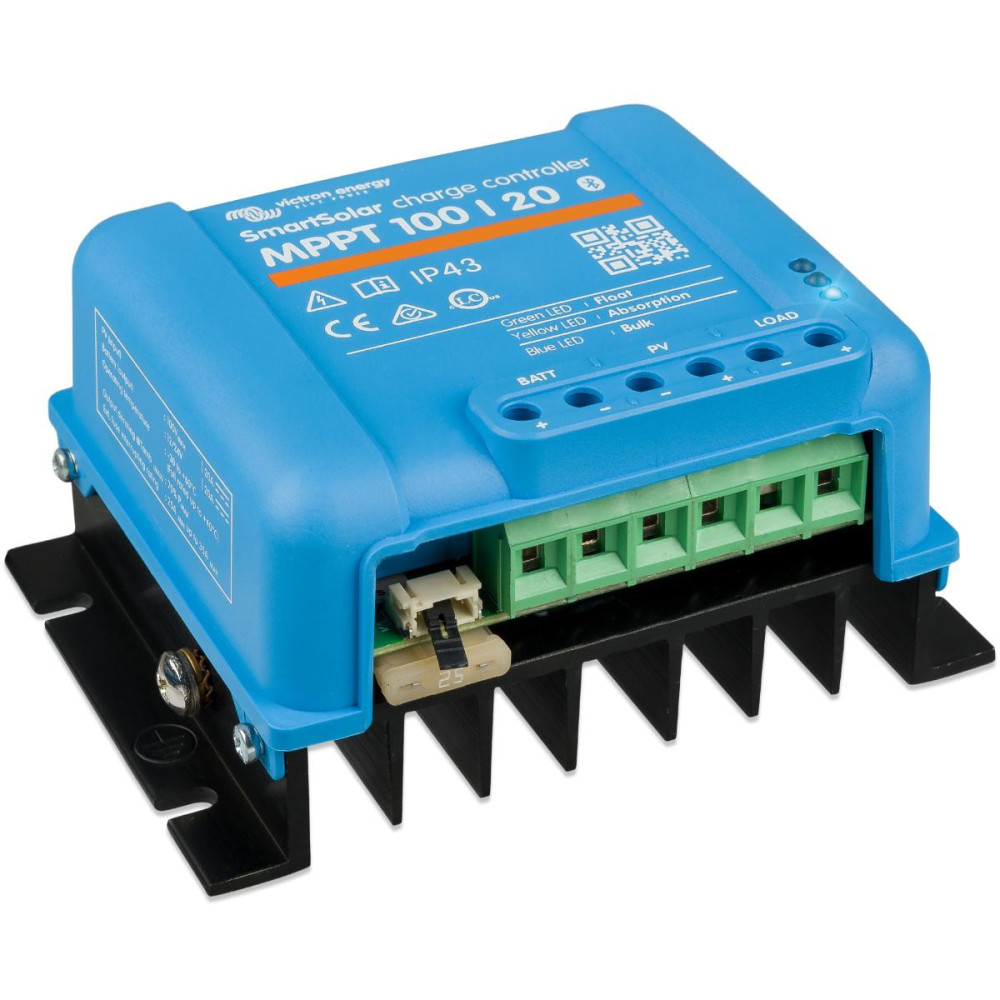

MPPT solar controller Victron Energy SmartSolar 100/20

The SmartSolar solar controller processes the energy from the solar panels and stores it in the batteries, maximizing solar gains, intelligently maintaining battery health and extending battery life. The SmartSolar solar controller can recharge even a severely discharged battery, as it can operate with battery voltages as low as 0 volts, provided the cells are not permanently sulfated or otherwise damaged.

Main features:

Ultra-fast MPPT technology:The controller constantly monitors the voltage and current from the solar panels and, thanks to MPPT technology, extracts maximum energy from them, which is particularly beneficial in variable solar radiation intensity. MPPT technology provides up to 30% higher energy gain compared to PWM solar controllers and up to 10% higher gain compared to slower MPPT controllers.

Remote monitoring and control:

If your installation is connected to the internet using a GX device, the VRM portal provides anytime, anywhere access to your devices.

Load output:

The intelligent Load Output feature prevents batteries from discharging below their limits. You can configure the voltage at which BlueSolar disconnects the load, preventing excessive battery discharge. The BatteryLife feature keeps the battery healthy and extends its life.

VE.Direct connector:

VE.Direct is used to connect to GX, PC or other devices.

Other Features:

Natural passive cooling.

Automatic battery voltage detection

Overheating protection and power reduction at high temperature

flexible charging algorithm

Day/night timing and dimming capability

Internal temperature sensor compensates for absorption temperature and maintenance charging voltage

Smart Battery Sense or BMV-712 Smart Battery Monitor can be used to read the battery voltage and temperature of one or more BlueSolar regulators

Fully discharged battery recovery function

Initiates charging even if the battery is fully discharged

reconnects to a fully discharged Li-ion battery with integrated disconnect function

Specifications:

Battery voltage (automatic selection): 12/24/48 V

charging current: 20 A

PV max: 12V/290W, 24V/580W, 48V/1160W

PV max no-load voltage: 100 V

Maximum efficiency: 98%

operating temperature: -30 to +60 °C

Terminals: 6 mm² / AWG10

Protection class: IP43 (electronic components), IP22 (connectors)

Dimensions: 100 x 131 x 60 mm

weight: 0.65 kg

Warning:

Victron Energy MPPT controllers are not allowed to be used in combination with PV panel optimizers. Damage to both MPPT controllers and optimizers may occur during use and may not be accepted as a valid claim.

For further information and other technical data, please refer to the manual and datasheet in the "Downloads" section.

Victron Energy products are warranted by the manufacturer for 5 years.
