Victron Energy EV Charging station
High-performance EV charging station with a maximum of 22 kW AC in three-phase mode or 7.3 kW in single-phase mode.
Secure payments
Pay securely and quickly with PayPal and GoPay.
Product delivery
We offer a wide selection of delivery methods, including personal pickup.
Shipment insurance
Every dispatched parcel is insured against damage.
High-performance EV charging station
The EV charging station can operate in three-phase and single-phase. It provides a maximum of 22 kW AC in three-phase mode or 7.3 kW in single-phase mode.
Wi-Fi communication
Wi-Fi: 802.11 b/g/n for configuration and monitoring.
The internal Wi-Fi module can be configured in access point mode or station mode for initial setup and monitoring.

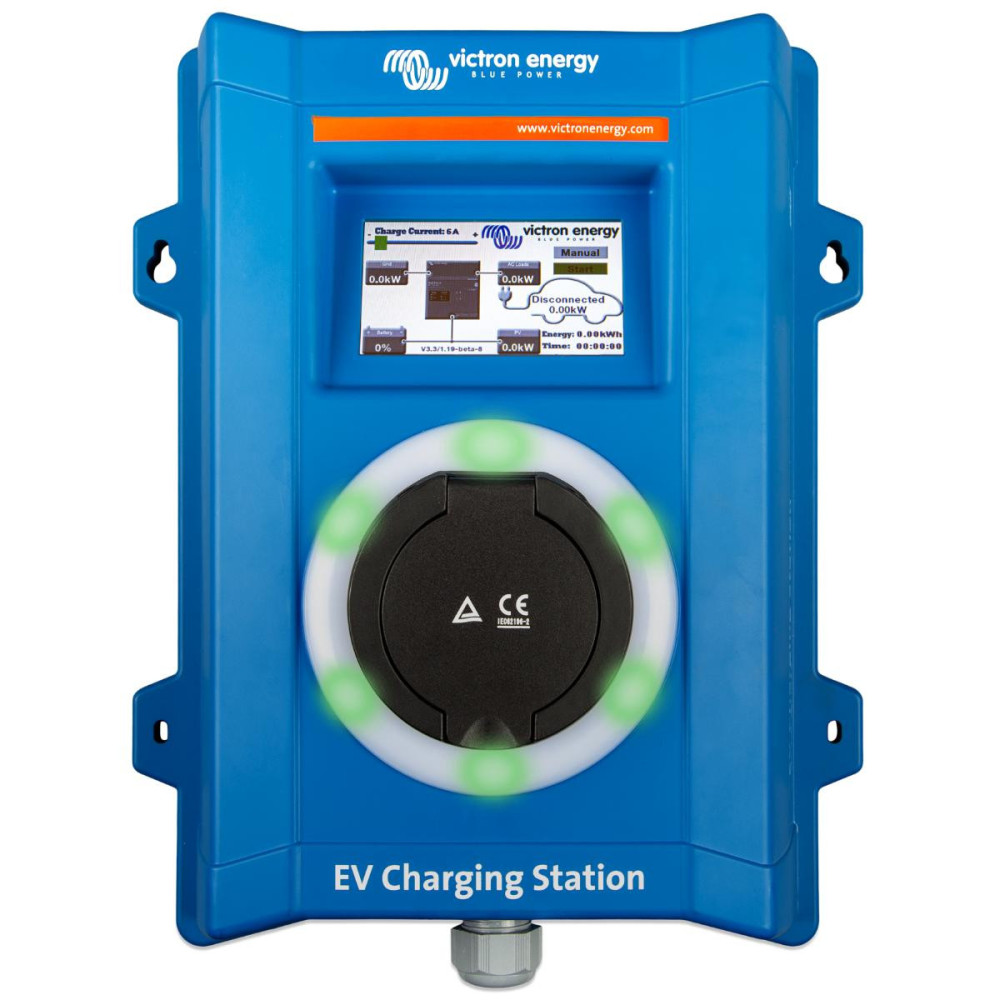

LCD touch screen
Includes a 4.3-inch LCD touch screen for monitoring and control.
Light ring for quick device status display
Fully programmable RGB light ring around the charging port for quick device status.
From the web interface, it can be programmed to display different light effects based on the current status (disconnected, charged, etc.). The goal is to help the user see the current status from a distance.
Detects when excess power is available and uses only this power to charge the vehicle.
Integration with GX devices
The EV charging station can be configured and monitored from the GX screen and remote console.
Integration with VRM
Several options are available on the VRM portal: real-time reports, custom reports for configurable time periods, advanced features such as remote firmware updates.
For more information, please refer to the attached datasheet or online manual.
The EV charging station can operate in three-phase and single-phase. It provides a maximum of 22 kW AC in three-phase mode or 7.3 kW in single-phase mode.
Wi-Fi communication
Wi-Fi: 802.11 b/g/n for configuration and monitoring.
The internal Wi-Fi module can be configured in access point mode or station mode for initial setup and monitoring.
LCD touch screen
Includes a 4.3-inch LCD touch screen for monitoring and control.
Light ring for quick device status display
Fully programmable RGB light ring around the charging port for quick device status.
From the web interface, it can be programmed to display different light effects based on the current status (disconnected, charged, etc.). The goal is to help the user see the current status from a distance.
Three working modes are available:
- Manual mode allows configurable output current between 6-32 A. Charging power can be controlled in different ways: via the web interface, from the GX and VRM devices and via VictronConnect. It allows you to manually start or stop the charging process when the vehicle is connected to the charging station.
- Automatic mode to ensure maximum efficiency of the PV system. Detects when excess power is available and uses only that power to charge the vehicle.
- Scheduled mode to allow automatic charging at custom time intervals. The scheduler allows charging at different time intervals, for example at certain times of the night when grid power is cheaper. In addition to the start and end time, various parameters such as charging current and interval can be defined.
Detects when excess power is available and uses only this power to charge the vehicle.
Integration with GX devices
The EV charging station can be configured and monitored from the GX screen and remote console.
Integration with VRM
Several options are available on the VRM portal: real-time reports, custom reports for configurable time periods, advanced features such as remote firmware updates.
For more information, please refer to the attached datasheet or online manual.
4946
Data sheet
- Warranty
- 60 měsíců
- Weight
- 3kg
Specific References
- EAN13
- 8719076051305
O společnosti Victron Energy
Společnost Victron Energy B.V. byla založena v roce 1975 v nizozemském Almere a od té doby se stala světovým lídrem v oblasti energetických systémů pro námořní, mobilní, průmyslové a obnovitelné aplikace. Díky neustálým inovacím a důrazu na kvalitu poskytuje spolehlivá řešení pro nezávislé a obnovitelné zdroje energie.
Produkty a technologie
Victron Energy nabízí širokou škálu produktů pro efektivní řízení a ukládání energie:
- Měniče a střídače – Špičkové systémy pro konverzi stejnosměrného proudu (DC) na střídavý proud (AC) a naopak, vhodné pro různé aplikace.
- Bateriové nabíječky – Efektivní nabíjecí systémy zajišťující dlouhou životnost baterií a jejich spolehlivý provoz.
- Solární MPPT regulátory – Pokročilé technologie pro maximalizaci výtěžku ze solárních panelů a optimalizaci solárních systémů.
- Monitorovací a kontrolní systémy – Inteligentní nástroje pro sledování a řízení energetických systémů, umožňující vzdálený dohled a optimalizaci výkonu.
Globální působnost a zákaznická podpora
Victron Energy má rozsáhlou síť distributorů a partnerů po celém světě, což umožňuje poskytovat odborné poradenství a lokální podporu. Produkty této značky jsou dostupné ve více než 100 zemích, což zajišťuje spolehlivá energetická řešení všude tam, kde jsou potřeba.
Kvalita a inovace
Společnost klade důraz na kvalitu a neustálý vývoj nových technologií, což ji řadí mezi přední hráče v oblasti nezávislých energetických systémů. Produkty Victron Energy splňují nejvyšší standardy spolehlivosti a výkonu a jsou využívány v náročných podmínkách po celém světě.
Hlavní kancelář: De Paal 35, 1351 JG Almere, Nizozemsko. Telefon: +31 (0)36 5359700 E-mail: sales@victronenergy.com
