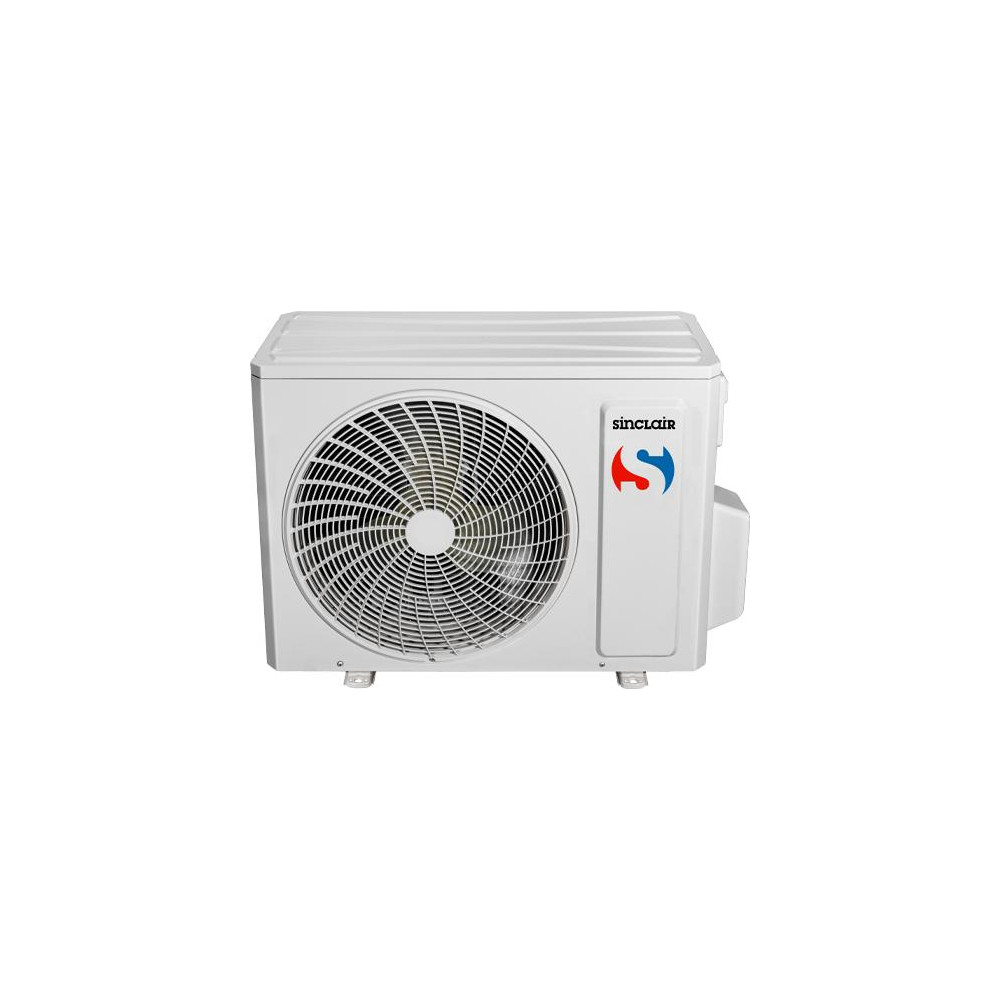

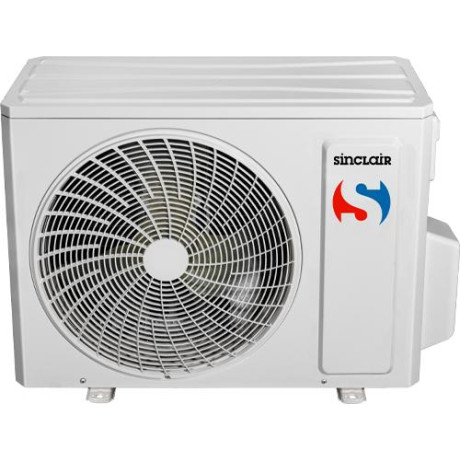

Sinclair Ray outdoor unit SOH-18BIR

Data sheet

Power input (Cooling/Heating)

1,36 / 1,34kW

Dehumidification performance (-)

1,8l / h

Refrigerant / quantity / eq. CO2 (-)

R32 / 0,75 / 0,51type / kg / t

Operating temperature range (Cooling)

-15 ~ 43°C

Operating temperature range (Heating)

- 15 ~ 24°C

Performance (Cooling/Heating)

4,6 (1,0–5,3) / 5,2 (1,0–5,6)kW

Power supply (To outdoor unit)

220 - 240 / 1 / 50V / Ph / Hz

Max. power consumption (Cooling / Heating)

1,9kW

Current (Cooling/Heating)

5,9 / 5,8A

Max. current (Cooling/Heating)

9,0A

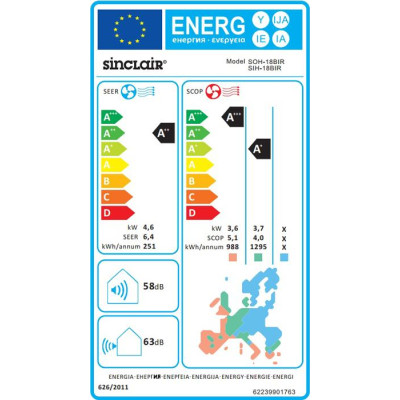

Energy class (Cooling/Heating (A, W, C) *)

A++ / (A+ / A+++ / -)-

Pdesign (Cooling / Heating)

4,6 / 3,7kW

SEER / SCOP (-)

6,4 / 4,0W / W

Annual electricity consumption (Cooling / Heating)

264 / 1260kWh

Air flow (Outdoor unit)

1950m3 / h

Sound pressure level at 1 m (Outdoor unit)

53dB(A)

Sound power level (Outdoor unit)

63dB(A)

Refrigerant top-up (-)

16g / m

Piping - Liquid (Diameter)

1/4 / 6inch / mm

Pipes - gas (Diameter)

3/8 / 9,5inch / mm

Precharged with refrigerant for the length of the pipe (-)

5m

Min. / Max. pipe length (-)

3 / 25m

Max. elevation (-)

10m

Dimensions (W x H x D) (Outdoor unit)

732 × 555 × 330mm

Package dimensions (W x H x D) (Outdoor unit)

794 x 376 x 615mm

Net/Gross Weight (Outdoor Unit)

26,5 / 29,0kg
