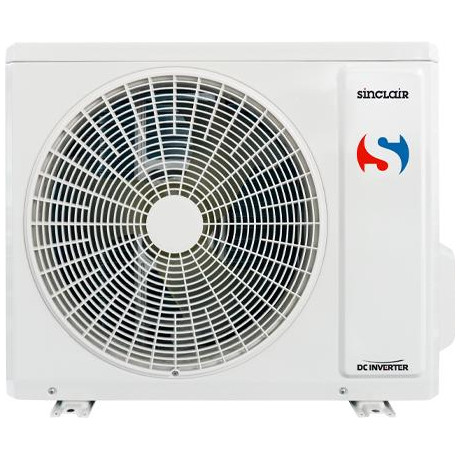

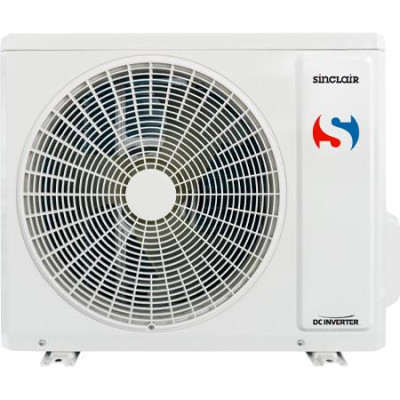

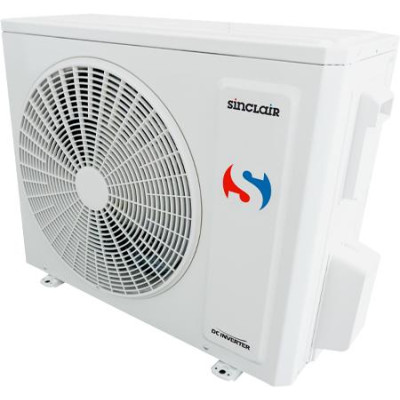

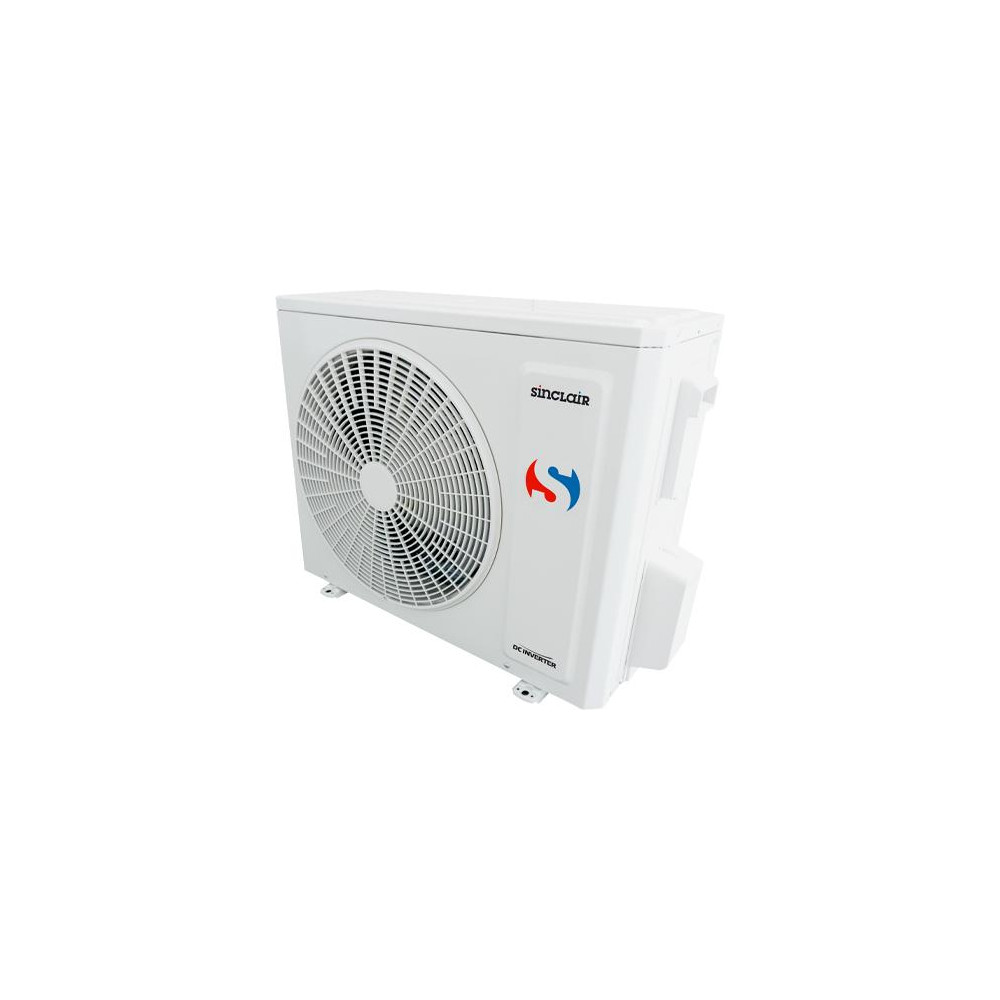

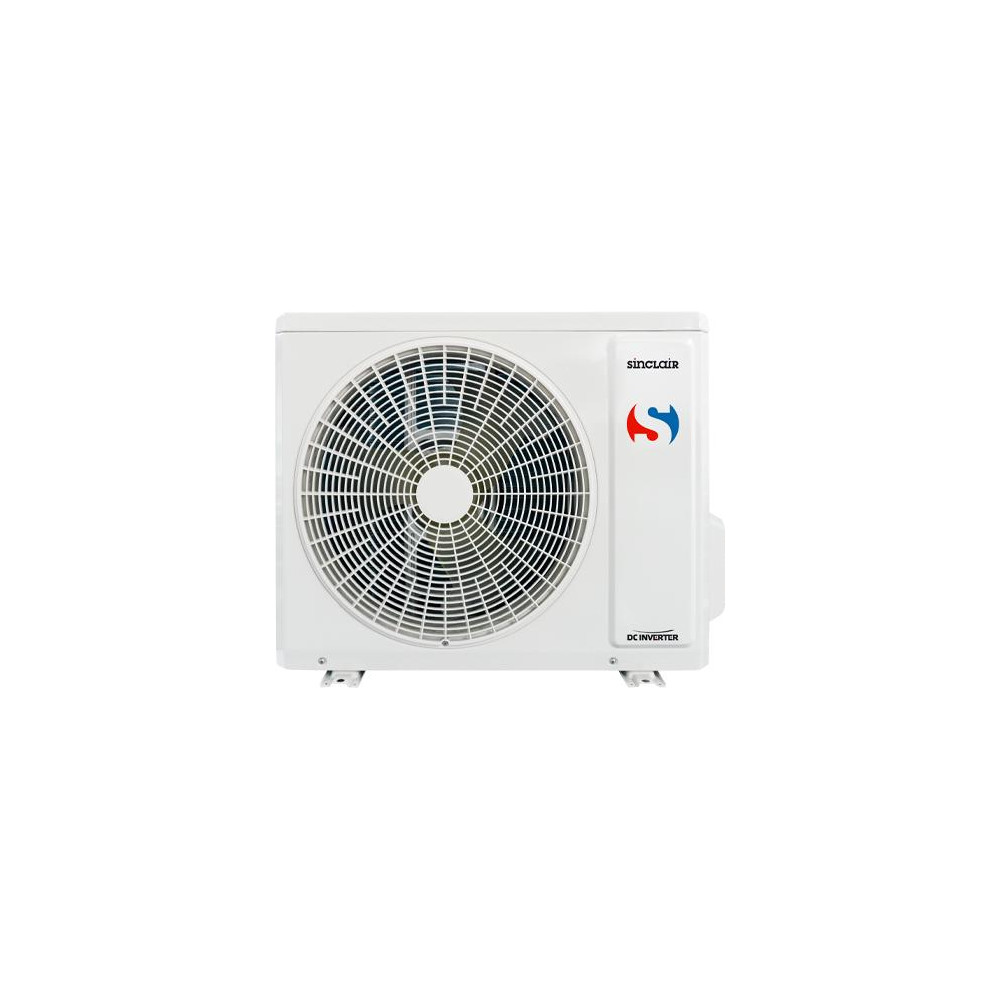

Sinclair Marvin outdoor unit SOH-24BIM

Data sheet

Power input (Cooling/Heating)

2,03 / 1,87kW

Dehumidification performance (-)

2,4l / h

Refrigerant / quantity / eq. CO2 (-)

R32 / 1,40 / 0,94type / kg / t

Operating temperature range (Cooling)

-15 ~ 50°C

Operating temperature range (Heating)

- 25 ~ 30°C

Performance (Cooling/Heating)

7,1 (1,8–7,8) / 7,3 (1,5–9,4)kW

Power supply (To outdoor unit)

220 - 240 / 1 / 50V / Ph / Hz

Max. power consumption (Cooling / Heating)

3,5kW

Current (Cooling/Heating)

9,0 / 9,3A

Max. current (Cooling/Heating)

14,0A

Pdesign (Cooling / Heating)

7,1 / 5,6kW

SEER / SCOP (-)

7,0 / 4,3W / W

Air flow (Outdoor unit)

3600m3 / h

Sound pressure level at 1 m (Outdoor unit)

59dB(A)

Sound power level (Outdoor unit)

70dB(A)

Refrigerant top-up (-)

40g / m

Piping - Liquid (Diameter)

1/4 / 6inch / mm

Pipes - gas (Diameter)

5/8 / 16inch / mm

Precharged with refrigerant for the length of the pipe (-)

5m

Min. / Max. pipe length (-)

3 / 25m

Max. elevation (-)

10m

Dimensions (W x H x D) (Outdoor unit)

958 × 660 × 402mm

Package dimensions (W x H x D) (Outdoor unit)

1032 × 456 × 737mm

Net/Gross Weight (Outdoor Unit)

45,0 / 49,5kg
