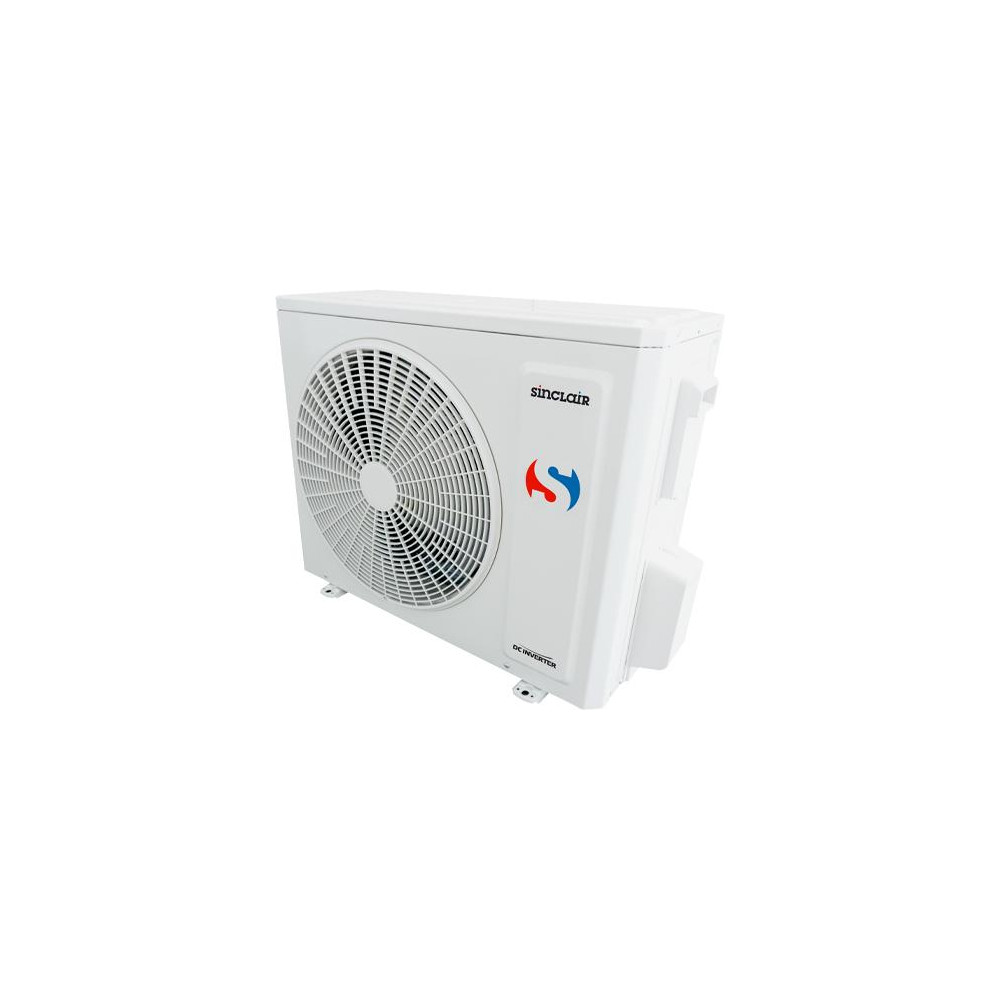

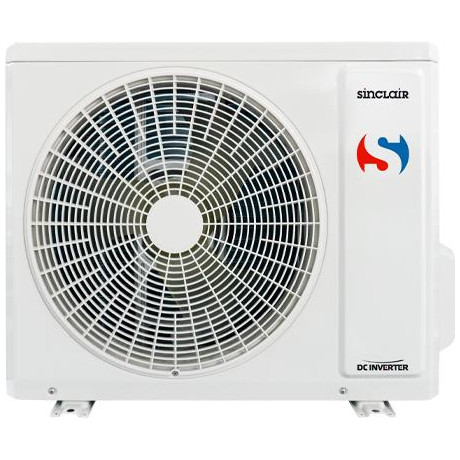

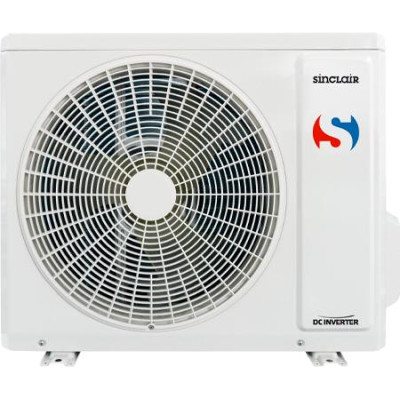

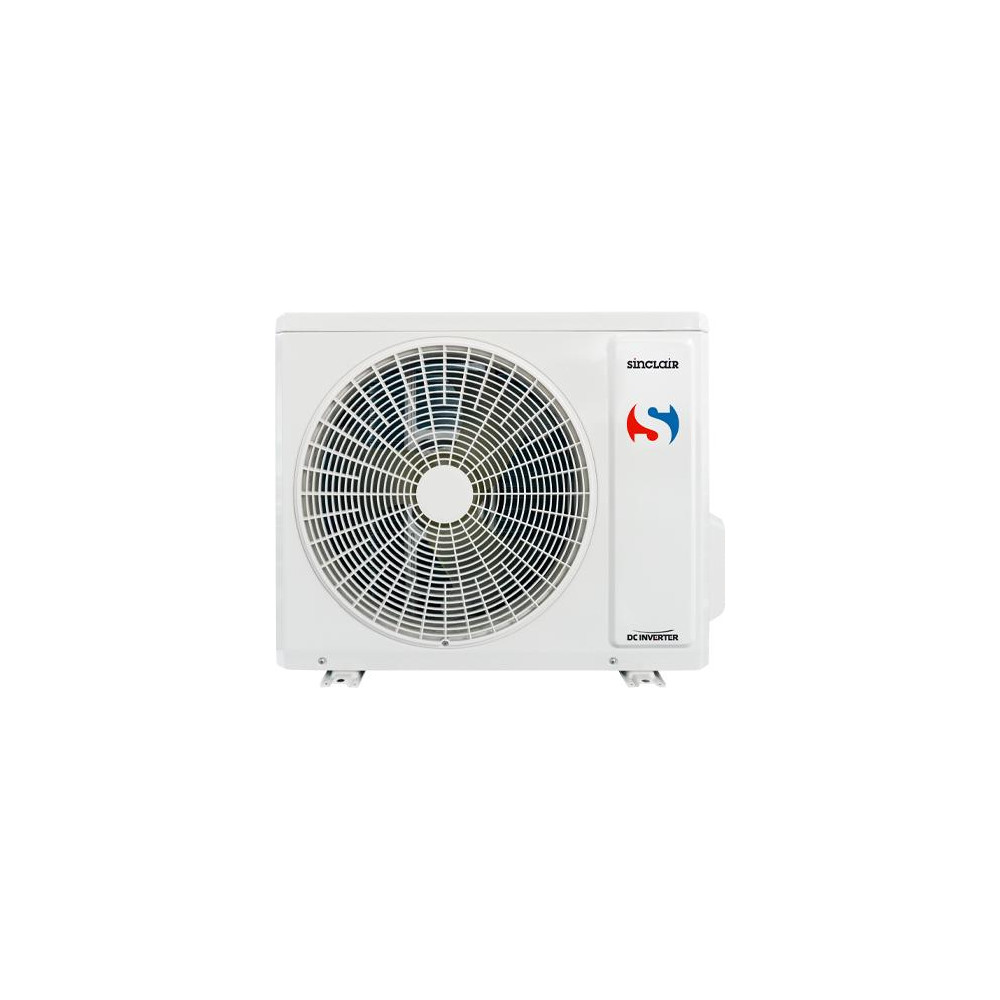

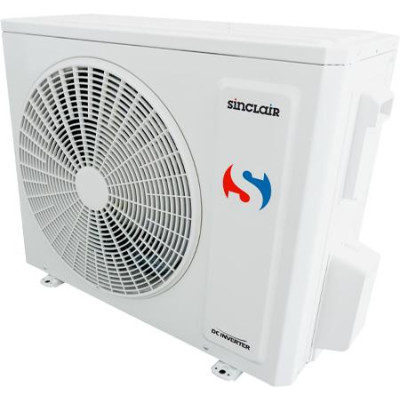

Sinclair Keyon outdoor unit SOH-12BIK2

Data sheet

Power input (Cooling/Heating)

0,93 / 0,87kW

Dehumidification performance (-)

1,4l / h

Refrigerant / quantity / eq. CO2 (-)

R32 / 0,57 / 0,38type / kg / t

Operating temperature range (Cooling)

-15 ~ 43°C

Operating temperature range (Heating)

- 15 ~ 24°C

Performance (Cooling/Heating)

3,2 (0,9–3,7) / 3,4 (0,9–4,1)kW

Power supply (To outdoor unit)

220 - 240 / 1 / 50V / Ph / Hz

Max. power consumption (Cooling / Heating)

1,5kW

Current (Cooling/Heating)

4,1 / 3,9A

Max. current (Cooling/Heating)

7,5A

Energy class (Cooling/Heating (A, W, C) *)

A++ / (A+ / A+++ / -)-

Pdesign (Cooling / Heating)

3,2 / 2,7kW

SEER / SCOP (-)

6,5 / 4,1W / W

Annual electricity consumption (Cooling / Heating)

172 / 922kWh

Air flow (Outdoor unit)

1950m3 / h

Sound pressure level at 1 m (Outdoor unit)

52dB(A)

Sound power level (Outdoor unit)

63dB(A)

Refrigerant top-up (-)

16g / m

Piping - Liquid (Diameter)

1/4 / 6inch / mm

Pipes - gas (Diameter)

3/8 / 9,5inch / mm

Precharged with refrigerant for the length of the pipe (-)

5m

Min. / Max. pipe length (-)

3 / 20m

Max. elevation (-)

10m

Dimensions (W x H x D) (Outdoor unit)

732 x 550 x 330mm

Package dimensions (W x H x D) (Outdoor unit)

794 × 615 × 376mm

Net/Gross Weight (Outdoor Unit)

25,0 / 27,5kg
