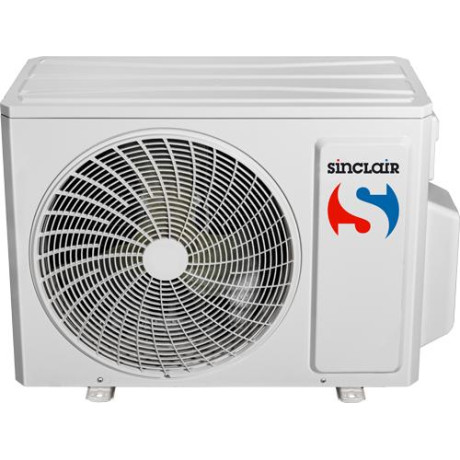

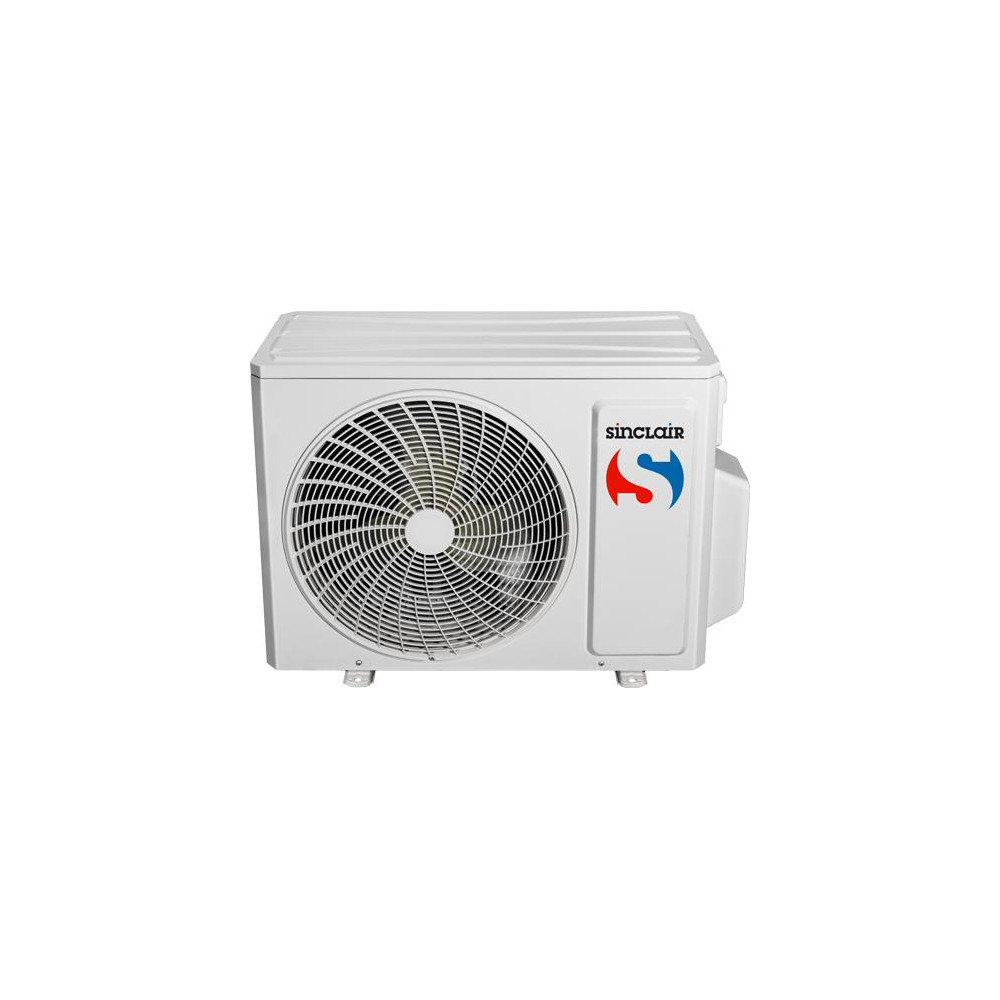

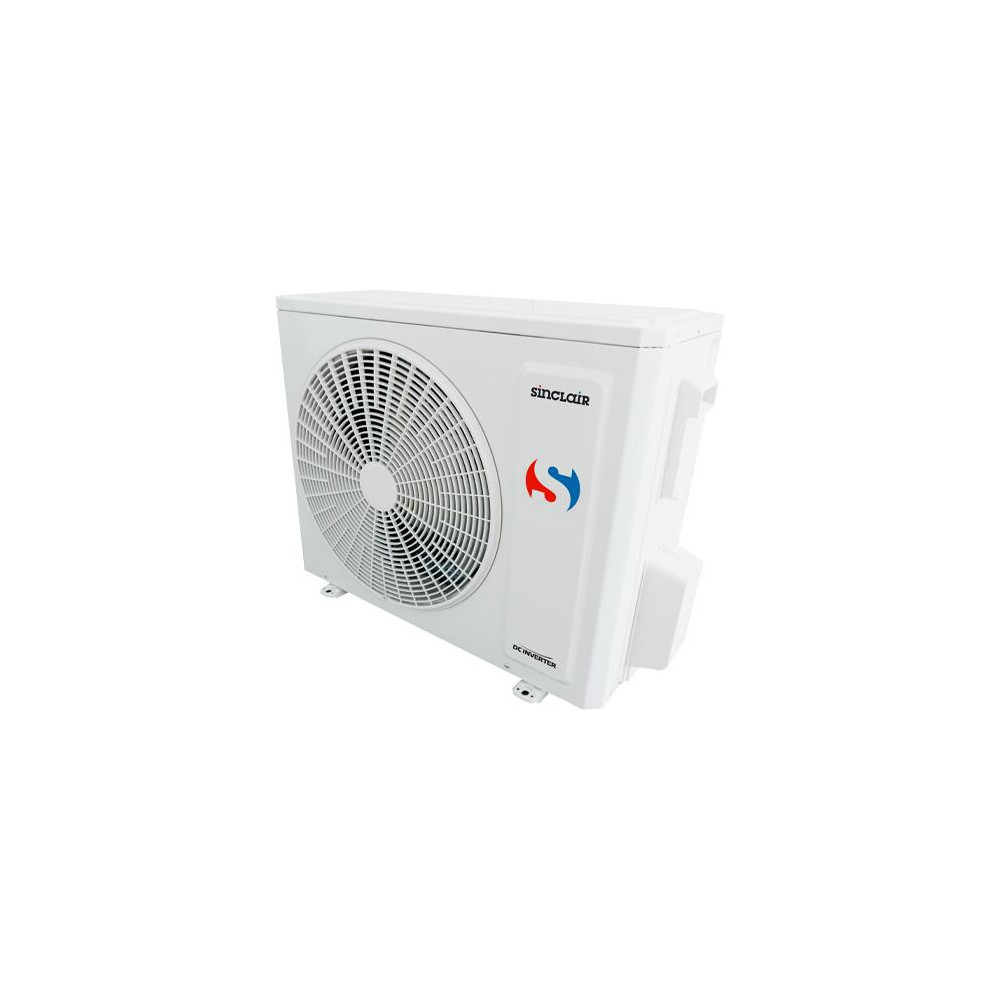

Sinclair Keyon outdoor unit SOH-24BIK

Data sheet

Power input (Cooling/Heating)

1,77 / 1,65kW

Dehumidification performance (-)

1,8l / h

Refrigerant / quantity / eq. CO2 (-)

R32 / 1,30 / 0,88type / kg / t

Operating temperature range (Cooling)

-15 ~ 43°C

Operating temperature range (Heating)

- 15 ~ 24°C

Performance (Cooling/Heating)

6,2 (1,8–6,4) / 6,5 (1,6–6,6)kW

Power supply (To outdoor unit)

220 - 240 / 1 / 50V / Ph / Hz

Max. power consumption (Cooling / Heating)

2,2kW

Current (Cooling/Heating)

7,9 / 7,3A

Max. current (Cooling/Heating)

10,0A

Energy class (Cooling/Heating (A, W, C) *)

A++ / (A+, A+++, -)-

Pdesign (Cooling / Heating)

6,2 / 4,7kW

SEER / SCOP (-)

6,8 / 4,0W / W

Annual electricity consumption (Cooling / Heating)

319 / 1645kWh

Air flow (Outdoor unit)

2800m3 / h

Sound pressure level at 1 m (Outdoor unit)

58dB(A)

Sound power level (Outdoor unit)

67dB(A)

Refrigerant top-up (-)

16g / m

Piping - Liquid (Diameter)

1/4 / 6inch / mm

Pipes - gas (Diameter)

1/2 / 12inch / mm

Precharged with refrigerant for the length of the pipe (-)

5m

Min. / Max. pipe length (-)

3 / 25m

Max. elevation (-)

10m

Dimensions (W x H x D) (Outdoor unit)

873 x 555 x 376mm

Package dimensions (W x H x D) (Outdoor unit)

951 x 620 x 431mm

Net/Gross Weight (Outdoor Unit)

36,5 / 39,5kg
