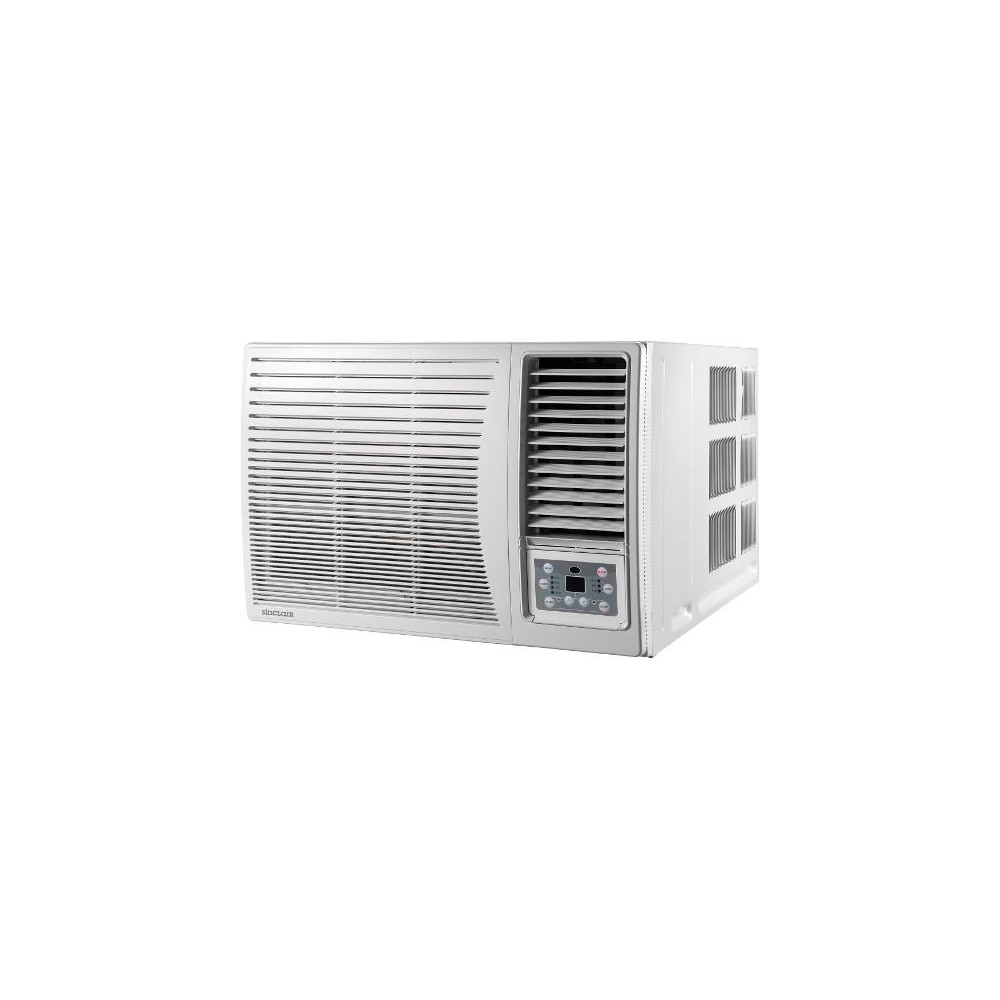

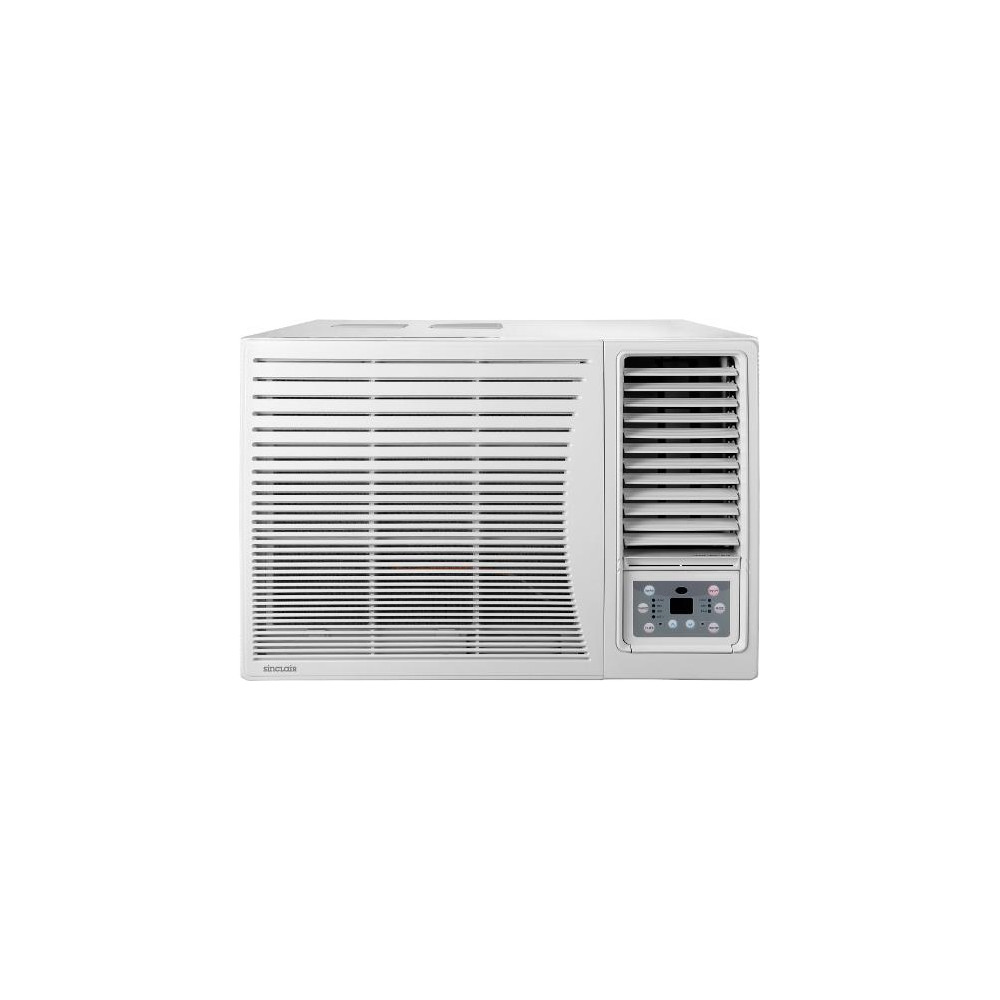

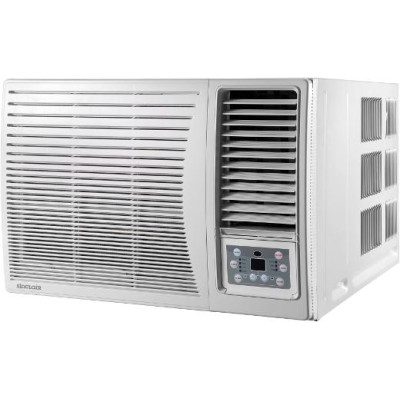

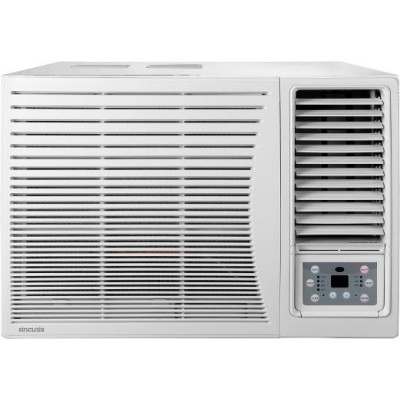

Sinclair window air conditioner ASW-12BI

Data sheet

Power supply (-)

220 - 240 / 1 / 50V / Ph / Hz

Package dimensions ((w x h x d))

739 x 505 x 793mm

Package volume (-)

0,296m3

Dehumidification performance (-)

1,6l / h

Refrigerant / quantity / eq. CO2 (-)

R32 / 0,63 / 0,43type / kg / t

Operating temperature range (Cooling)

18 ~ 43°C

Max. power consumption (Cooling / Heating)

1,3kW

Power (Cooling)

3700W

Optimal room size (Optimal room size)

16 - 24m2

Power input (Cooling)

1,030kW

Current (Cooling)

4,6A

Max. current (-)

6,5A

SEER (-)

5,4-

Energy class (-)

A-

Air flow (Interior)

480 / 430 / 380m3 / h

Air flow (Exterior)

1200m3 / h

Sound pressure level at 1 m (Interior)

50 / 48 / 46dB(A)

Sound pressure level at 1 m (Exterior)

58 / 56 /54dB(A)

Acoustic performance (Interior)

59 / 57 / 55dB(A)

Acoustic Performance (Exterior)

65 / 63 / 61dB(A)

Dimensions ((w x h x d))

660 x 428 x 700mm

Net/Gross Weight (Net/Gross Weight)

50,0 / 54,0kg
