Island solar system 60Wp EPever

Optimally designed solar system for places without electricity.

It is one of the most frequently sold and used solar systems in our range.

We recommend it to all customers who do not have special and non-standard requirements.

The system is designed with proven EPever components .

This system works with a system voltage of 12 V.

EPever 10A 12/24V solar controller with LCD display VS series takes care of the completely unattended operation of this system, it has a clear integrated LCD display.

It provides you with interesting information about the operation of the entire system.

Directly on the front of the solar controller you will also find two USB outputs suitable for charging mobile phones, for example. After installation, you select one of four preset battery types: AGM, GEL, liquid or LiFePO4

How much energy can this solar system produce?

Average daily energy production:

• in January, about 60 Wh/day
• in March approx. 150 Wh/day
• in May approx. 222 Wh/day
• in June approx. 222 Wh/day
• in September approx. 180 Wh/day
• in November approx. 72 Wh/day

For the whole year the system can produce about 58 kWh.

How to choose the right solar system?

Multiply the consumption in Watts of the individual devices powered by the solar system by the number of hours of expected operation per day. The result will be the total Wh (watt-hours) required per day. If this figure is lower than the above values, the system performance is sufficient, otherwise a more powerful system should be chosen. For each system you will find the average number of Wh that the selected solar system will produce on average per day. Of course, you need to take into account whether the system is used every day or only on weekends or seasonally. If you are not sure which system to choose, please contact us and we will be happy to advise you.

The solar system kit does not include the interconnecting wiring for connecting the controller to the panel and battery and the clamps or lugs for connecting to the battery, which are the components required to complete the system functionally. If you are interested in these components, based on the length of the cables, we will recommend its appropriate cross-section and other components if necessary. By using a sufficient cross-section, we will avoid possible unnecessary losses due to high currents in the system.

WARNING: All installations of photovoltaic systems must only be carried out by a person with a professional electrical qualification and installation authorisation. Unprofessional installation may result in damage to health or property and may also be a factor in any claims.

If any component of the solar system does not suit your needs, we will gladly replace it with another or remove it completely with a corresponding price adjustment. Please contact us for this modification or indicate the fact in the notes in the order.

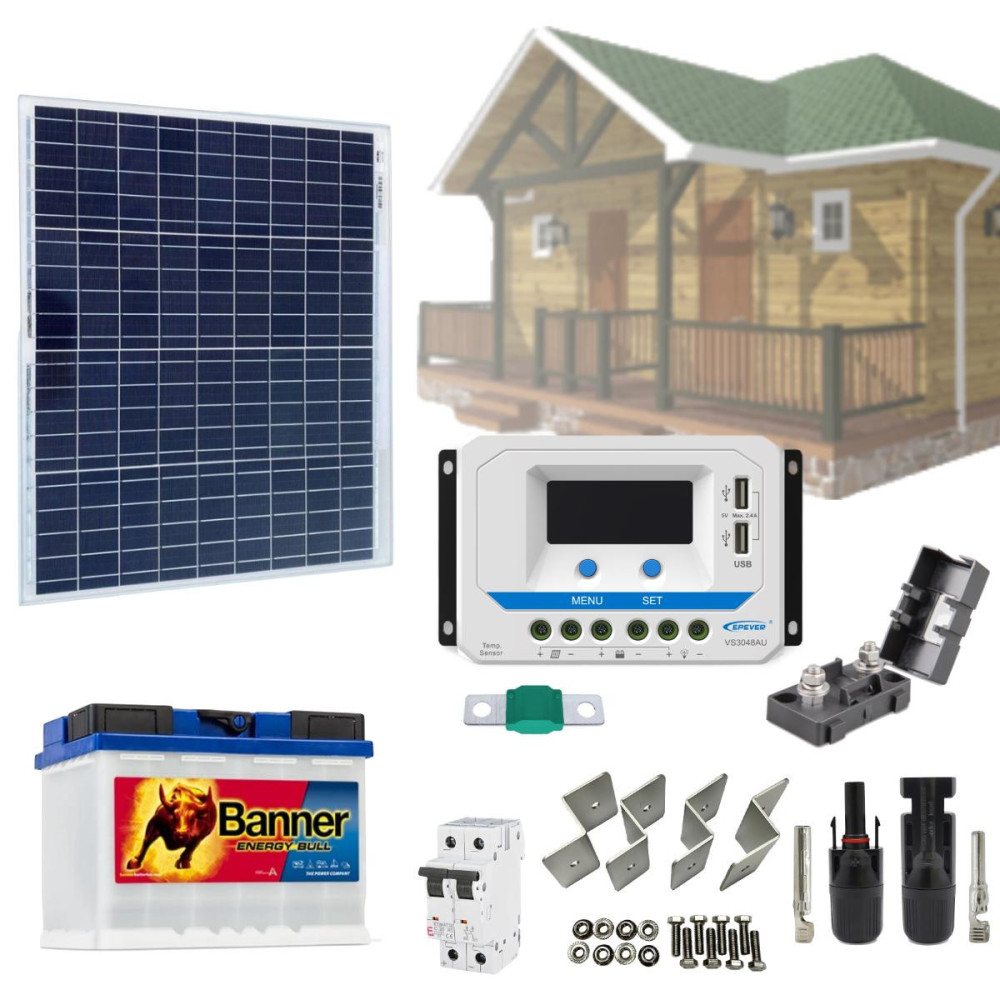

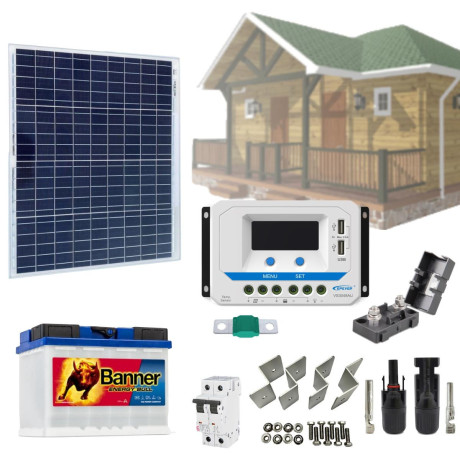

Set contents:

1x Victron Energy 60Wp/12V solar panel

Solar panel suitable forro the construction of a smaller solar system. The panel consists of 36 cells.

1x PWM solar controller EPever 10A 12/24V with LCD display VS series

High quality PWM solar controller 10A 12V/24V with clear built-in LCD display and two USB outputs. Only suitable for panels with approx 150Wp/12V battery and 300Wp/24V battery.

1x Banner 60Ah Solar Battery

Banner Energy Bull - lead acid battery with liquid electrolyte designed for operation in solar systems.

1x DC Circuit breaker 6A 2p 2-pole

DC 2-pole circuit breaker with rated current 6A, short circuit resistance 6kA.

1x MIDI - fuse 23A/32V Littelfuse

MIDI fuses are used to protect DC circuits with higher currents.

1x Victron Energy holder for MIDI fuses

The Victron MIDI fuse holder can only be used with MIDI fuses. MIDI fuses are used to protect DC circuits with higher currents and are available in 100-200A/32V or 60-100A/58V.

1x Panel mounting bracket set ALU1

4 aluminium brackets + 8 self-tapping stainless steel screws + 4 sets of screws for attachment to the aluminium frame of the solar panel and the substrate

1x MC4 - EVO2 original connectors - pair

Original Stäubli MC4 connectors for 4/6 mm2, DC 1500 V cables.
