Island solar system 385Wp EPever

Optimally designed solar system for places without electricity.

It is one of the most frequently sold and used solar systems in our range.

We recommend it to all customers who do not have special and non-standard requirements.

The system is designed with proven EPever components .

This system works with a system voltage of 12 V.

MTTP solar controller EPever XTRA XDS2 takes care of completely unattended operation of this system, it has a clear integrated LCD display that will provide you with interesting information about the operation of the whole system.

After installation, you select one of four preset battery types: AGM, GEL, liquid or LiFePO4

How much energy can this solar system produce?

Average daily energy production:

- Approx. 377 Wh/day in January

- in March approx. 962 Wh/day

- in May approx. 1425 Wh/day

- in June approx. 1425Wh/day

- in September approx. 1155 Wh/day

- in November approx. 462 Wh/day

For the whole year, the system can produce about 379 kWh.

How to choose the right solar system?

Multiply the consumption in Watts of the individual devices powered by the solar system by the number of hours of expected operation per day. The result will be the total Wh (watt-hours) required per day. If this figure is lower than the above values, the system performance is sufficient, otherwise a more powerful system should be chosen. For each system you will find the average number of Wh that the selected solar system will produce on average per day. Of course, you need to take into account whether the system is used every day or only on weekends or seasonally. If you are not sure which system to choose, please contact us and we will be happy to advise you.

The solar system kit does not include the interconnecting wiring for connecting the controller to the panel and battery and the clamps or lugs for connecting to the battery, which are the components required to complete the system functionally. If you are interested in these components, based on the length of the cables, we will recommend its appropriate cross-section and other components if necessary. By using a sufficient cross-section, we will avoid possible unnecessary losses due to high currents in the system.

WARNING: All installations of photovoltaic systems must only be carried out by a person with a professional electrical qualification and installation authorisation. Unprofessional installation may result in damage to health or property and may also be a factor in any claims.

If any component of the solar system does not suit your needs, we will gladly replace it with another or remove it completely with a corresponding price adjustment. Please contact us for this modification or indicate the fact in the notes in the order.

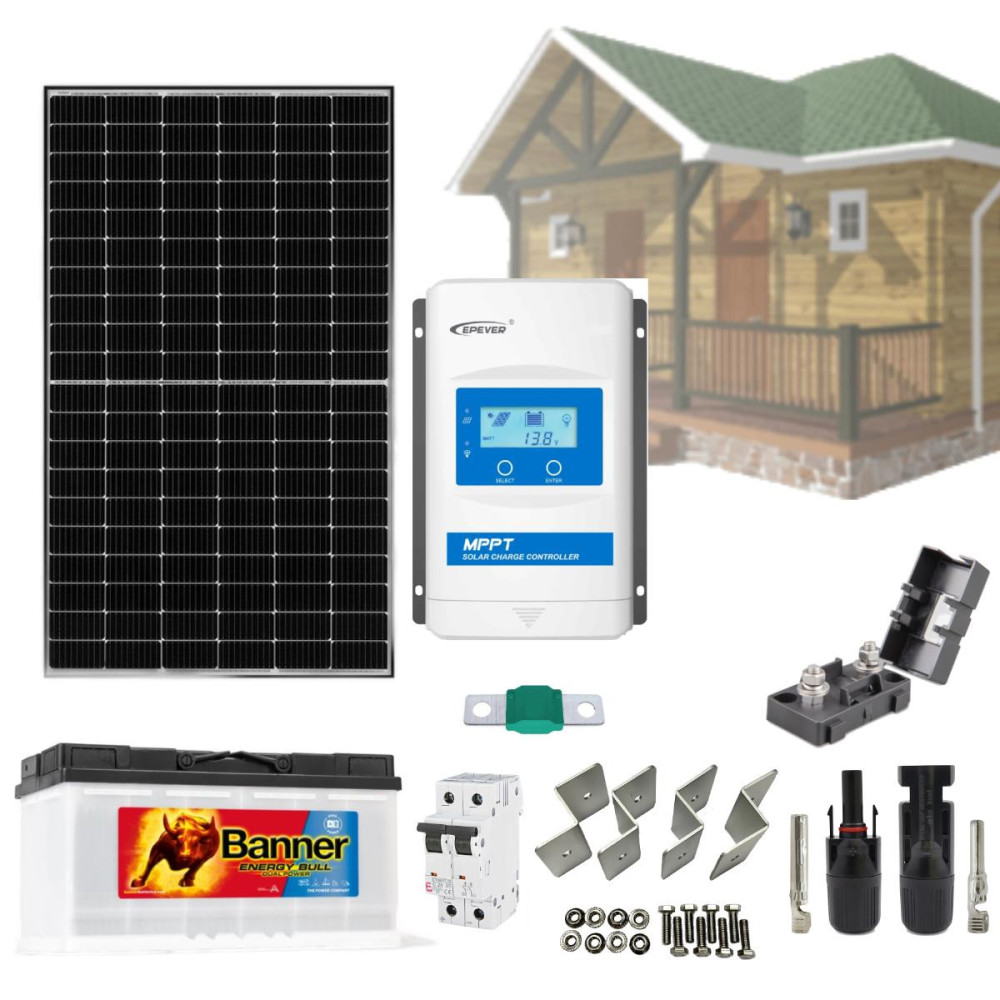

Set contents:

1x Solar panel JA Solar 385Wp silver frame

MonocrystallineA solar panel consisting of multi-busbar PERC cells with half-cell technology, which offers the benefits of higher performance. Stronger 35mm frame, silver frame colour.

1x DC circuit breaker 16A 2-pole

DC 2-pole circuit breaker with a rated current of 16A, short circuit resistance 10kA.

1x MPPT solar controller EPever 150VDC / 40A XTRA series - 12/24/48V

The new XTRA series MPPT controllers bring high quality and maximum features to island systems with panel voltages up to 150V and maximum charging current of 40A. Battery 12/24/48V, PV max 520/1040/2...

1x MIDI - fuse 60A/32V Victron Energy

MIDI fuses are used to protect DC circuits with higher currents.

1x Victron Energy MIDI fuse holder

The Victron MIDI fuse holder can only be used with MIDI fuses. MIDI fuses are used to protect DC circuits with higher currents and are available in 100-200A/32V or 60-100A/58V.

1x Solar battery Banner 230Ah Solar

Banner Energy Bull - lead acid battery with liquid electrolyte designed for operation in solar systems.

1x ALU1 panel mounting bracket set

4 aluminium brackets + 8 self-tapping stainless steel screws + 4 sets of screws for attaching to the aluminium frame of the solar panel and the substrate

1x MC4 - EVO2 original connectors - pair

Original Stäubli MC4 connectors for 4/6 mm2, DC 1500 V cables.
