Island Solar System 1155Wp Victron Energy

Optimally designed solar system for places without electricity.

It is one of the most commonly sold and used solar systems on offer.

We recommend it to all testers who do not have special and non-standard requirements.

The system is made of quality Victron Energy brand components with a 5-year warranty (battery warranty is 2 years).Â

This system operates with a 24 V system voltage .

The Victron Energy SmartSolar 150/45 solar controller takes care of the completely unattended operation of this system, the built-in Bluetooth allows local mini-motorization and adjustment of the system.

How much power can this solar system produce?

Average daily energy production:

- approximately 1131 Wh/day in January

- in March approx. 2887 Wh/day

- in May approx. 4273 Wh/day

- in June approx. 4273 Wh/day

- in winter approx. 3465 Wh/day

- in November approx. 1386 Wh/day

For a whole year the system can produce about 1138 kWh.

How to choose an affordable solar system?

We multiply the consumption in Watts of the individual devices powered by the solar system by the number of hours of expected operation per day. The result will be the total Wh (watt-hours) demand per day. If this number is lower than the values given above, the system is sufficiently powerful, otherwise a more powerful system must be selected. For each system you will find the average number of Wh that the selected solar system produces per day. Of course, you need to take into account whether the system is used every day or only on weekends or seasonally. If you are not sure which system to choose, please contact us for advice.

The solar system kit does not include the interconnecting cable for connecting the controller to the panel and battery and the clamps or lugs for connecting to the battery, which are components necessary for the functional completion of the system. If you will be interested in these components, we will recommend its appropriate cross-section and possibly additional components for the installation of the splitter cable. By using a sufficient cross-section we will prevent possible unnecessary losses due to high currents in the system.Â

CAUTION: All installations of photovoltaic systems must only be carried out by a person with professional electrical qualifications and installation training. Improper installation may result in damage to health or property and may be decisive for any claims.

If any component of the solar system does not suit your needs, we will gladly replace it with another or remove it completely with a corresponding price adjustment. For this adjustment, please contact us or indicate the fact in the note in the order form.

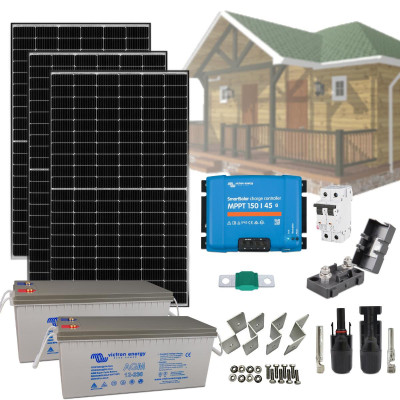

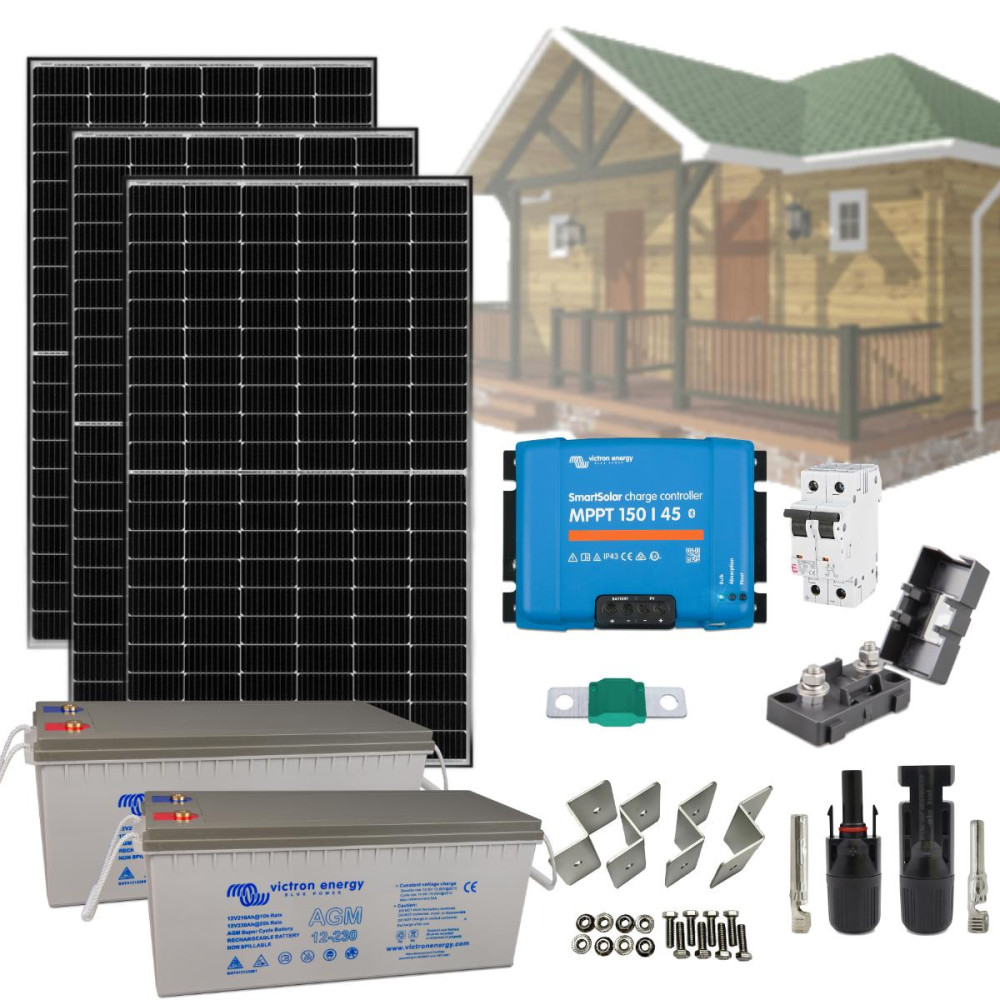

Set contents:

3x JA Solar 385Wp solar panel roof mounted frame

Mono-crystalline solar panel made up of multi-busbar PERC cells with half-cell technology that chargesthe benefits of superior performance. Tighter 35mm frame, medium colour frame.

1x MPPT solar controller Victron Energy SmartSolar 150/45

Robust and fast MPPT controller for low-voltage conditions with panel voltage up to 150V, maximum charging current 45A. Battery 12/24/48V, PV max 650/1300/2600Wp, integrated Bluetooth smart.

1x DC 16A 2-wire

DC 2-pole circuit breaker with rated current 16A, short circuit resistance 10kA.

1x MIDI - 60A/32V Victron Energy fuse

MIDI fuses are used to protect DC circuits with multiple currents.

1x Victron Energy fuse holder for MIDI fuses

The Victron MIDI fuse holder can only be used with MIDI fuses. MIDI fuses are used to protect DC circuits with multiple currents and are available in 100-200A/32V or 60-100A/58V ratings.

2x Victron Energy AGM Super Cycle 230Ah solar batteries

The Super Cycle battery is suitable for smaller battery systems where cleanliness is required.the next deep discharge. The paste of positive plates is less sensitive to softening, even in the case of repeated 100% discharge of the battery.

3x ALU1 panel mounting bracket set

4 pieces of aluminium holders + 8 pieces of self-cutting stainless steel screws + 4 sets of screws for fixing to the aluminium frame of the solar panel and the substrate

1x Connectors MC4 - EVO2 original - plus

Original MC4 connectors for cables 4/6 mm2, DC 1500 V.
