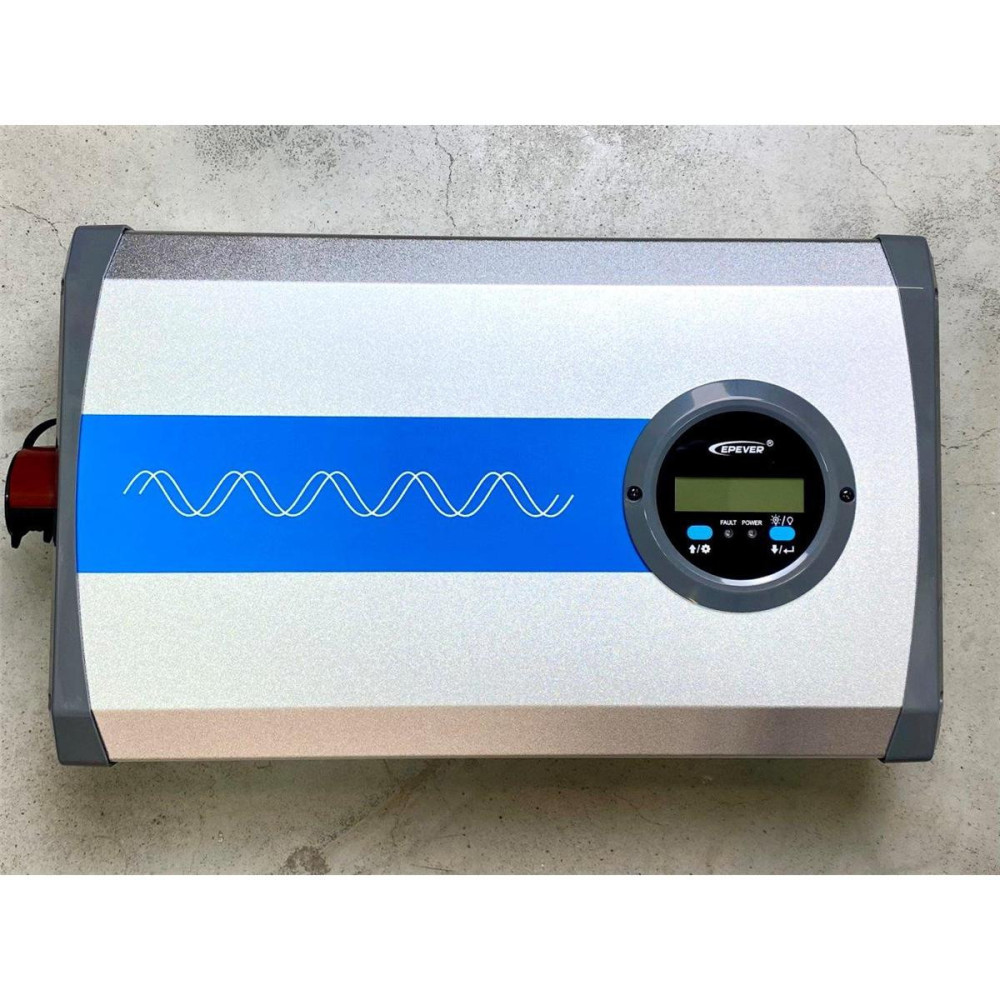

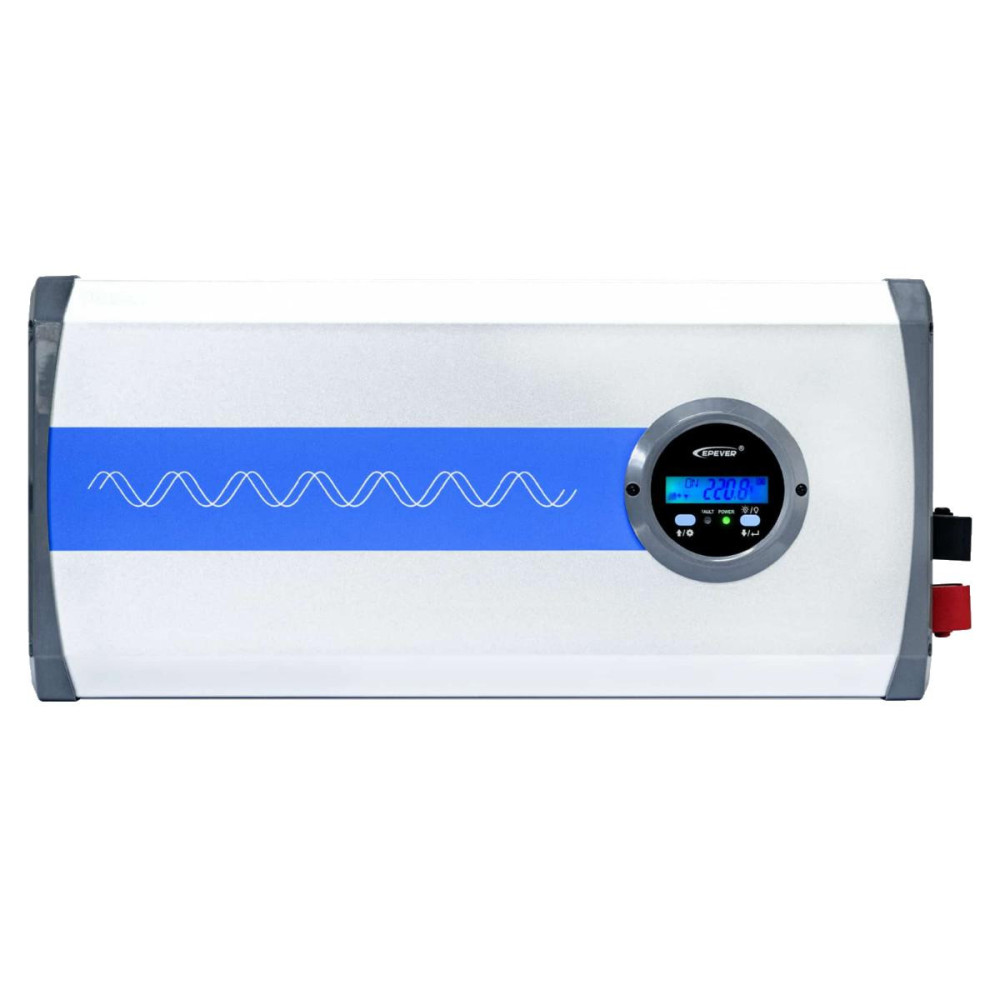

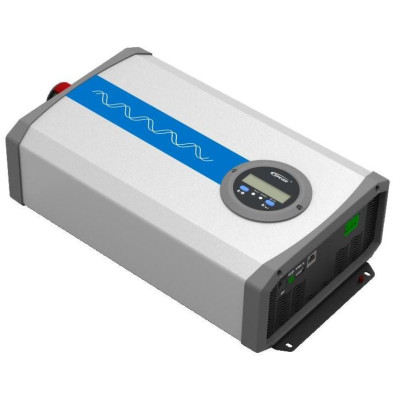

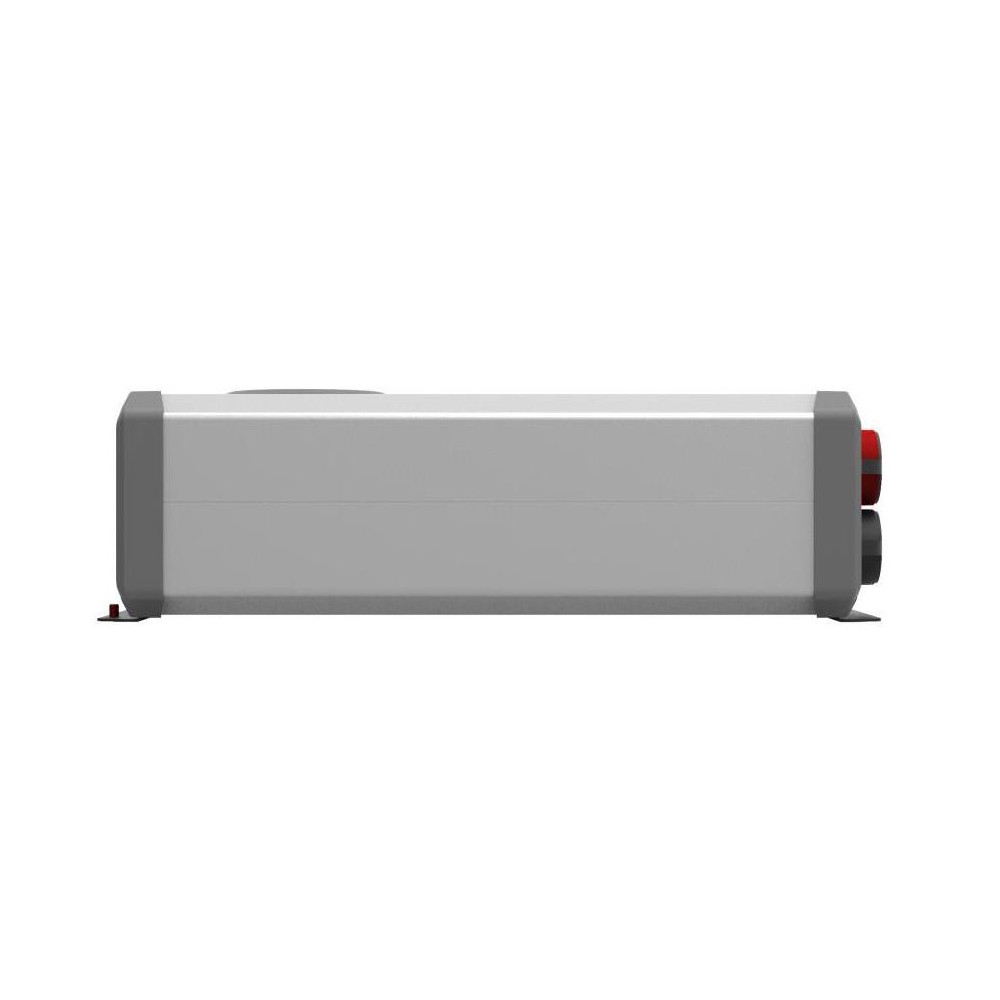

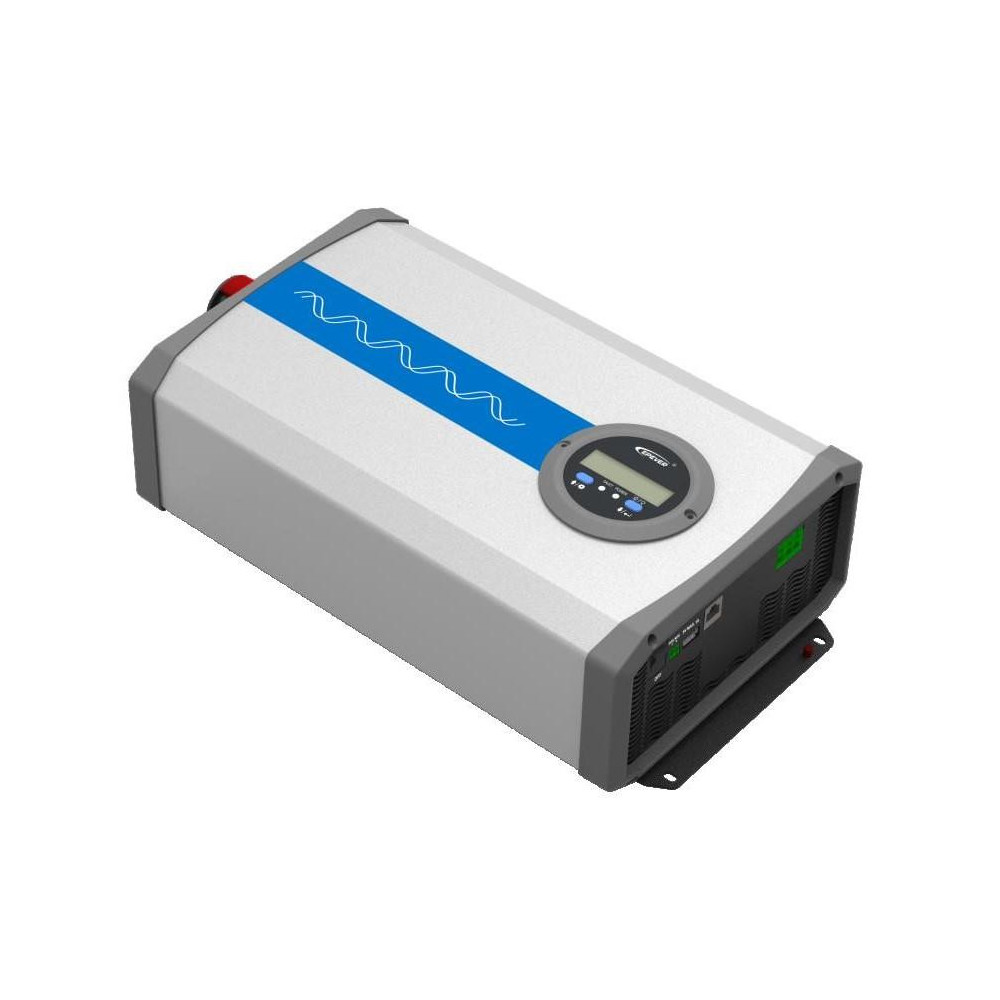

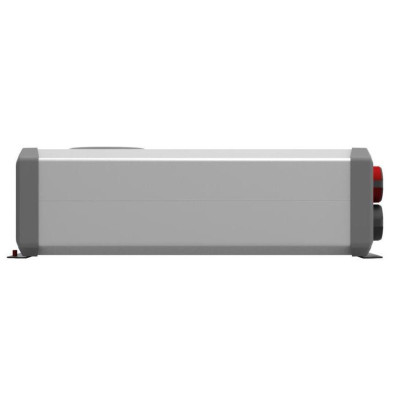

Voltage converter EPever IPower Plus 3000W 12V

IPower-Plus is a new generation of powerful pure sine wave voltage converters with an integrated LCD display for easy setup and monitoring.

Lithium battery compatible - uses surge current suppression technology to effectively prevent damage to the lithium battery cells and the BMS system.

Closed-loop dual voltage and current control algorithm brings faster response and better load surge resistance to the inverter.

High-performance and high-quality components ensure high reliability.

Integrated LCD display and controller for easy monitoring and configuration of the following parameters:

- Output voltage

- Output frequency

- Backlight time

- LCD

- Low-voltage disconnect voltage

- Low voltage connection voltage

- Surge connection voltage

- Surge Disconnect Voltage

The industrial design of this inverter, compared to the conventional design, has a larger operating temperature range, ease of installation and operation.

The wide input voltage range makes it ideal for applications in solar systems as well as many other applications.

Main features:

Completely electrically isolated input and output

Fully digital dual closed loop control

Excellent EMC characteristic, widely used for high quality power system

Advanced SPWM technology and pure sine wave output

Input surge current suppression technology for lithium battery system

Very good load/appliance surge current immunity

Powerful and high quality components to ensure high reliability

Output power factor up to 1

Low loss at zero load and standby. Low THD (total harmonic distortion). High conversion efficiency

Extensive protection: input overvoltage/undervoltage/overvoltage, output overload/short circuit/overheat

Air cooling, temperature and load controlled

Rotatable LCD display to simplify monitoring system installation and parameter configuration

Remote control via phone app and computer software

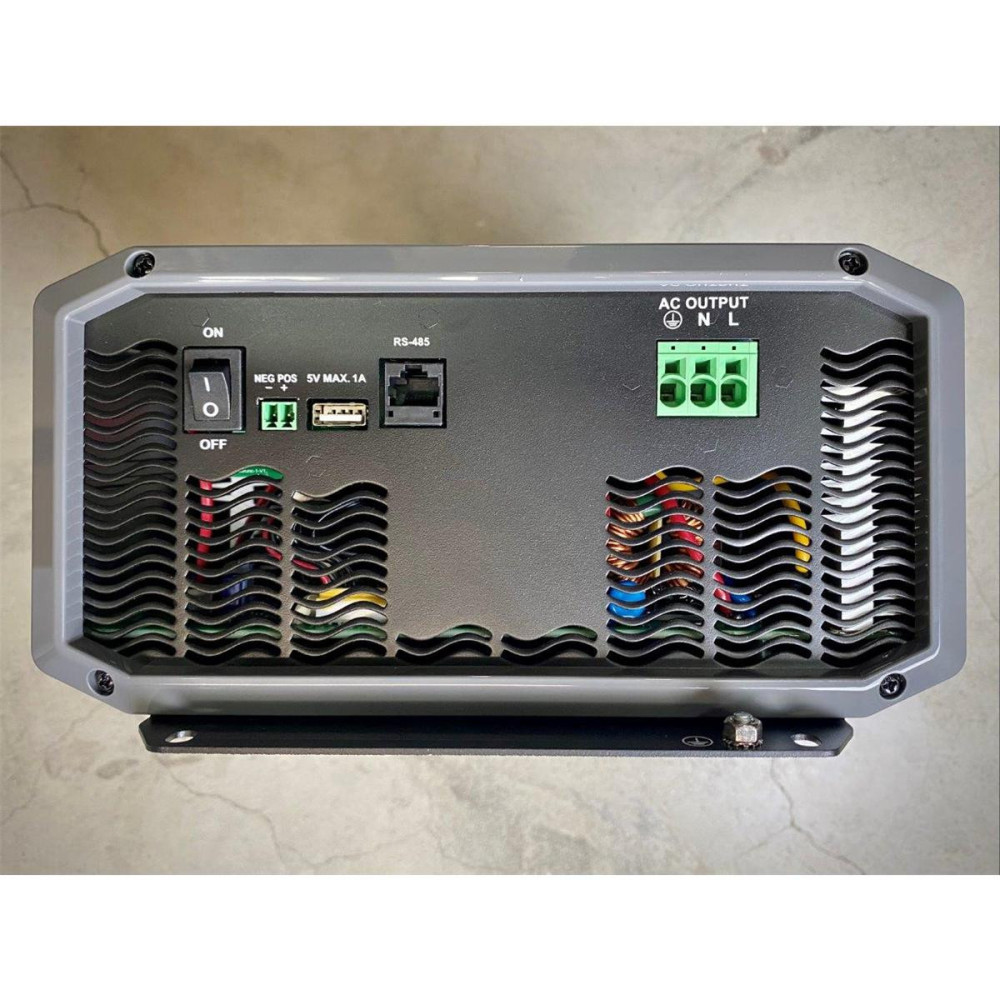

USB port e.g. for charging mobile phones

Support for various connection options to the RS485 comm. port

External switch contact design allows remote control

SchvIEC62109, EN61000, RoHS

Warning:

High frequency inverters are not suitable for powering inductive and capacitive loads such as pumps, compressors, electric motors, large switching power supplies. Before connecting inductive or capacitive loads, it is always necessary to measure inrush currents, which must not exceed the maximum output of the inverter.

Technical parameters:

Input voltage range: 10.8 - 16VDC

Continuous output power: 3000W

Peak output power: 6000W/5s

Dimensions: 557x231.5x123mm

Weight: 10.5kg

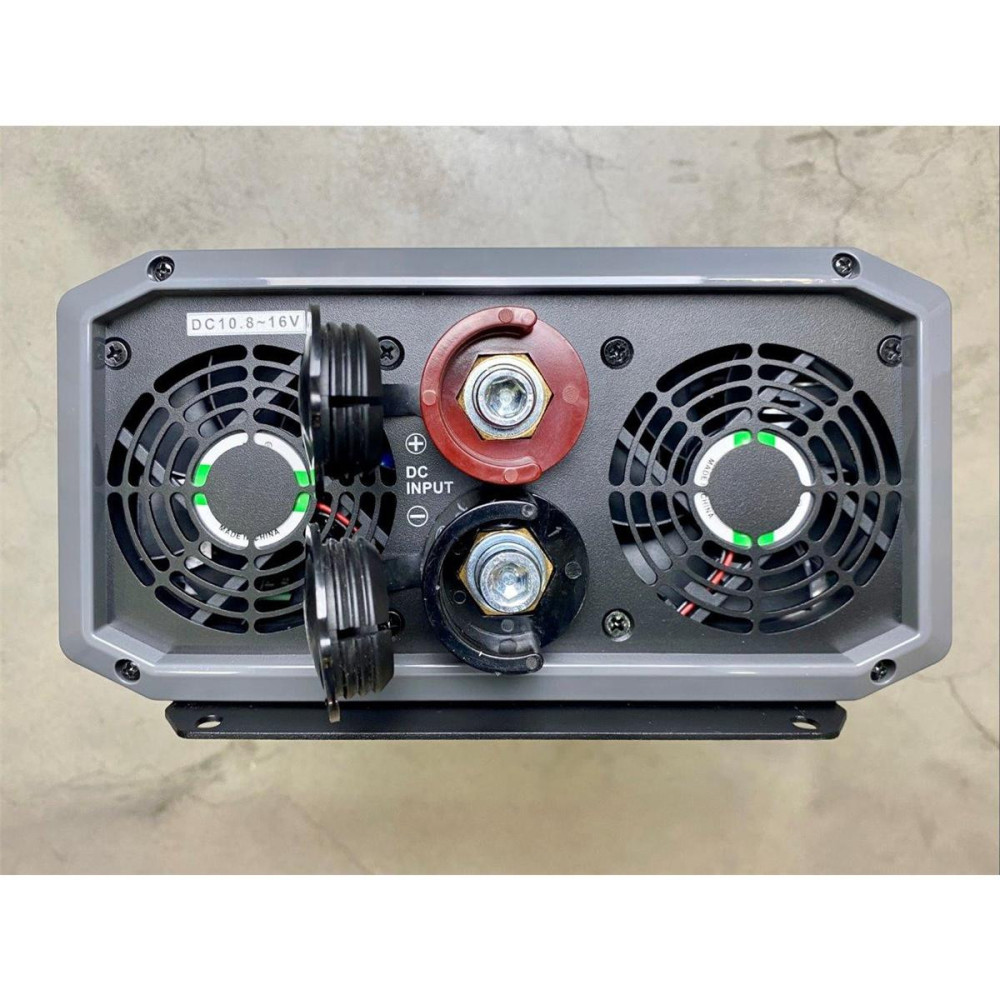

Recommended cross section of DC battery cables, length up to 1.5m: 100mm2

Recommended DC fuse: 400A

Please refer to the enclosed datasheet and manual for detailed information.
