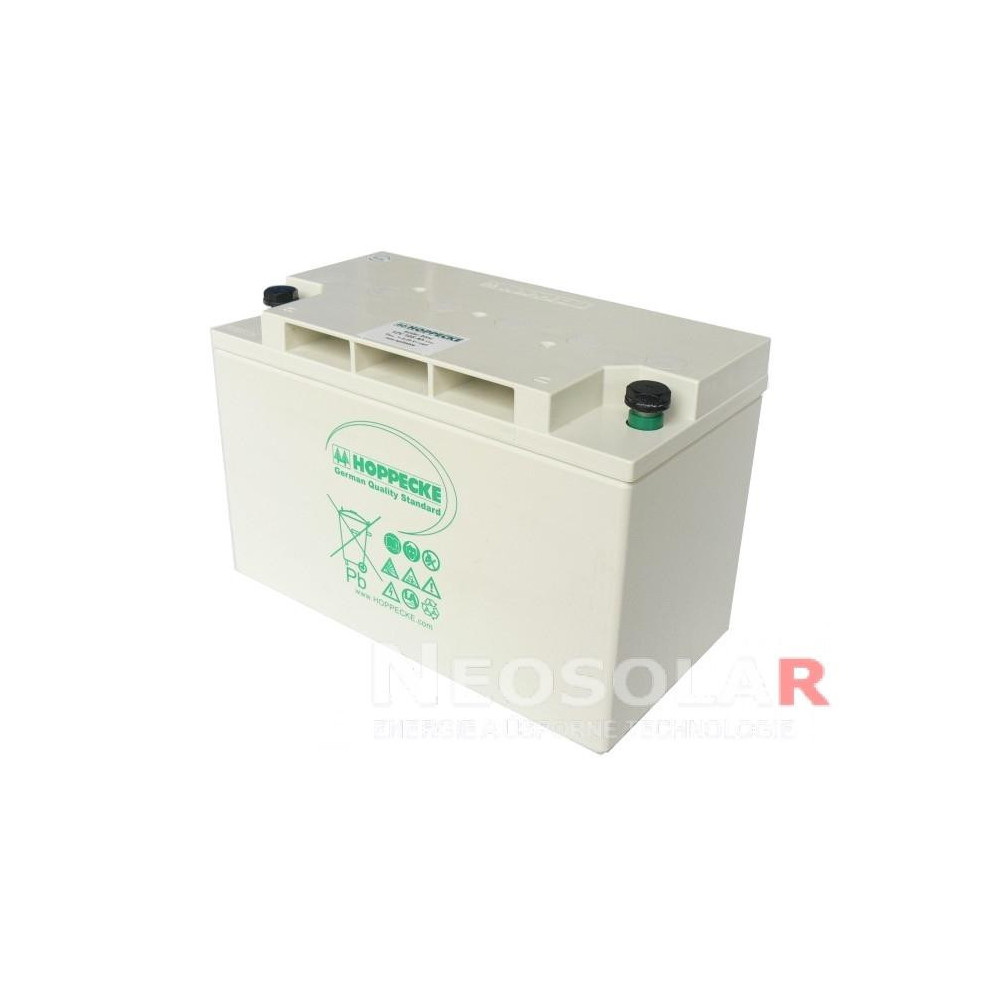

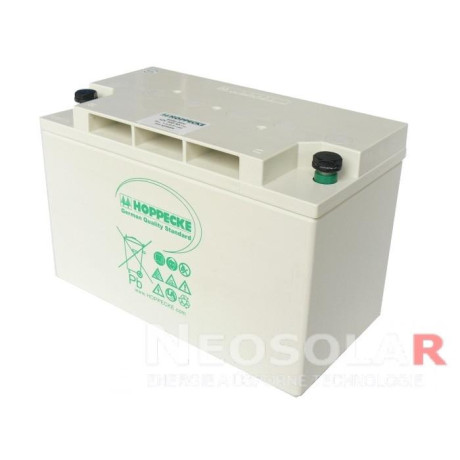

Solar battery Hoppecke 105 Sun Power VR M 12V

Roun battery from the German manufacturer Hoppecke, which was developed specifically for use in solar island systems and offers extremely high cycling resistance - e.g. 3200 cycles at 40% discharge see the graph on this card or also in the attached sheet. The Sun Power VR M batteries are valve-controlled maintenance-free batteries with an electrolyte bonded in glass fleece (AGM). This technology makes the batteries completely maintenance-free for the entire lifetime of the battery.

The main advantages of the battery are:

developed specifically for solar island systems
high cycling resistance
high number of charge cycles, which is particularly important in solar applications
long lifetime
high performance
compatibility with existing technologies

Features:

block battery, nominal voltage 12V
absolute maintenance-free for the entire lifetime of the battery
high resistance to cycling
maintenance charging voltage 2.25 - 2.27V/cell
recommended ambient temperature 20 °C (max. -10 °C to +40 °C)
any working position of the battery
anti-corrosive design of the poles
high current supply at a favourable voltage drop
design life of the battery 10-12 years (EUROBAT "high performance" classification)

Parameters:

dimensions: length 344x width 177x height 230mm
weight 38 kg
nominal voltage 12V
capacity 101Ah (at C100)
no-load voltage of 100% charged battery (measured a few hours after charging/discharging) = approx. 12.6V
recommended absorption voltage: 14.4V
recommended float voltage: 13.5V
