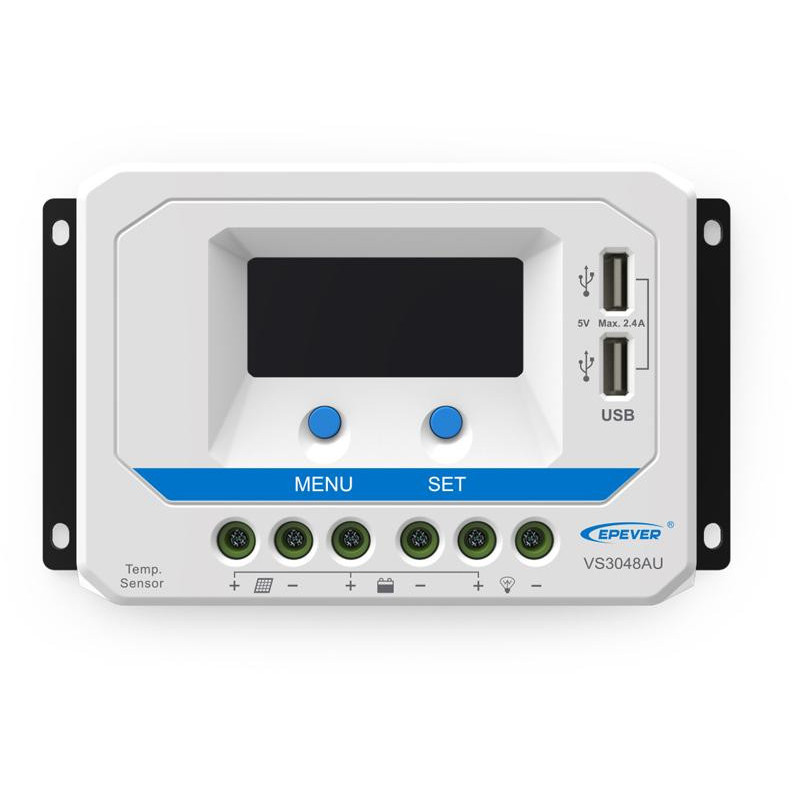

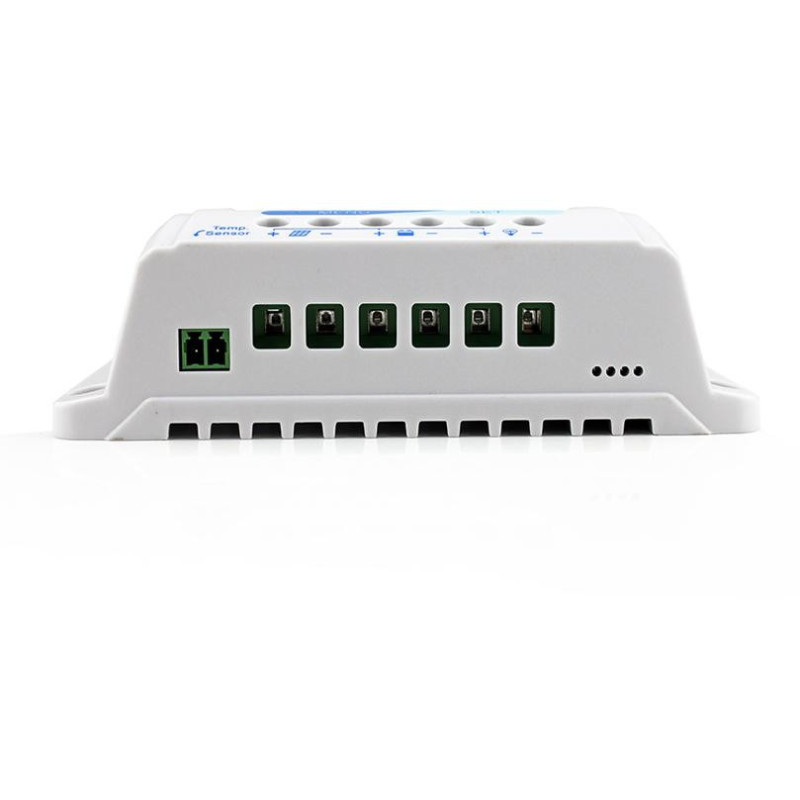

PWM solar controller EPever 30A 12/24V with LCD display VS series
High quality solar PWM controller 30A 12V/24V with clear built-in LCD display and two USB outputs. Only suitable for panels with approx 450Wp/12V battery and 900Wp/24V battery.
Secure payments
Pay securely and quickly with PayPal and GoPay.
Product delivery
We offer a wide selection of delivery methods, including personal pickup.
Shipment insurance
Every dispatched parcel is insured against damage.
PWM solar controller.
Its design is intended for small island solar systems with 12V solar panels (36 cells) for charging a 12V battery, or 24V solar panels (72 cells - two 36-cell panels can be connected in series) for charging a 24V battery and a maximum charging current of up to 30A.
The advantage is very simple and easy installation and reliable operation.
The built-in LCD clear display provides you with information about the solar panel voltage and current, battery voltage and charging current, as well as the current draw for DC appliances.
It also offers statistical information on the total amount of energy produced and consumed.
Using the buttons below the display, you can set one of three types of lead acid battery: sealed , gel or open liquid.
Furthermore, this model now offers two USB outputs for charging e.g. mobile phones or other portable electronic devices.
The maximum USB output current is 2.4A.
We recommend operating with these solar panels from our range:
Victron Energy 30Wp/12V Solar Panel
Victron Energy 60Wp/12V Solar Panel
Victron Energy 90Wp/12V Solar Panel
Victron Energy 115Wp/12V solar panel
Victron Energy 175Wp/12V Solar Panel

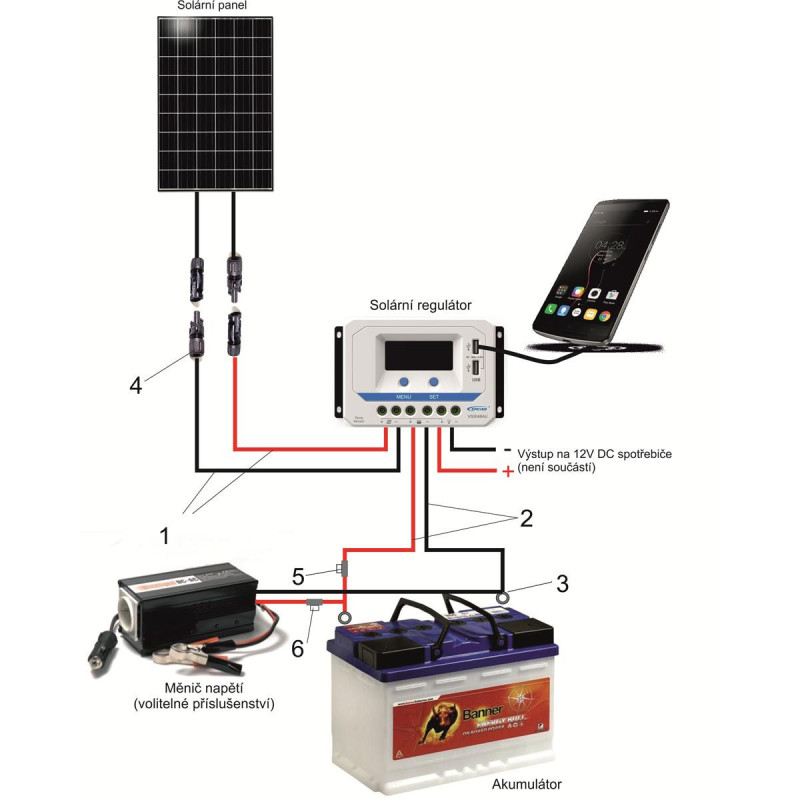

When installing/connecting, always proceed by connecting the battery first to the solar controller, the DC appliances second and the solar panel last.
After installation it is only necessary to set the type of battery used according to the manual.
No other settings are necessary.
No external MT50 display or PC interface can be connected to the controller.
An external battery temperature sensor can be connected.
Features:
Automatic detection of 12V or 24V
Overvoltage protection.
Short circuit protection.
Protection against over-polarity of solar panel and battery connection.
Low voltage protection.
Optional external temperature sensor
Maximum charging and discharging current is 30A
Dimensions: 181x100.9x59.8mm
Weight: 550g.
Operating temperature: -25°C to +55°C
Maximum size of connection cables: 16mm2
Designed for indoor installation, wall mounting.
For recharging lead-acid batteries
Protection rating: IP30
3808
Data sheet
- Warranty
- 24 měsíců
- Weight
- 0,6kg
Specific References
- EAN13
- 6974241250064
