PWM solar controller EPever 30A 12/24V GoMate

The GoMate is a negatively grounded solar controller that is designed for an aesthetically clean and integrated look especially for RVs, boats, etc.

The GoMate delivers a highly efficient PWM charging mode and also features a special LCD display that shows the real-time operating status of the system.

Charging is controlled fully automatically, providing users with a simple method of use.

PWM Solar Controller.

Its design is intended for small island solar systems with 12V solar panels (36 cells) to charge a 12V battery, or 24V solar panels (72 cells) to charge a 24V battery and a maximum charging current of up to 30A.

We recommend operating with these solar panels from our range:

Victron Energy 30Wp/12V Solar Panel

Victron Energy 60Wp/12V Solar Panel

Victron Energy 90Wp/12V solar panel

Victron Energy 115Wp/12V solar panel

Victron Energy 175Wp/12V Solar Panel

Main Features:

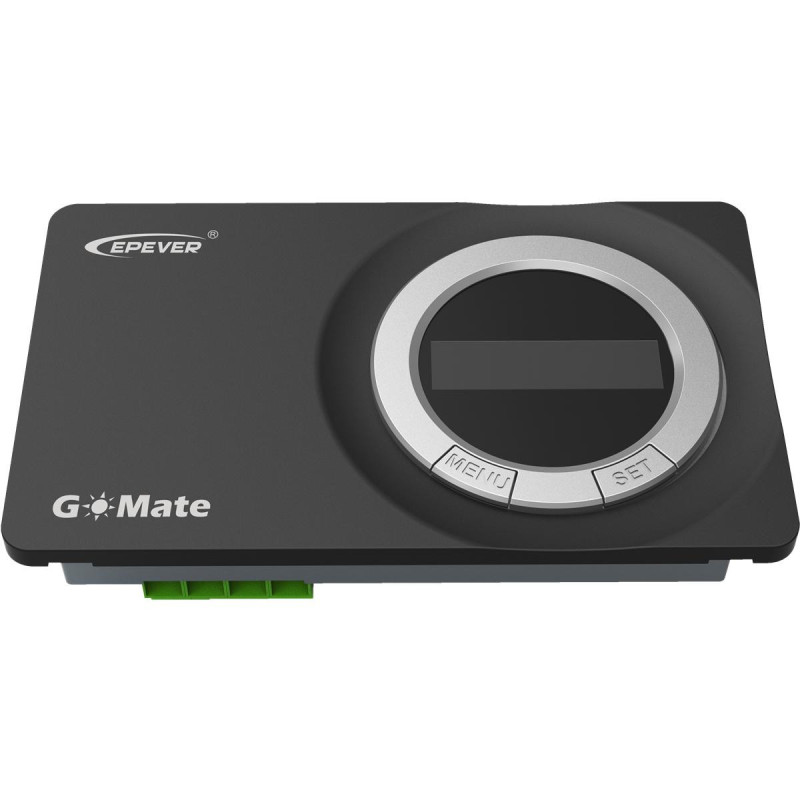

Recessed and integrated design

High quality and low failure rate of ST, TI and Infineon components to ensure product longevity

Intelligent 3-phase PWM charging

Battery type: sealed, gel, liquid and user adjustable charging profile

Real-time energy statistics

Battery temperature compensation function

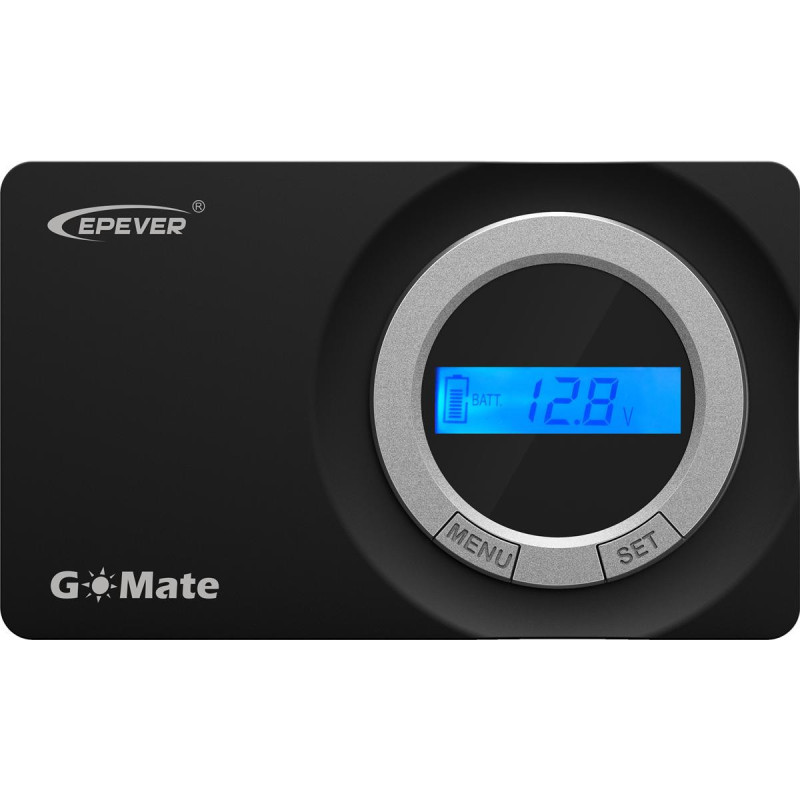

Digital LCD monitor for informative display of operating parameters and fault messages

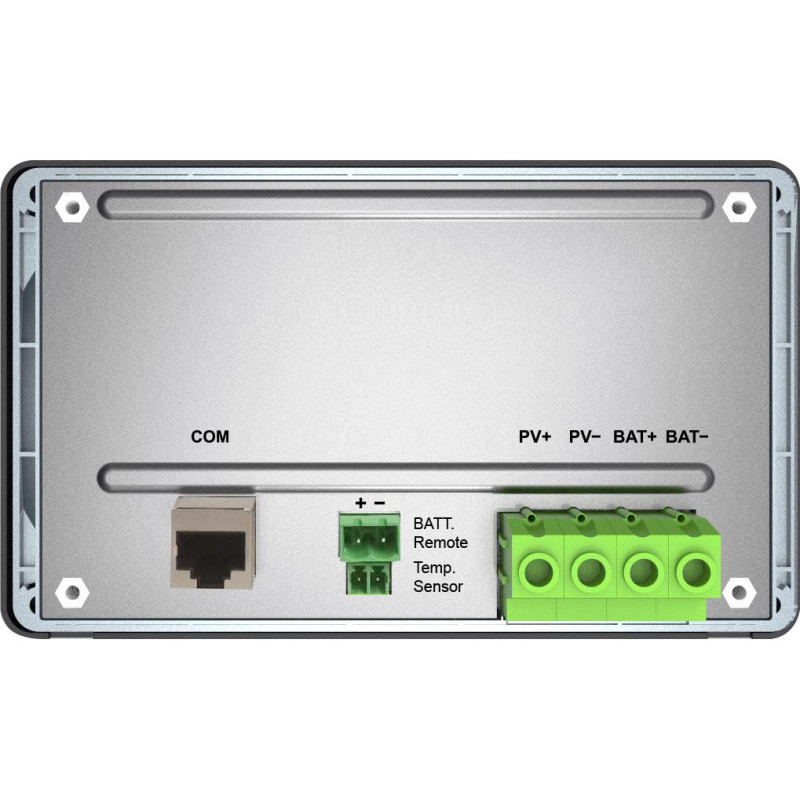

RS485 communication port with Modbus protocol and short circuit protection for 5 V / 200 mA power supply

Rated charging current at operating temperature without power reduction

Extensive electronic protection

Monitor and set parameters using PC software or APP

Dimensions: 178.5×105.5×48.3mm

Weight: 310g

Operating temperature: -30°C to +80°C

Maximum connection cable size: 16mm2

Designed for indoor installation, wall mounting.
