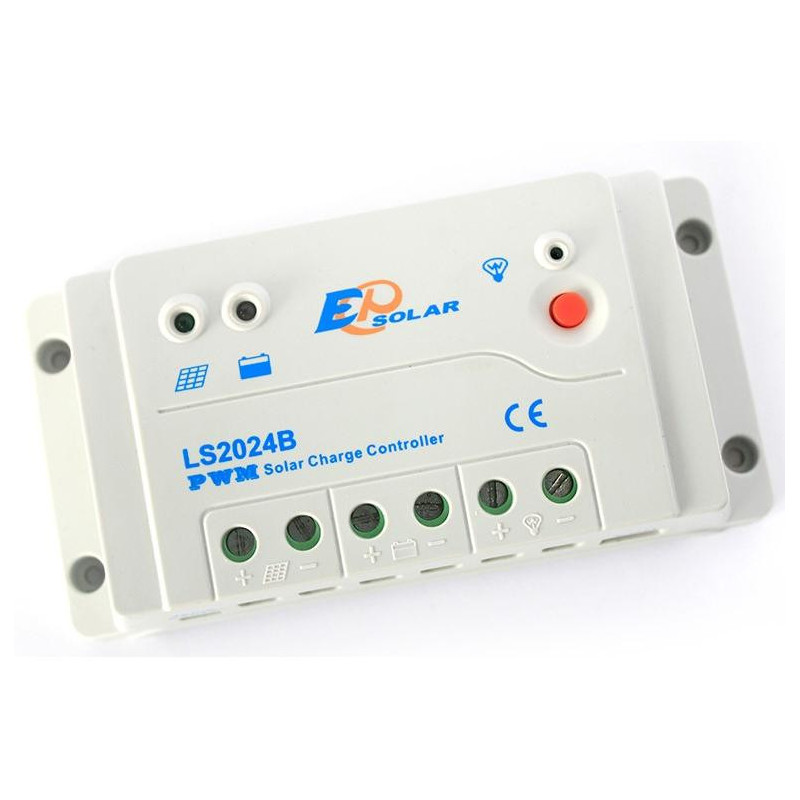

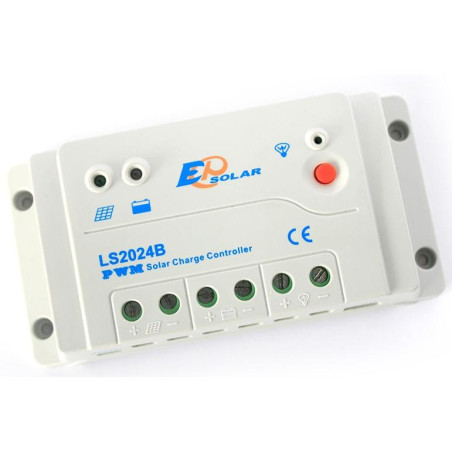

PWM solar controller EPever 20A 12/24V LS series

PWM solar controller.

Its design is intended for small island solar systems with 12V solar panels (36 cells) for charging a 12V battery, or 24V solar panels (72 cells) for charging a 24V battery and a maximum charging current of up to 20A.

The advantage is very simple and easy installation and reliable operation.

We recommend operating with these solar panels from our range:

- Victron Energy 30Wp/12V Solar Panel

- Solar panel Victron Energy 60Wp/12V

- Victron Energy 90Wp/12V Solar Panel

- Victron Energy 115Wp/12V solar panel

- Victron Energy 175Wp/12V Solar Panel

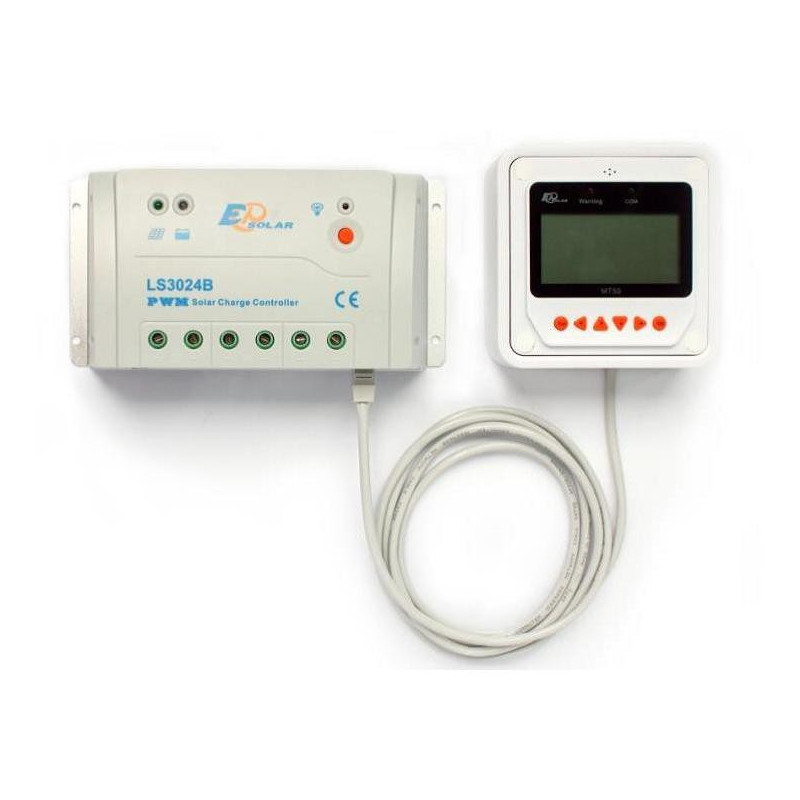

The controller parameters are set using the external MT50 display .

Parameter settings can be made by us upon dispatch and therefore there is no need to purchase an external display.

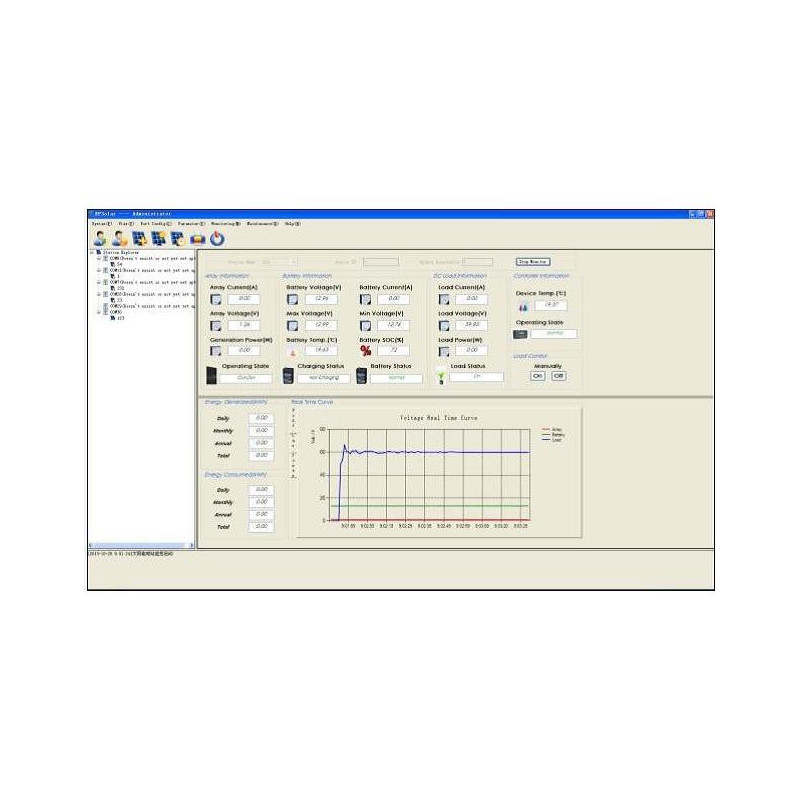

Parameter setting and monitoring can also be carried out on your PC - you will only need an EPsolar USB communication cable and the software, which can be downloaded for free at the bottom of this product tab.

Features:

Automatic detection of 12V or 24V

Three stages of battery charging.

Over-voltage protection.

Short circuit protection.

Protection against over-polarity of solar panel and battery connection.

Disconnects the load output when the voltage is low.

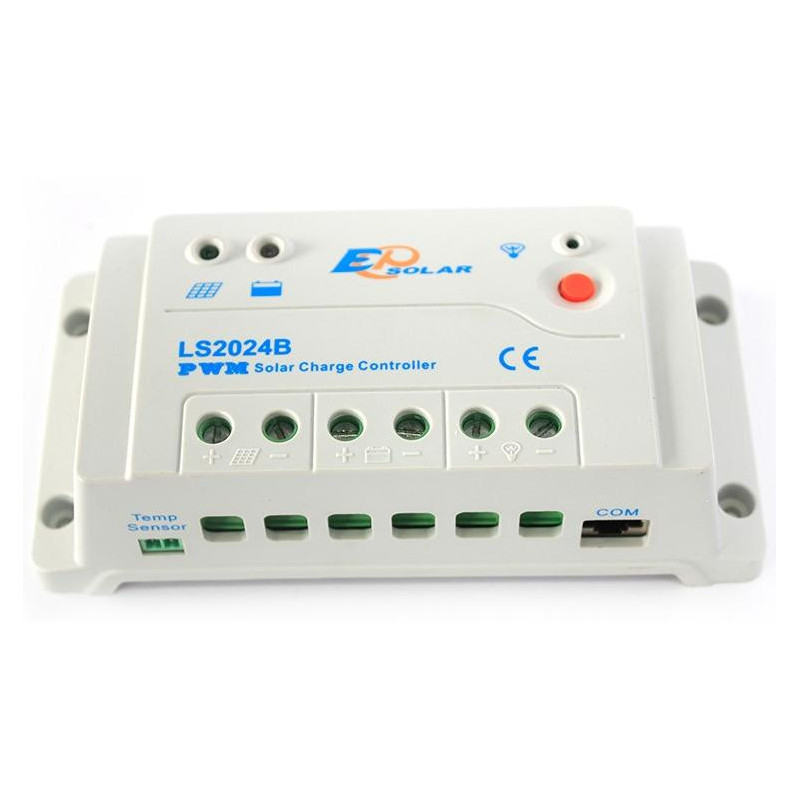

Optional external temperature sensor

Programmable and can be monitored using the MT-50 external display.

RS485 MODBUS communication protocol interface

Dimensions: 159.6x81.4x47.8mm

Weight: 300g

Operating temperature: -35°C to +55°C

Maximum connection cable size: 4mm2

Designed for indoor installation, wall mounting.

For recharging lead-acid batteries

Protection rating: IP30
