PWM solar controller EPever 10A 12/24V with LCD display VS series

PWM solar controller.

Its design is intended for small island solar systems with 12V solar panels (36 cells) for charging a 12V battery, or 24V solar panels (72 cells - two 36-cell panels can be connected in series) for charging a 24V battery and a maximum charging current of up to 10A.

The advantage is very simple and easy installation and reliable operation.

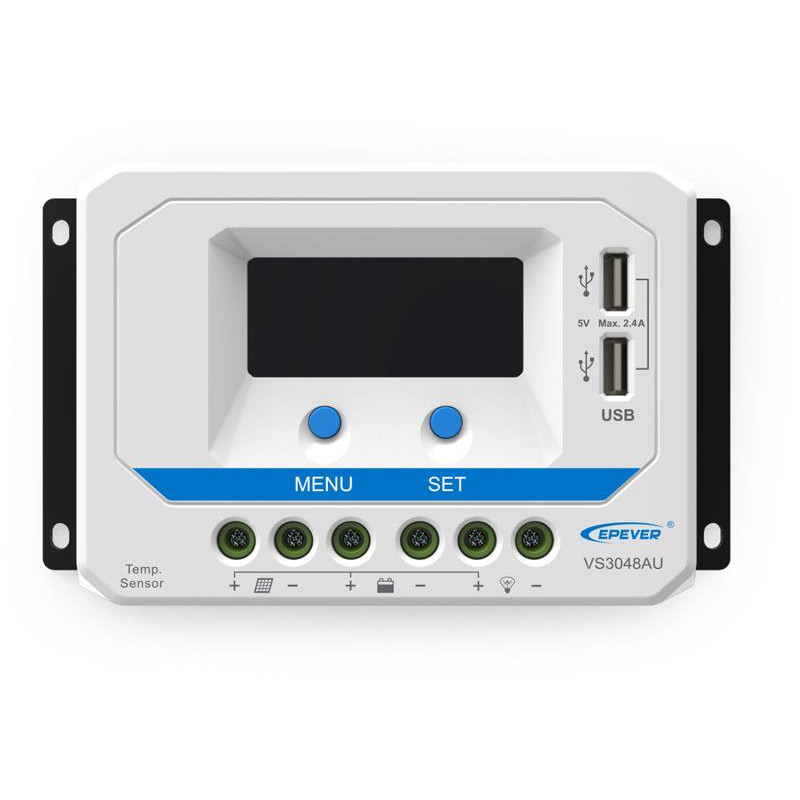

The built-in LCD clear display provides you with information about the solar panel voltage and current, battery voltage and charging current, as well as the current draw for DC appliances.

It also offers statistical information on the total amount of energy produced and consumed.

Using the buttons below the display, you can set one of three types of lead acid battery: sealed, gel or open liquid.

Furthermore, this model now offers two USB outputs for charging e.g. mobile phones or other portable electronic devices.

The maximum USB output current is 2.4A.

We recommend operating with these solar panels from our range:

Victron Energy 30Wp/12V Solar Panel

Victron Energy 60Wp/12V Solar Panel

Victron Energy 90Wp/12V Solar Panel

Victron Energy 115Wp/12V solar panel

For more detailed information, please refer to the enclosed brochure and the English manual that we will supply with this product.

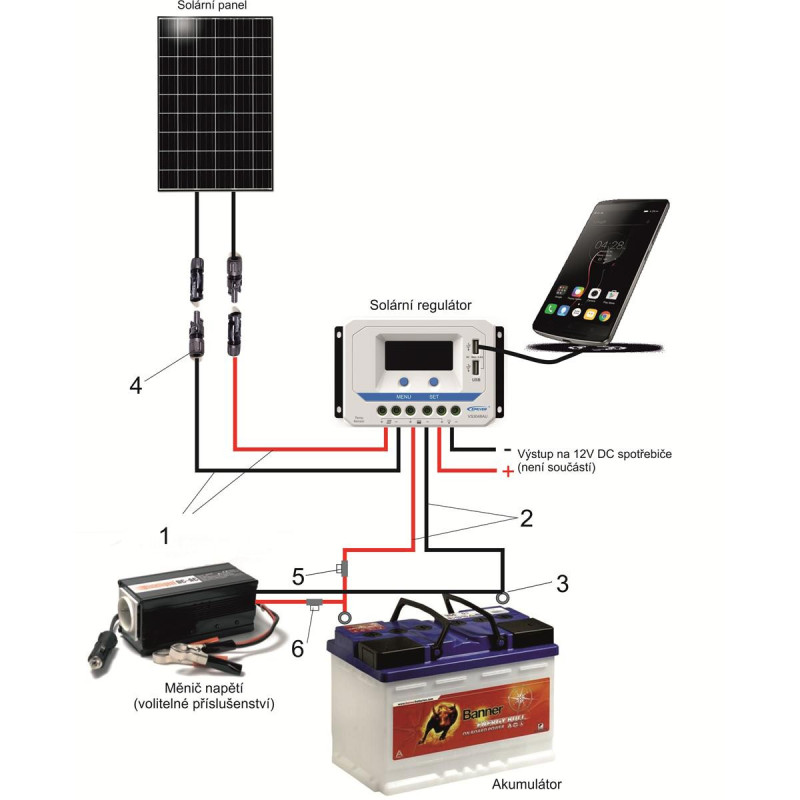

When installing/connecting, always proceed by connecting the battery to the solar controller first, the DC appliances second and the solar panel last. After installation it is only necessary to set the type of battery used according to the manual. No other settings are necessary.

It is not possible to connect an external MT50 display and PC interface to the controller. An external battery temperature sensor can be connected.

Features:

Automatic detection of 12V or 24V

Overvoltage protection.

Short circuit protection.

Protection against over-polarity of solar panel and battery connection.

Low voltage protection.

Optional external temperature sensor

Maximum charging and discharging current is 10A

Dimensions: 142x85x41.5mm

Weight: 220g.

Operating temperature: -25°C to +55°C

Maximum size of connection cables: 4mm2

Designed for indoor installation, wall mounting.

For recharging lead-acid batteries

Protection rating: IP30
