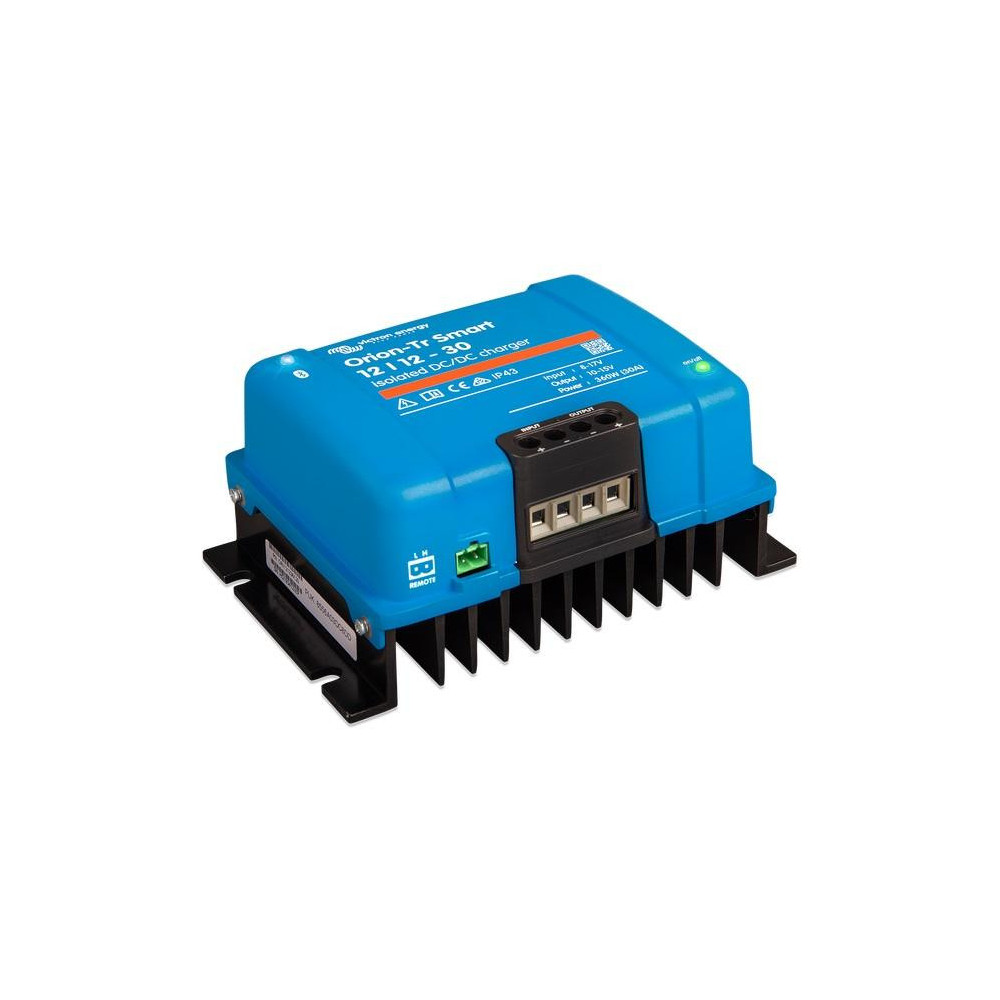

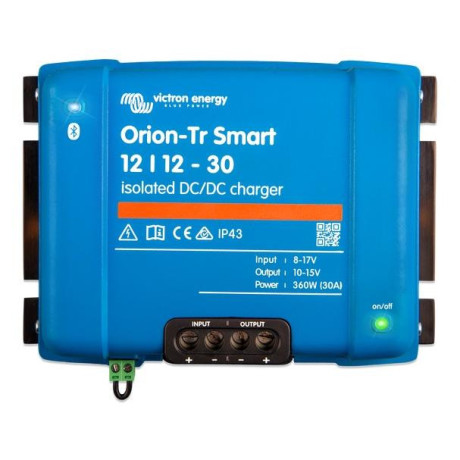

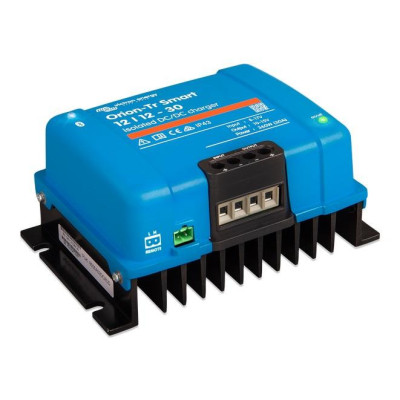

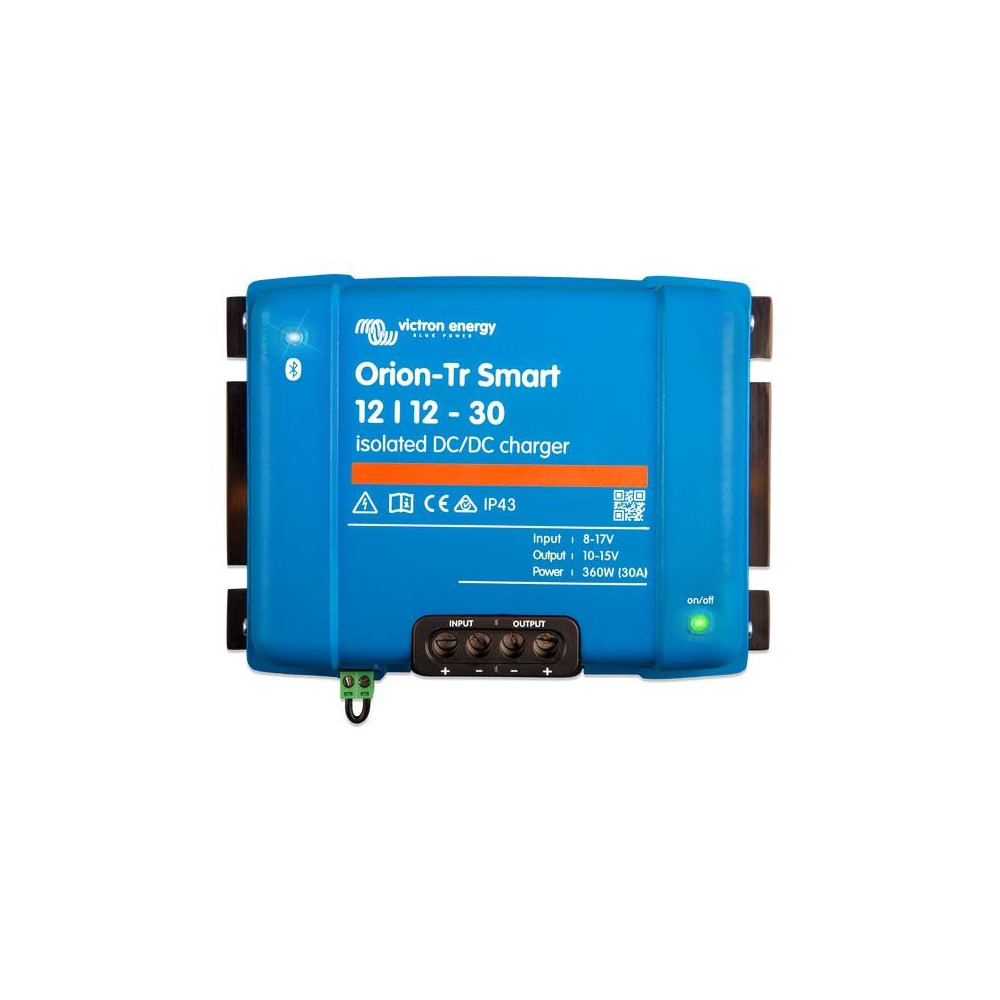

DC-DC charger Orion-Tr Smart 12/12-30A (360W) insulated
The Victron Energy Orion-Tr Smart DC-DC Charger is a professional DC-DC adaptive three-stage charger with built-in Bluetooth functionality.
Secure payments
Pay securely and quickly with PayPal and GoPay.
Product delivery
We offer a wide selection of delivery methods, including personal pickup.
Shipment insurance
Every dispatched parcel is insured against damage.
The Victron Energy Orion-Tr Smart DC-DC Charger is a professional DC-DC adaptive three-stage charger with built-in Bluetooth functionality. It is designed for use in dual battery systems in vehicles or boats where a (smart) alternator and starter battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and controlled remotely via a remote on/off switch. The charger also features an engine run detection mechanism.
Orion Tr-Smart chargers are available in 12V or 24V and are suitable for both lead acid and lithium batteries. Models are available up to 400 W. In addition, an unlimited number of units can be connected in parallel to increase output power.
Suitable for use in high ambient temperatures, up to 55°C, and at full rated output power up to 40°C.
Bluetooth Smart
Any smartphone, tablet or other device can be used to monitor, change settings and update the charger when new software features are available.
.png)
Fully programmable
Orion Tr-Smart chargers are available in 12V or 24V and are suitable for both lead acid and lithium batteries. Models are available up to 400 W. In addition, an unlimited number of units can be connected in parallel to increase output power.
Suitable for use in high ambient temperatures, up to 55°C, and at full rated output power up to 40°C.
Bluetooth Smart
Any smartphone, tablet or other device can be used to monitor, change settings and update the charger when new software features are available.
Fully programmable
- Battery charging algorithm (configurable) or constant output.
- Smart alternator compatibility: engine run detection mechanism.
Adaptive three-stage charging algorithm: fast - absorption - floating
- For lead acid batteries, it is important that the absorption time is short during moderate discharges to avoid overcharging the battery. After deep discharges, the absorption time increases automatically to ensure the battery is fully charged.
- The absorption time for lithium batteries is constant, 2 hours by default.
- Or a constant output voltage can be selected.
Remote on/off
A remote on/off switch or relay contact can be connected to the two-pole connector, or the H (right) terminal of the two-pole connector can be switched to the plus pole of the battery, or the L
(left) terminal of the two-pole connector can be switched to the minus pole of the battery (or to the vehicle frame, for example).
All models are equipped with short circuit protection and can be connected in parallel to increase the output current
A remote on/off switch or relay contact can be connected to the two-pole connector, or the H (right) terminal of the two-pole connector can be switched to the plus pole of the battery, or the L
(left) terminal of the two-pole connector can be switched to the minus pole of the battery (or to the vehicle frame, for example).
All models are equipped with short circuit protection and can be connected in parallel to increase the output current
- There is no limit to the number of units that can be wired in parallel.
- High temperature protection
- Output current is reduced at high ambient temperature.
Protection IP43
When installed with screw terminals facing downwards.
When installed with screw terminals facing downwards.
Screw terminals
Installation does not require special tools.
Input fuse (not interchangeable)
Installation does not require special tools.
Input fuse (not interchangeable)
3929
Data sheet
- Warranty
- 60 měsíců
- Weight
- 1,8kg
Specific References
- EAN13
- 8719076047698
