Digital multifunction panel 200/200A GX

Digital multifunction panel 200/200A GX for remote control and monitoring of MultiPlus and Quattro inverter/chargers

Kč3,304
VAT included Kč2,731 without VAT
Delivery in 5–7 days
Quantity
Add to wishlist
připraveno k expedici

Nejnižší cena za posledních 30 dní byla Kč3,304
  Secure payments

Pay securely and quickly with PayPal and GoPay.

  Product delivery

We offer a wide selection of delivery methods, including personal pickup.

  Shipment insurance

Every dispatched parcel is insured against damage.

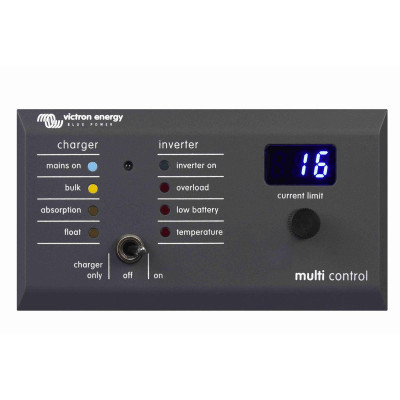

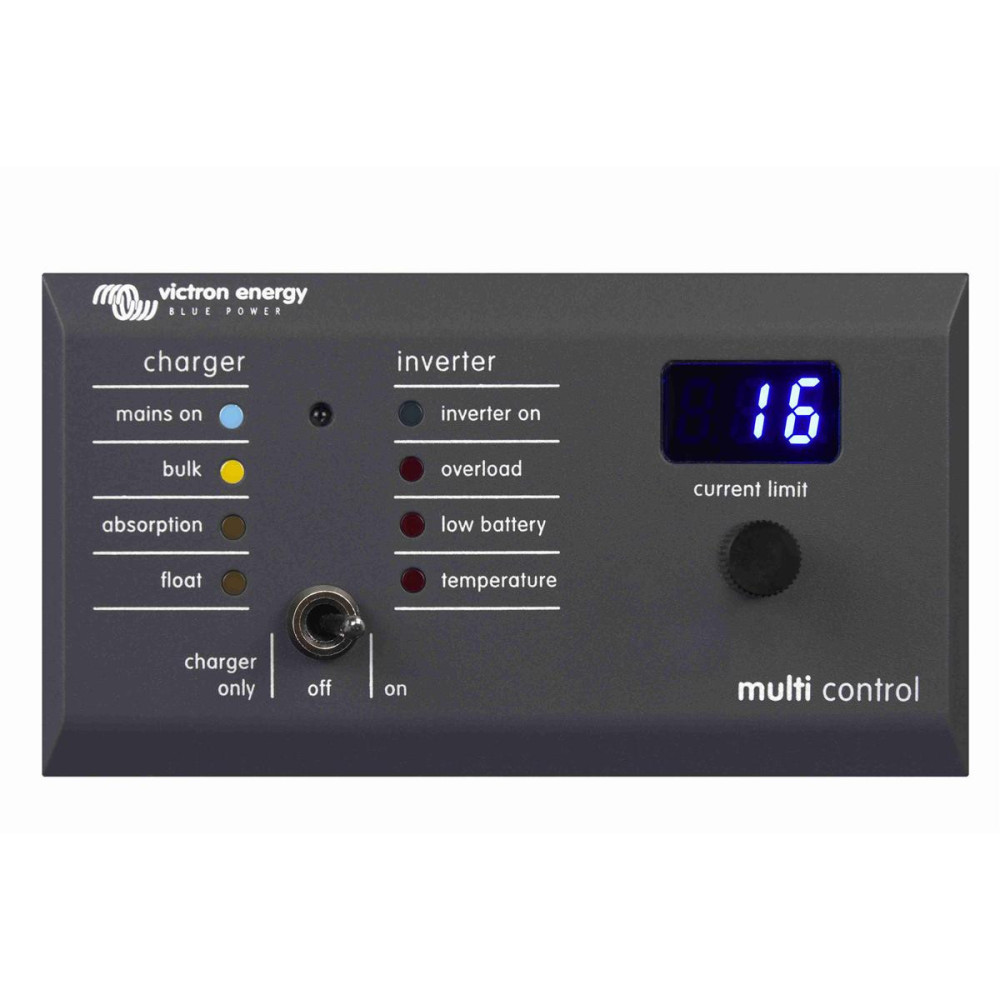

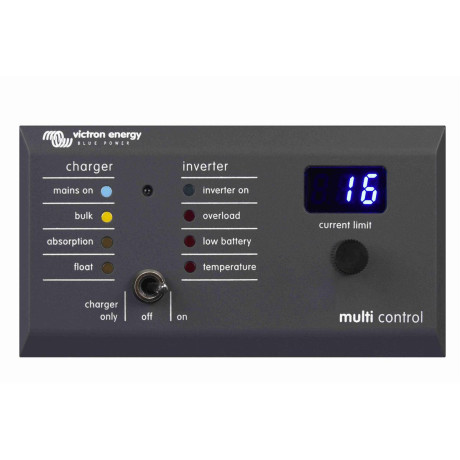

Panel for remote control and monitoring of MultiPlus and Quattro series inverter/chargers in single, parallel and three-phase carriage. It allows a lever switch to remotely switch the connected device on and off, or select "charger only" mode. It also allows to change the value of the maximum input current from the mains or other AC power source. The set value is permanently displayed on the digital display. The panel displays the operating status via LEDs. On the left, the inverter on/off, overload of the appliance, low battery charge and high temperatures of the device are displayed. On the right, the connection to the mains (generator) and the charging phase of the batteries are displayed. Connection to the controlled device is via UTP cable with RJ45 terminals (not included). The panel is designed for installation in a wall, electrical box, etc. The panel has a configuration button for individual settings. See the instructions below for more information.
This is an optional accessory for the MultiPlus and Quattro devices, which are operated directly on the device as standard. It is similar to the Digital Multifunction Panel 200/200A, but with a different design and mounting: a mounting frame is included to allow the panel to be mounted from the front or rear. The mounting is designed without visible screws on the panel. The panel is made of plastic, making it lighter.
Specifications:
Supply voltage 9 to 70VDC.
Power supply current in Standby mode <5mA (12V, 24V)
Power supply current in Active mode <30mA (12V) and <15mA (24V)
Operating temperature range 0 to 50°C
Dimensions 65 x 120 x 55mm
Net weight 120g
Device body made of aluminium

3514

Data sheet

Warranty
60 měsíců
Weight
0,178kg

Specific References

EAN13
8719076017011
