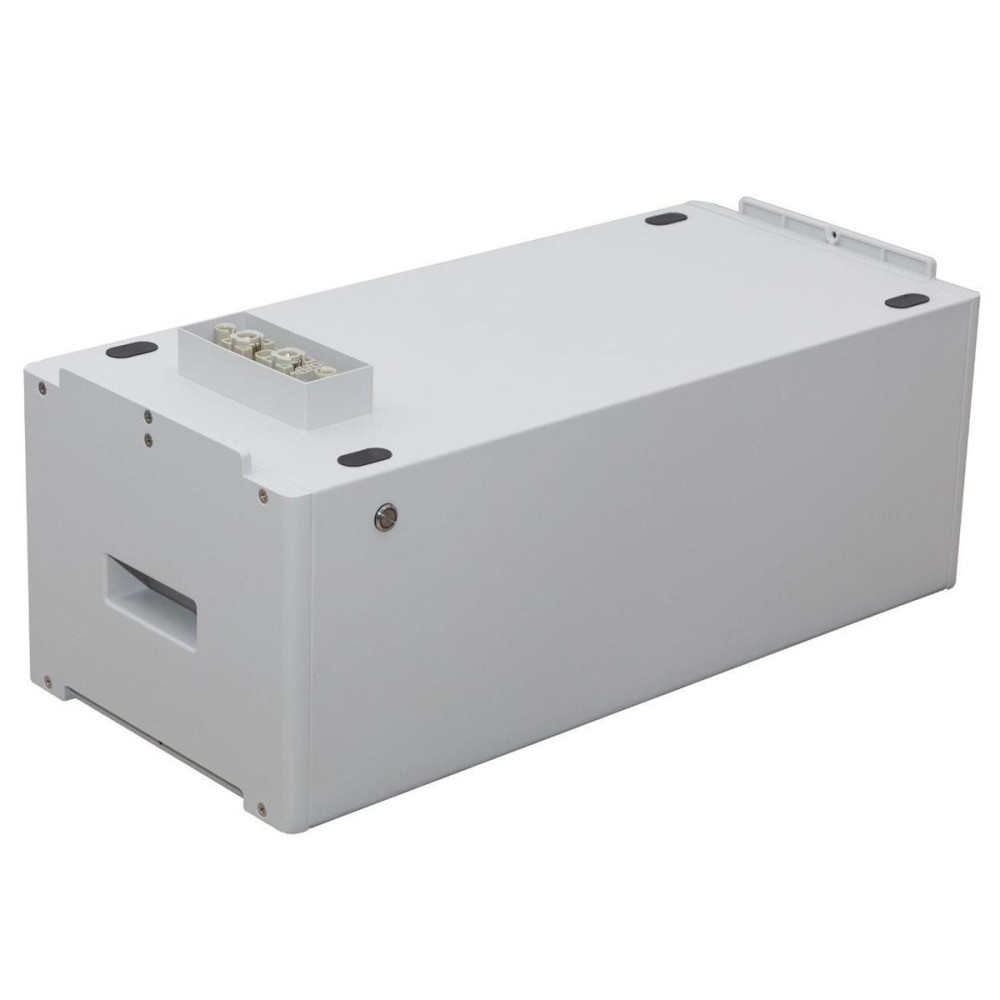

BYD Battery Box Premium LVS 4kWh module

BYD Battery Box Premium LVS basic features:

Flexible battery capacity expandable by 4kWh modules
You can easily stack one to six LVS modules with a usable capacity of 4kWh into one LVS4 - LVS24 battery column with a total capacity of 4 to 24kWh:

Parallel connection of up to 16 LVS battery columns
When connecting battery columns in parallel, a maximum of 4 LVS 4kWh modules can be in one column. By connecting up to 16 columns in parallel, a battery with a total capacity of up to 256kWh can be assembled.

Simple connection of battery modules without cables
The connection between the individual LVS 4kWh modules in one column is provided by an internal DC connector. The modules are simply assembled onto the base with feet (part of the PDU connection module) and secured with two screws - no cable connection between modules.

Anytime expandable battery
Simply adapt the battery to your growing needs and add additional 4kWh LVS modules at any time.

Compatible with Victron Energy inverters
BYD batteries can be installed and operated with compatible inverters. See the online manual below for a list of compatible MultiPlus and Quattro inverters.

Lithium iron phosphate technology (LiFePO4).
This technology offers maximum safety, durability and performance.

Easy handling and installation

Thanks to the modular design and simple battery assembly, installation can be handled by one technician.

Technical specifications:

Usable capacity per LVS module: 4.0 kWh
Rated voltage: 51.2 V
Max. output current: LVS 4- 65A, LVS 8- 130A , LVS 12- 195A, LVS 16- 250A, LVS 20- 250A, LVS 24- 250A.
Operating voltage range: 40-57.6V
Operating temperature: -10°C to +50°C
Communication: CAN / RS485
Return energy efficiency:>=95%
Certification: VDE2510-50 / IEC62619 / CE / CEC / UN38.3
Degree of protection: IP55
Application: ON Grid / ON Grid + Backup / OFF Grid
Dimensions: 722 x 370 x 312mm
Weight: 45 kg

Warranty: 10 year manufacturer's warranty for residential installations up to 50kWh and 5 year warranty for commercial projects over 50kWh - see warranty documents.

Please refer to the attached technical data sheet and manual for further details.
