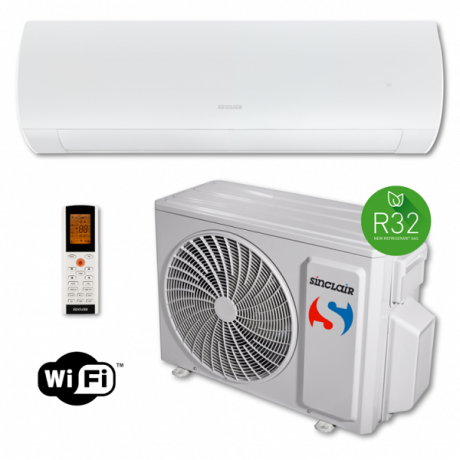

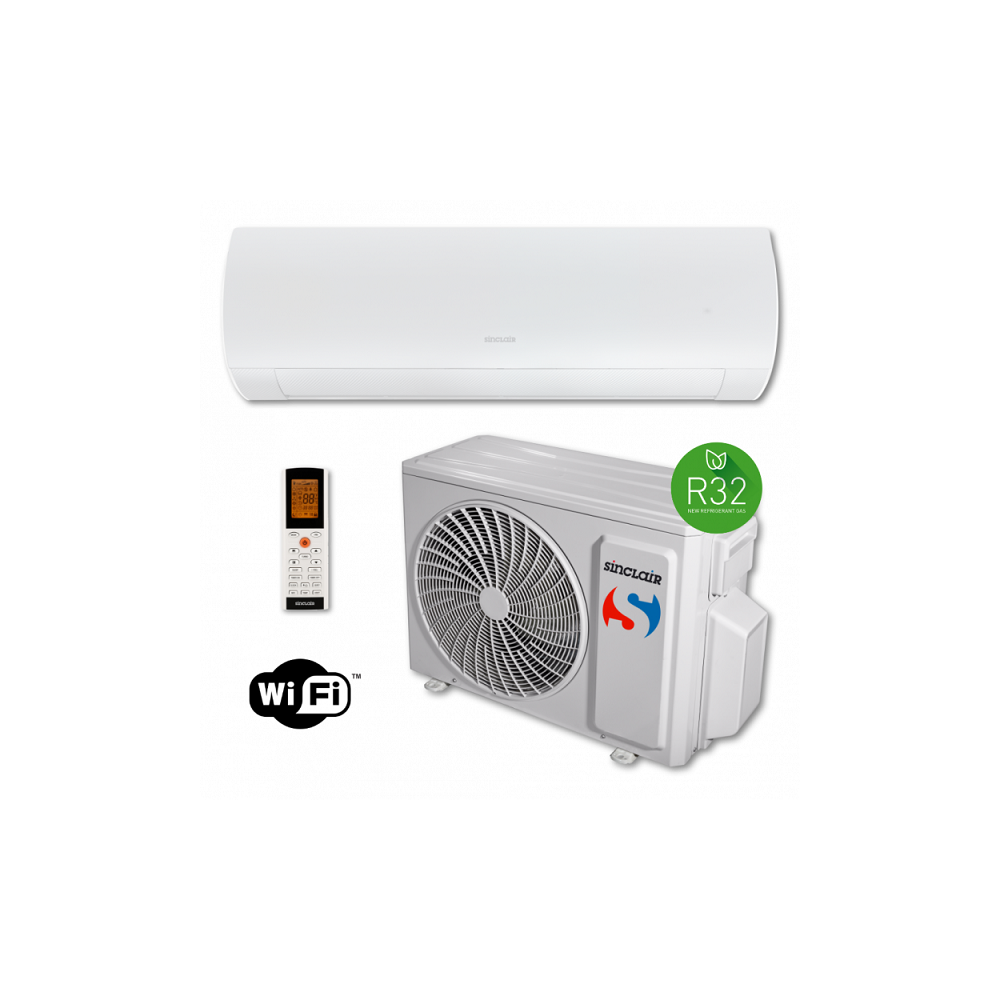

Set Sinclair Terrel 13 white + wifi , split wall air conditioner

Data sheet

Power input (Cooling/Heating)

0,96 / 0,95kW

Dehumidification performance (-)

1,4l / h

Refrigerant / quantity / eq. CO2 (-)

R32 / 0,57 / 0,38type / kg / t

Operating temperature range (Cooling)

-15 ~ 50°C

Operating temperature range (Heating)

- 25 ~ 30°C

Performance (Cooling/Heating)

3,5 (1,0–3,8) / 3,8 (0,9–4,7)kW

Power supply (To outdoor unit)

220 - 240 / 1 / 50V / Ph / Hz

Max. power consumption (Cooling / Heating)

1,55kW

Current (Cooling/Heating)

4,3 / 4,6A

Max. current (Cooling/Heating)

6,9A

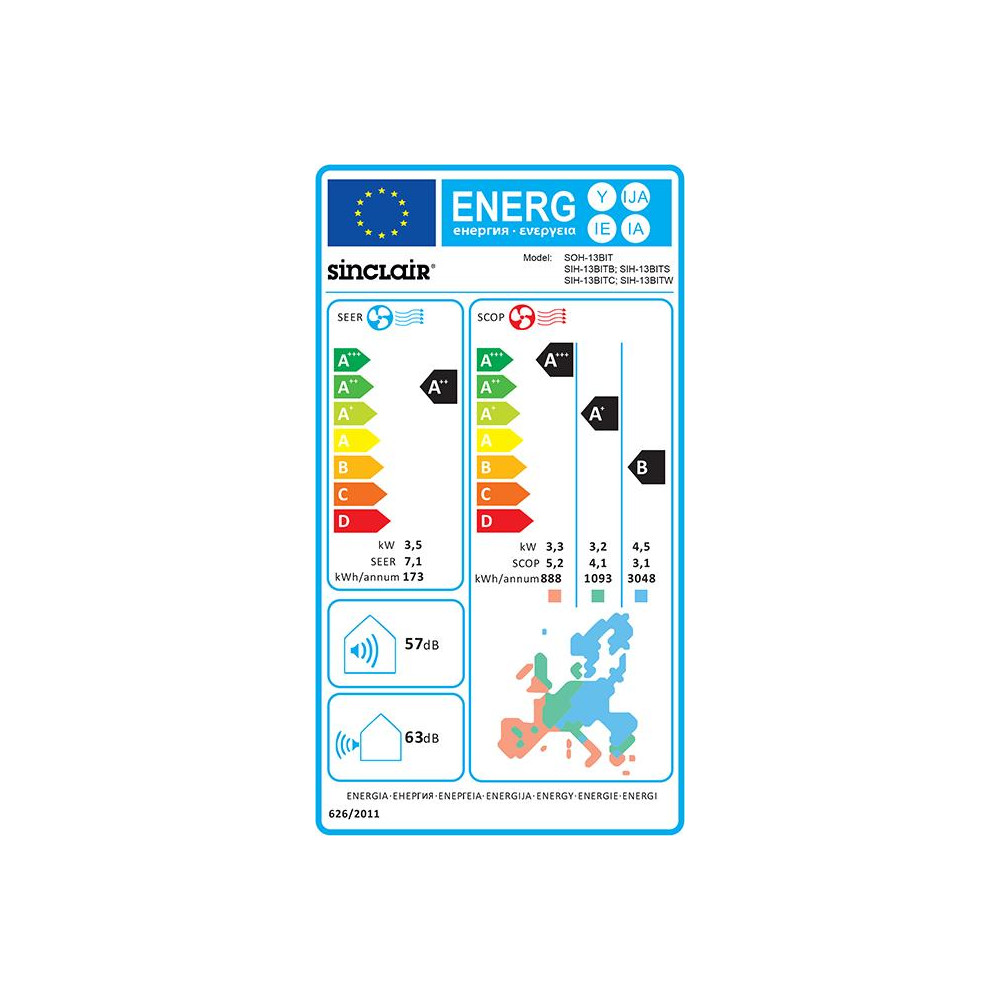

Energy class (Cooling/Heating (A, W, C) *)

A++ / (A+, A+++, B)-

Pdesign (Cooling / Heating)

3,5 / 3,2kW

SEER / SCOP (-)

7,1 / 4,1W / W

Annual electricity consumption (Cooling / Heating)

173 / 1093kWh

Air flow (Indoor unit)

700 / 650 / 600 / 540 / 480 / 420 / 360m3 / h

Air flow (Outdoor unit)

1950m3 / h

Sound pressure level in 1 m (Indoor unit)

42 / 38 / 35 / 32 / 29 / 27 / 25dB(A)

Sound pressure level at 1 m (Outdoor unit)

52dB(A)

Sound power level (Indoor unit)

57 / 50 / 47 / 44 / 41 / 39 / 37dB(A)

Sound power level (Outdoor unit)

63dB(A)

Refrigerant top-up (-)

16g / m

Piping - Liquid (Diameter)

1/4 / 6inch / mm

Pipes - gas (Diameter)

3/8 / 9,5inch / mm

Precharged with refrigerant for the length of the pipe (-)

5m

Min. / Max. pipe length (-)

3 / 15m

Max. elevation (-)

10m

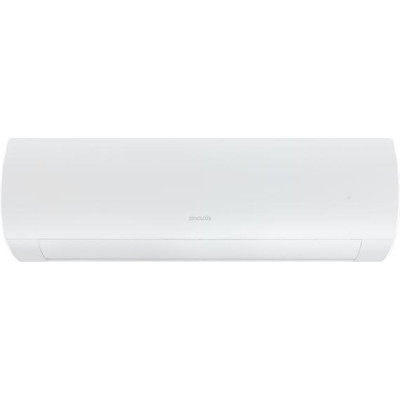

Dimensions (W x H x D) (Indoor unit)

889 × 294 × 212mm

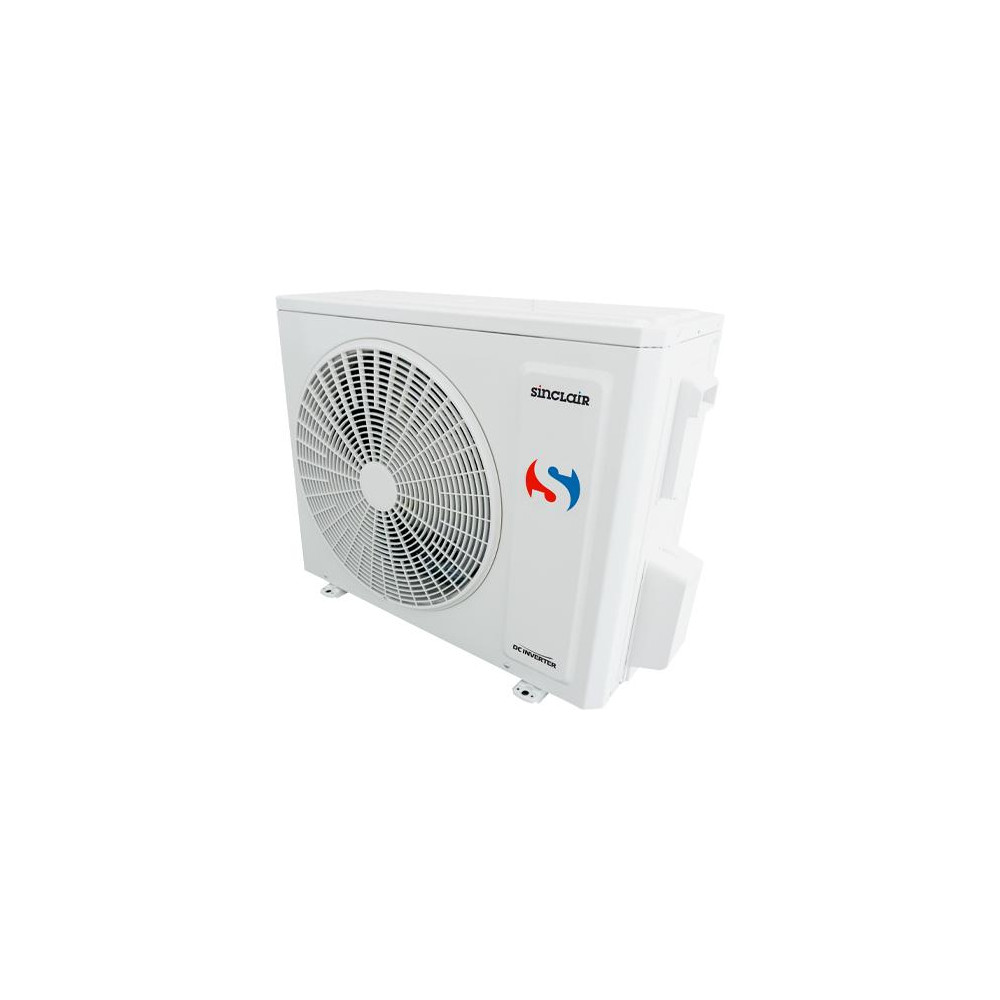

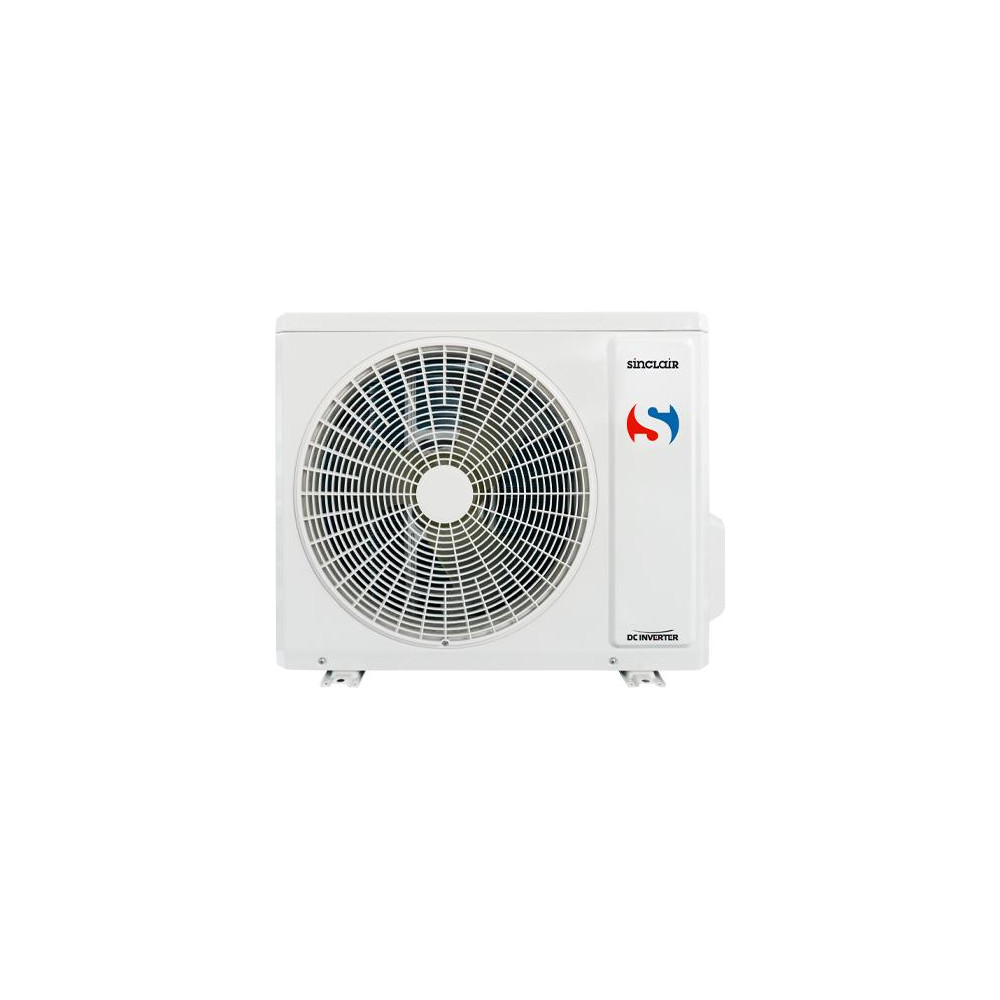

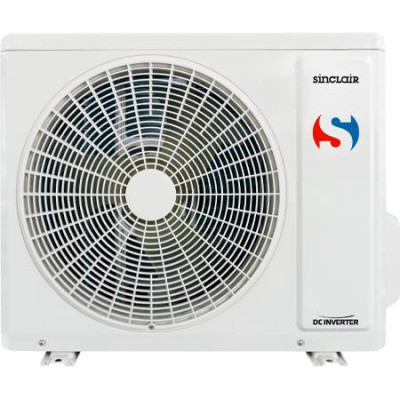

Dimensions (W x H x D) (Outdoor unit)

732 × 555 × 330mm

Package Dimensions (W x H x D) (Internal Unit)

940 × 365 × 284mm

Package dimensions (W x H x D) (Outdoor unit)

794 × 615 × 376mm

Net/Gross Weight (Internal Unit)

11,0 / 13,0kg

Net/Gross Weight (Outdoor Unit)

24,5 / 27,0kg

Adjustable temperature range (-)

16 ~ 30°C
