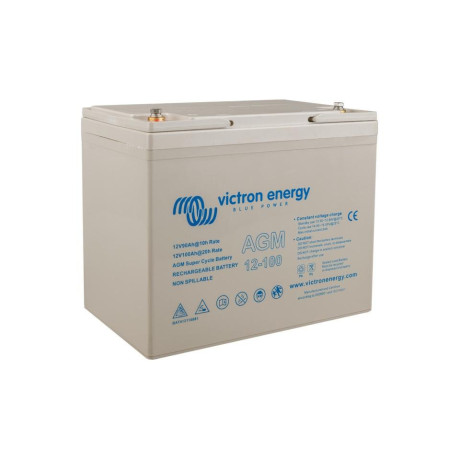

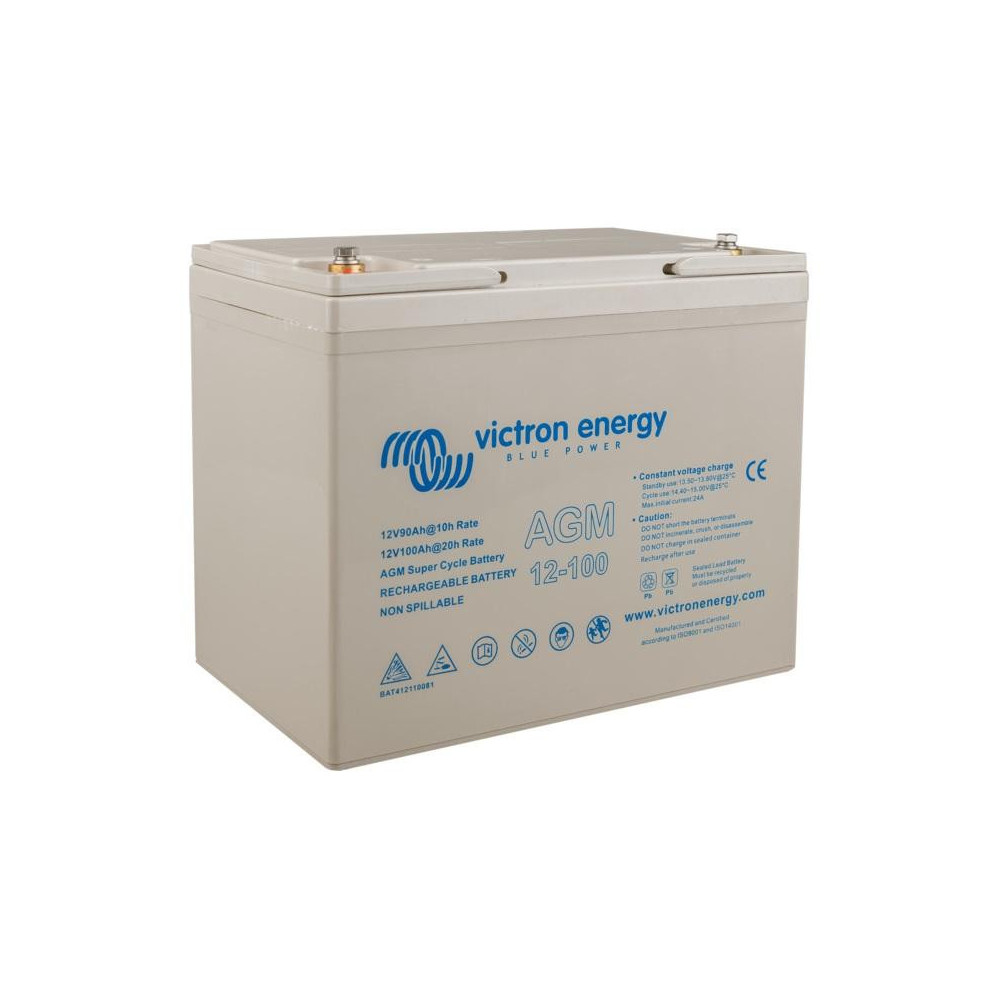

Solar battery Victron Energy AGM Super Cycle 100Ah
The Super Cycle battery is suitable for smaller battery systems where more frequent deep discharges are required. The paste of the positive plates is less sensitive to softening, even in the case of repeated 100% battery discharge. New additives in the electrolyte reduce sulphation in case of deep discharge.
Secure payments
Pay securely and quickly with PayPal and GoPay.
Product delivery
We offer a wide selection of delivery methods, including personal pickup.
Shipment insurance
Every dispatched parcel is insured against damage.
AGM Super Cycle batteries are the result of the latest developments in battery electrochemistry.
The paste of the positive plates is less sensitive to softening, even in the case of repeated 100% battery discharge. New additives in the electrolyte reduce sulphation in case of deep discharge.
Exceptional performance at 100% depth of discharge (DoD)
Tests have shown that the Super Cycle battery can withstand at least three hundred cycles at 100% DoD.
The tests consist of a daily discharge to 10.8V with I = 0.2 C20, followed by approximately two hours of rest in the discharged state, and then a recharge with I = 0.2 C20.
Two hours in a fully discharged state will damage most batteries within 100 cycles, but not the Super Cycle battery.
The Super Cycle battery is recommended for applications where intermittent discharge to 100% DoD or frequent discharge to 60-80% DoD is expected.
Smaller and lighter
Another advantage of the new chemistry is the slightly smaller size and lighter weight compared to standard deep cycle AGM batteries.
When connecting batteries in series, a battery balancer is requiredto ensure an even charge and longer battery life.
Victron Energy's gel batteries are designed for smaller battery and photovoltaic off-grid applications (islanded applications), for example, to power cottages and other off-grid facilities with seasonal operation.
Cyclic lifetime
≥ 300 cycles @ 100% DoD (discharge to 10.8V with I = 0.2 C20 followed by approximately two hours of rest in the discharged state and then recharge with I = 0.2 C20)
≥ 700 cycles @ 60% DoD (three hour discharge with I = 0.2 C20, immediately followed by recharge at I = 0.2C2o)
≥ 1000 cycles @ 40% DoD (two hour discharge at I = 0.2 C20, immediately followed by recharge at I = 0.2 C20)
Specifications:
Capacity: 100 Ah at C20 to 10.8 V
Operating voltage: 12 V
Number of cells: 6
External dimensions (length x width x height): 260x168x215 mm
Weight: 25 kg
Recommended values for charger settings for cyclic operation:
Recommended absorption voltage: 14.2 - 14.6 V
Recommended float voltage: 13.5 - 13.8 V
Recommended storage voltage: 13.2 - 13.5 V
Charging currents
- recommended charging current: 10A
- recommended charging current: 10A
- Maximum charging current: 20A
- Maximum discharge current: 20A
Connection screw: M6
