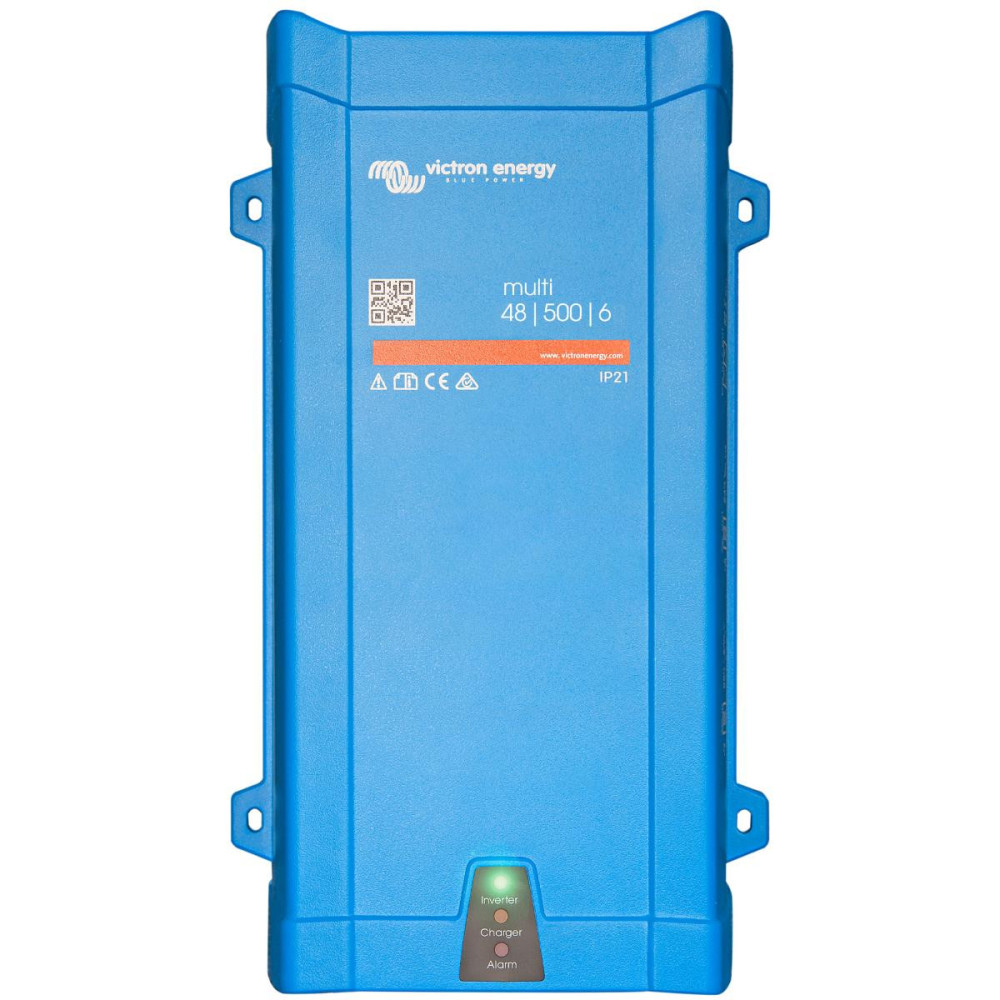

Victron Energy Multiplus 48V/500VA/6A-16A inverter/charger

MultiPlus is a high-performance sine wave voltage converter and sophisticated battery charger with adaptive charging technology and high-speed AC transfer.Â

Key Features:

Parallel operation and three-phase operation
Up to six MultiPlus units can operate in parallel to achieve higher power output. In addition to the parallel connection, three units can be configured for three-way access.

PowerControl function
Using the multi-function control panel, the maximum current of the generator or the bypass connection can be set while the AC power supply is engaged.

PowerAssistÂ
This feature takes the principle of PowerControl to a higher level. It allows the MultiPlus to draw power from an alternative power source that compensates from the battery. When the power is low, the power reserve is used to recharge the battery.

Four-stage adaptive charger and dual battery charging
The main input provides a more powerful battery charging system using an advanced adaptive charging system. The software fine-tunes the three-stage automatic process to suit the battery condition and adds a fourth stage for a long float charge period. In addition, the MultiPlus will charge a second battery using a non-continuous maintenance charging step designed for the main engine or generator starter battery (12 and 24V model only).

High starting power
Necessary for starting high voltage devices, such as power converters for LED bulbs, halogen bulbs or electric lights.

Search mode
When the Search mode is switched on, the power consumption of the switch in idle operation is reduced by about 70%. In this mode, the MultiPlus switches off in inverter mode when operating at low or very low load and switches on every two seconds for a short period of time. If the input current exceeds the set level, the controller will continue to operate, if not, it will turn off again.

Programmable relay
In the previous setting, the programmable relay is set as an alarm relay, that is, The relay will stop being energized in the event of an alarm or pre-alarm (the controller is too high, the input ripple is too high, the battery voltage is too low, etc.).

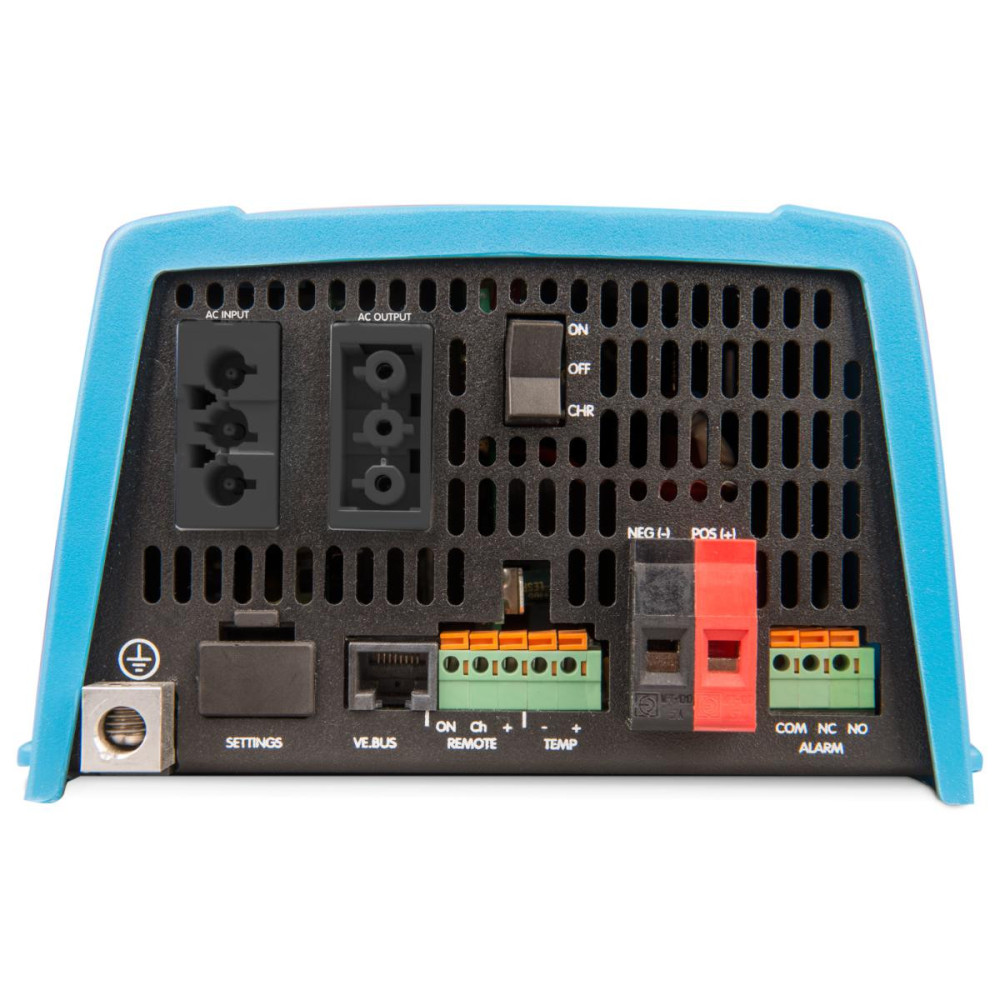

Switching the charger on/off/on
Three-pin connector.

Configuration, monitoring and control of the system at the site
Once installed, the MultiPlus is ready to use.
Some settings can be changed using DIP switches.
500/800/1200 VA models: dilator switch / battery charger / battery voltage / frequency converter / search mode.
1600/2000 VA models: battery charger / search mode.
For more settings use VE-Config or VE.Bus Smart dongle.

Remote configuration and monitoring
Install Cerbo GX or other GX device to connect to the internet. Operational data can be cleaned and displayed on the VRM (Victron Remote Management) website free of charge.
Once connected to the Internet, the systems can be accessed remotely and settings changed.

Technical parameters:

• input voltage: 230 VAC ± 2%, frequency: 50 Hz ± 0.1%.
• input voltage: 187-265 VAC, frequency: 45-65 Hz
• continuous power at 25ºC: 500 VA / 430 W
• Peak power: 900 W
• max. voltageinnost: 92%
• self-consumption: max. 7 W
• self-consumption in âSearchâ mode: 3 W
• Operating temperature range: -40 to +65°C (with the possibility of forced cooling by a fan)
• Humidity (non-condensing): max. 95%
• weight: 4.4 kg
• Dimension: 311 x 182 x 100 mm

Victron Energy products are guaranteed by the manufacturer for 5 years.
