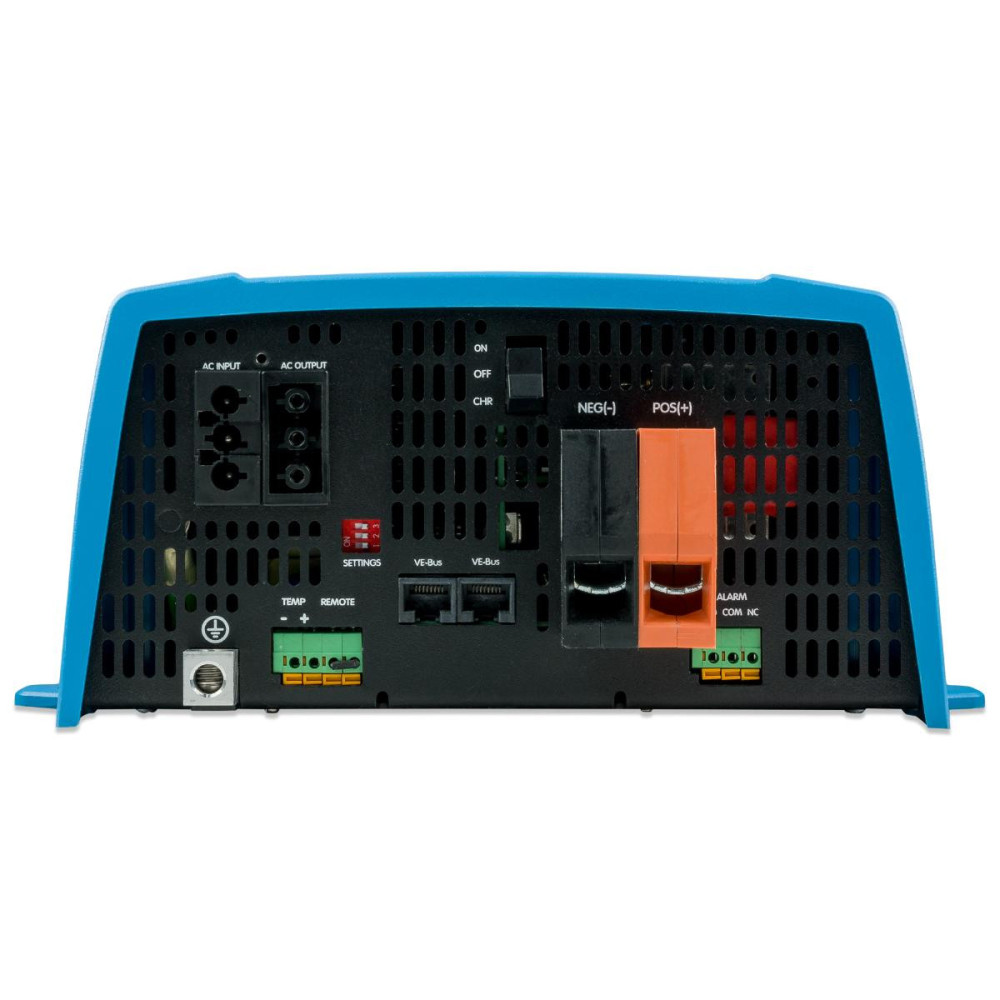

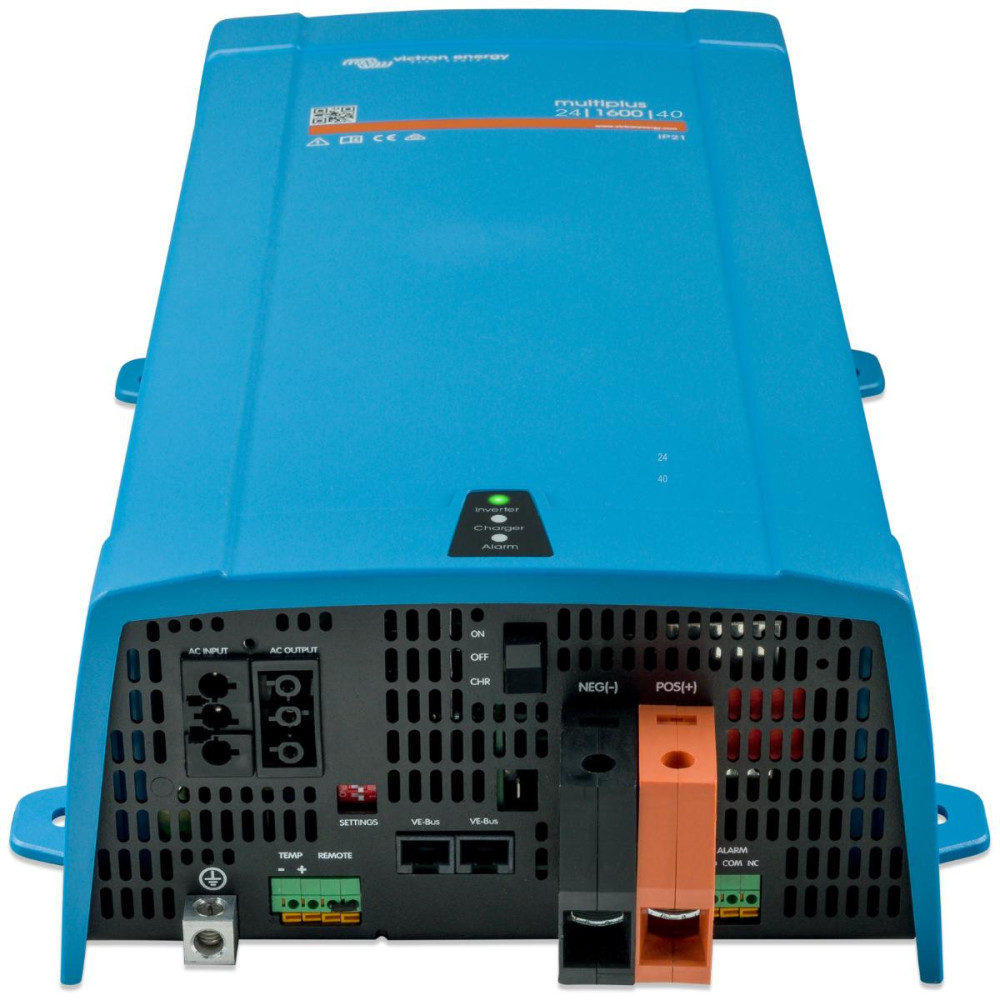

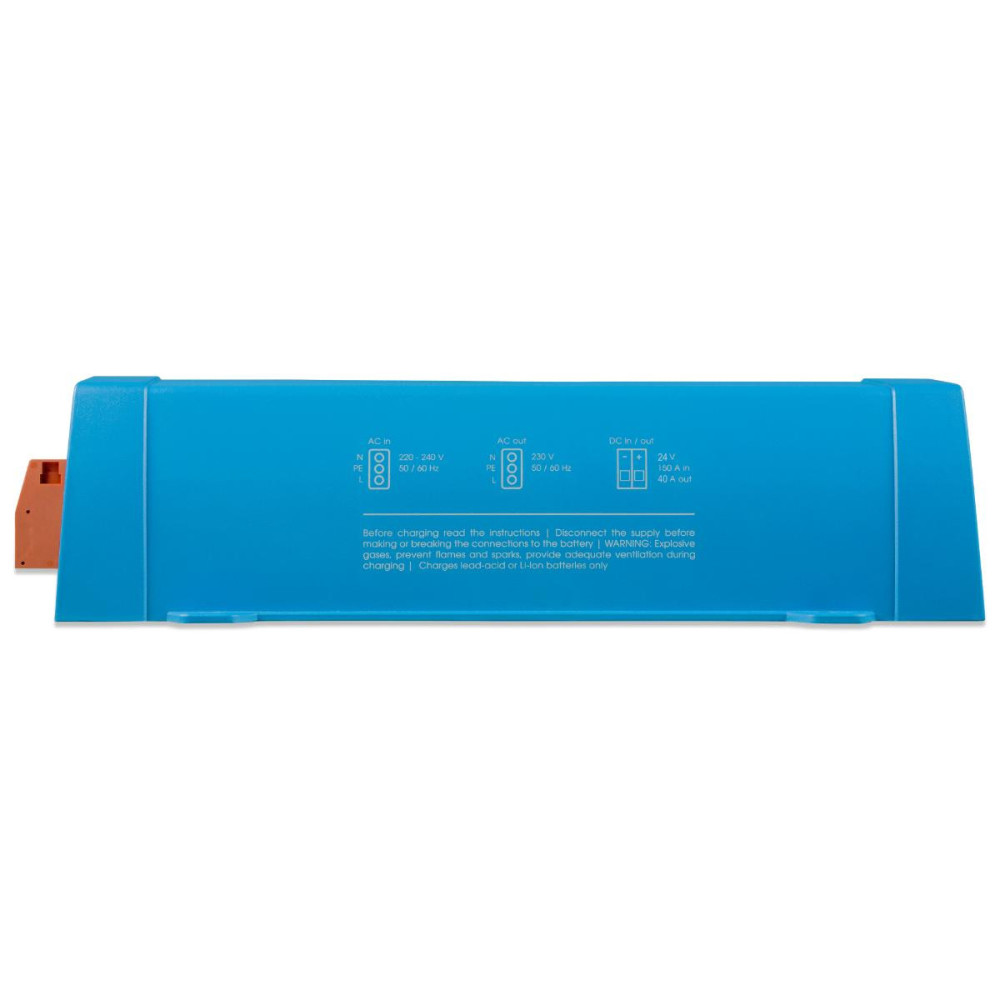

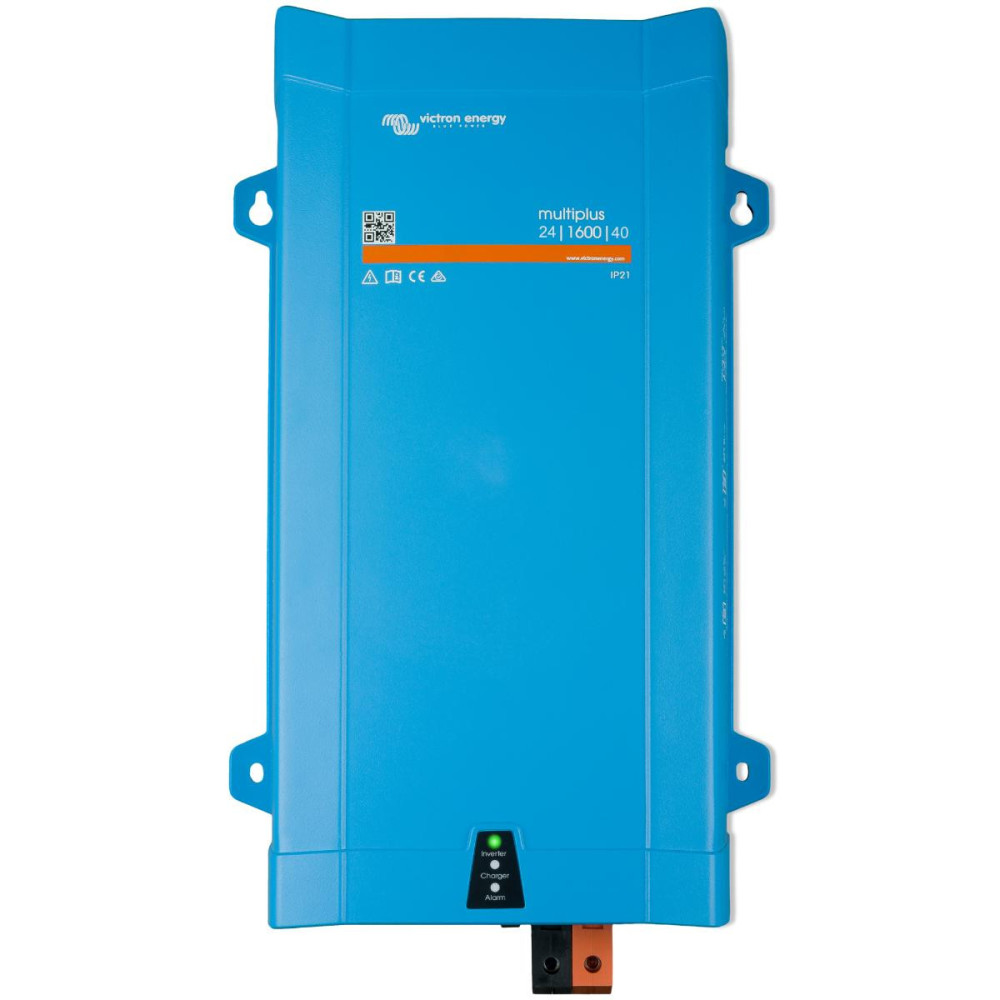

Victron Energy Multiplus 24V/1600VA/40A-16A inverter/charger

MultiPlus is a powerful sine wave voltage converter and sophisticated battery charger with adaptive charging technology and high-speed AC switch.

Key Features:

Parallel operation and three-phase operation
For higher performance, up to six MultiPlus units can operate in parallel. In addition to the parallel connection, three units can be configured for three-phase output.

PowerControl function
The multi-function control panel can be used to set the maximum generator or shore connection current to prevent overloading of AC sources.

PowerAssist function
This function takes the PowerControl principle to the next level. It allows the MultiPlus to increase the power of the alternate power source that it is compensating from the battery. When the load is reduced, the reserve power is used to recharge the battery.

Four-Stage Adaptive Charging and Dual Battery Charging
The main output provides powerful battery charging using an advanced "adaptive charging" system. The software fine-tunes the three-stage automatic process to suit the battery condition and adds a fourth stage for long float charging periods. In addition, MultiPlus will charge a second battery using an independent maintenance charge output designed for the main engine or generator starter battery (12 and 24V models only).

High Starting Power
Needed to start high starting loads such as power inverters for LED bulbs, halogen bulbs or power tools.

"Search"mode
When "Search" mode is enabled, the inverter's power consumption in idle operation is reduced by about 70%. In this mode, the MultiPlus will switch off in the event of no or very low load when operating in inverter mode and switch on every two seconds for a short period of time. If the output current exceeds the set level, the inverter will continue to operate, if not, it will switch off again.

Programmable relay
By default, the programmable relay is set as an alarm relay, meaning that the relay will stop energizing in the event of an alarm or pre-alarm (inverter overheated, input ripple too high, battery voltage too low, etc.).

Remote on/off/on charger
Three-pole connector.

On-site system configuration, monitoring and control.
After installation, the MultiPlus is ready to use.
Some settings can be changed with DIP switches.
500/800/1200 VA models: remote switch / battery charging voltage / inverter frequency / "Search" mode.
1600/2000 VA models: battery charging voltage / "Search" mode.
For more settings, use VE-Config or VE.Bus Smart dongle.

Remote configuration and monitoring
Install Cerbo GX or other GX device for internet connection. Operational data can be stored and viewed on the VRM (Victron Remote Management) website free of charge.
Once connected to the internet, systems can be accessed remotely and settings changed.

Technical parameters:

• Output voltage: 230 VAC ± 2%, frequency: 50 Hz ± 0.1%.
• input voltage: 187-265 VAC, frequency: 45-65 Hz
• continuous power at 25ºC: 1600 VA / 1300 W
• Peak power: 2800 W
• max. power factor94%
• self-consumption: max. 9 W
• self-consumption in "Search" mode: 3 W
• Operating temperature range: -40 to +65 °C (with forced cooling fan option)
• Humidity (non-condensing): max. 95%
• weight: 10.2 kg
• Size: 470 x 265 x 120 mm

Victron Energy products are guaranteed by the manufacturer for 5 years.
