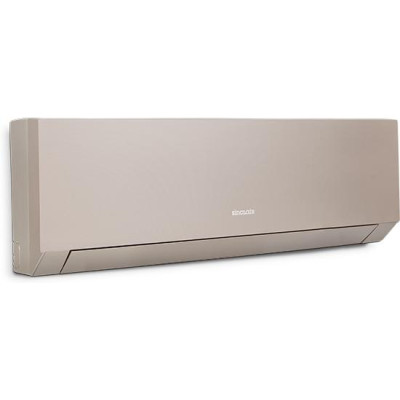

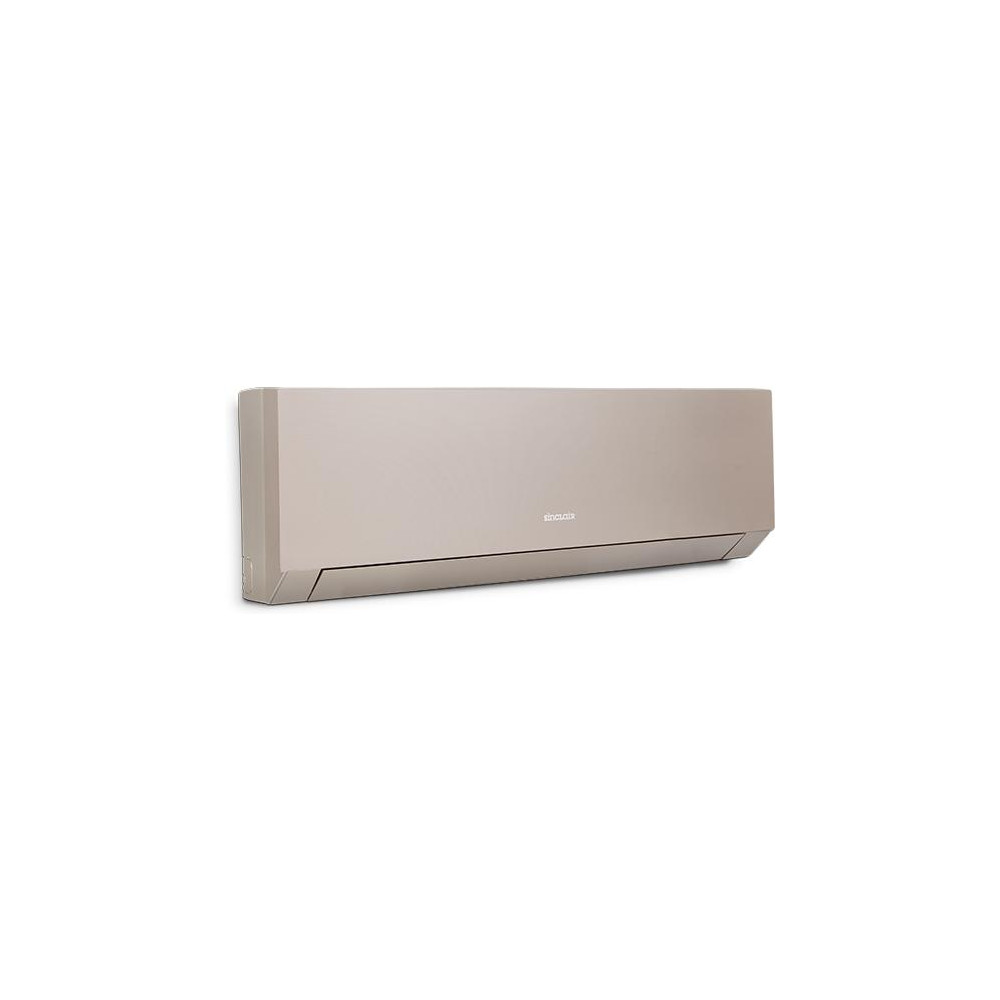

Sinclair Marvin 18 in colour + wifi , split wall air conditioner - including installation

Data sheet

Power input (Cooling/Heating)

1,53 / 1,39kW

Dehumidification performance (-)

1,9l / h

Refrigerant / quantity / eq. CO2 (-)

R32 / 0,85 / 0,57type / kg / t

Operating temperature range (Cooling)

-15 ~ 50°C

Operating temperature range (Heating)

- 25 ~ 30°C

Performance (Cooling/Heating)

5,3 (0,9–6,3) / 5,4 (1,1–7,0)kW

Power supply (To outdoor unit)

220 - 240 / 1 / 50V / Ph / Hz

Max. power consumption (Cooling / Heating)

2,4kW

Current (Cooling/Heating)

7,2 / 6,3A

Max. current (Cooling/Heating)

10,5A

Pdesign (Cooling / Heating)

5,3 / 4,2kW

SEER / SCOP (-)

7,3 / 4,2W / W

Air flow (Indoor unit)

1000 / 850 / 760 / 650 / 580 / 520 / 450m3 / h

Air flow (Outdoor unit)

2200m3 / h

Sound pressure level in 1 m (Indoor unit)

45 / 42 / 40 / 37 / 34 / 29 / 26 / 23dB(A)

Sound pressure level at 1 m (Outdoor unit)

56dB(A)

Sound power level (Indoor unit)

60 / 55 / 53 / 50 / 47 / 42 / 39dB(A)

Sound power level (Outdoor unit)

65dB(A)

Refrigerant top-up (-)

16g / m

Piping - Liquid (Diameter)

1/4 / 6inch / mm

Pipes - gas (Diameter)

1/2 / 12inch / mm

Precharged with refrigerant for the length of the pipe (-)

5m

Min. / Max. pipe length (-)

3 / 25m

Max. elevation (-)

10m

Dimensions (W x H x D) (Indoor unit)

993 × 311 × 222mm

Dimensions (W x H x D) (Outdoor unit)

802 × 555 × 350mm

Package Dimensions (W x H x D) (Internal Unit)

1055 × 385 × 298mm

Package dimensions (W x H x D) (Outdoor unit)

872 × 398 × 620mm

Net/Gross Weight (Internal Unit)

12,5 / 15,0kg

Net/Gross Weight (Outdoor Unit)

31,5 / 34,0kg

Adjustable temperature range (-)

16 ~ 30°C
